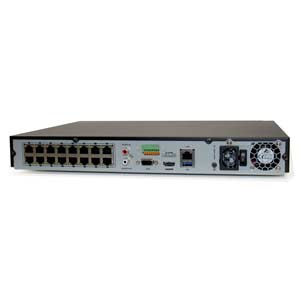

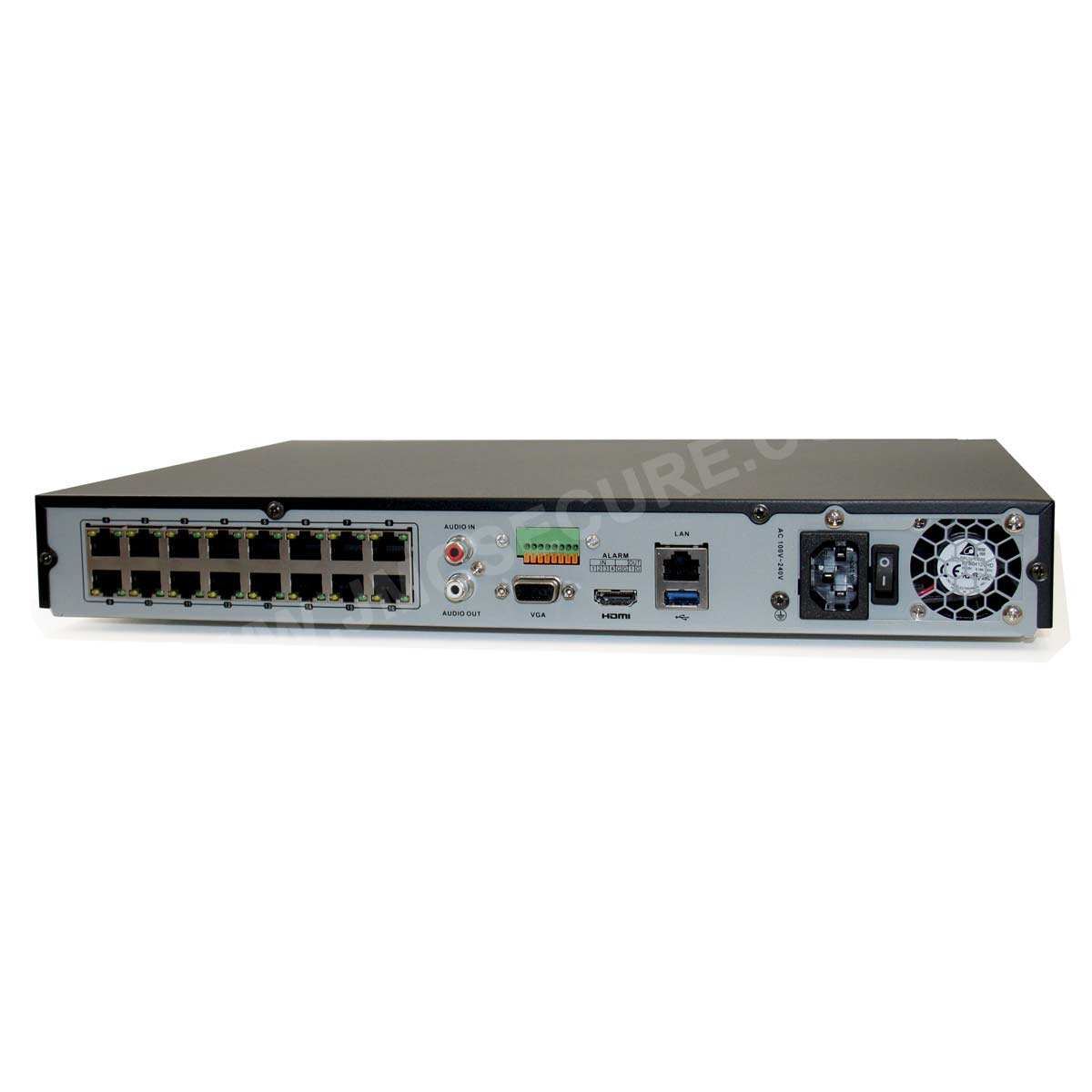

DS-7616NI-I2-16P Hikvision 16 Channel UHD 4K+ Network IP Video Recorder with 16 PoE Ports

Product ID DS-7616NI-I2-16P

0 reviews | Write a review

Trade Only Item

In Stock 0

DS-7616NI-I2-16P Hikvision 16 Channel UHD 4K+ Network IP Video Recorder with 16 PoE Ports

DS-7616NI-I2-16P Hikvision 16 Channel UHD 4K+ Network IP Video Recorder with 16 PoE Ports #1

DS-7616NI-I2-16P Hikvision 16 Channel UHD 4K+ Network IP Video Recorder with 16 PoE Ports #2

Up Grade HDD

Recording times (in Days) with 2000GB HDD

Cameras Connected	2MP (1080P HD) resolution		5MP resolution		8MP resolution
Frame rate (per channel)	15fps	25fps	15fps	25fps	15fps	25fps
2 cameras	73	44	32	19	19	11
4 cameras	36	22	16	9	9	5
8 cameras	18	11	8	4	4	2
16 cameras	9	5	4	2	2	1

The above is based on a 2000Gb HDD in H.265, other hard drives will record for different periods of time for example a 4000Gb would record for double the above times and a 1000Gb would record for half the above times.

Recording times are only a guide and will vary dependent on the actually scene being recorded.

Trade Only Item

Free Shipping

Summary
Full Spec

About the DS-7616NI-I2-16P

The DS-7616NI-I2-16P is a Hikvision 16 channel NVR and 16 built in PoE ports.

Each camera plugs straight in with one network cable for power and video. It records cameras up to 12MP, takes 2 hard drives (not included) and has HDMI and VGA outputs. It works with the free Hik-Connect app.

Key Features

16CH Video Input
Up to 12 Megapixels resolution recording
160Mbps incoming bandwidth
Up to 2 SATA interfaces
HDMI and VGA Output
16 independent PoE network interfaces
Support H.265/H.264/MPEG4 video formats

Download

Manufacturers Spec Sheet (PDF)

Compatibility

IP: Any Hikvision IP Camera

Video/Audio Input
IP video input	16CH
Two-way audio input	1CH, RCA (2.0 Vp-p, 1 kΩ)
Network
Incoming bandwidth	160Mbps
Outgoing bandwidth	256Mbps
Remote connection	128
Video/Audio Output
HDMI output	1-ch, resolution: 4K(38402160)/60Hz, 4K(38402160)/30Hz, 19201080P/60Hz, 16001200/60Hz, 12801024/60Hz, 1280720/60Hz, 1024*768/60Hz
Recording resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio output	1-ch, RCA (Linear, 1 kΩ)
Synchronous playback	16CH
VGA Output	1-ch, resolution: 19201080P/60Hz, 12801024/60Hz, 1280720/60Hz, 1024768/60Hz
Decoding
Live view / Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability	4-ch@8MP,16-ch@1080P
Hard Disk
SATA	2 SATA interface
Capacity	Up to 6TB capacity for each HDD
External Interface
Network interface	1 x RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface	RS-232
USB interface	Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
Alarm Input	4-ch
Alarm Output	1-ch
PoE
Interface	16 independent 10 /100 Mbps PoE Ethernet interfaces
Max. Power	200W
Supported Standard	AF and AT
General
Power supply	100 to 240 VAC, 50 to 60 Hz
Consumption	Max 15W (without hard disk and POE)
Working temperature	-10 °C ~ +55 °C
Working humidity	10% ~ 90%
Chassis	380 chassis
Dimensions (W x D x H)	380 × 290 × 45 mm
Weight	Approx. 3Kg (without hdd)
