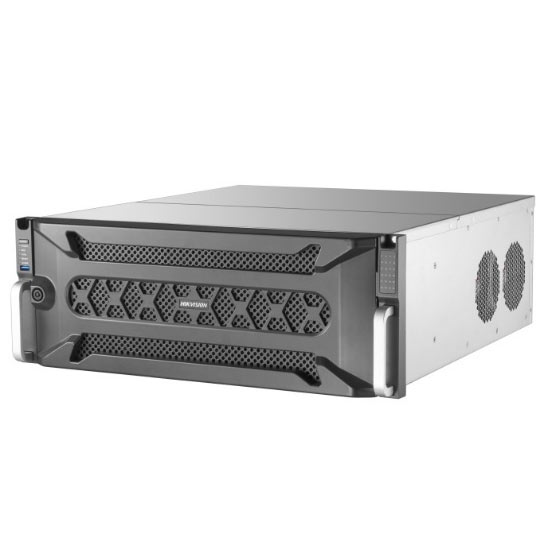

DS-96256NI-I24-H Hikvision 256 Channel UHD 4K Super NVR (Non PoE)
Product ID DS-96256NI-I24-H

DS-96256NI-I24-H Hikvision 256 Channel UHD 4K Super NVR (Non PoE)

Trade Only Item
In Stock 1
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • Up to 256 channel IP cameras can be connected
  • Up to 768 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 2 HDMI interfaces (different source), 1 VGA interfaces, and 1 decoding board
  • 24 HDD can be used for continuous video recording
  • Redundant power supply to improve system stability
  • Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

Download

Manufacturers Spec Sheet (PDF)

Compatibility

  • IP: Any hikvision IP Camera
Video/Audio Input
IP video input 256CH
Network
Incoming /outgoing bandwidth 768Mbps / 768 Mbps
Incoming /outgoing bandwidth (RAID mode) 768Mbps / 768 Mbps
TLS outgoing bandwidth 128 Mbps, or 64 Mbps (when RAID is
Video/Audio Output
HDMI output Two independent HDMI outputs of 4K resolution . Resolution: 4K (4096 × 2160), 4K (3 840 × 2160) /30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
VGA output 1 ch . Resolution: 1080 p (1920 × 1080)/60Hz, UXGA (160 0 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720 p 1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
Recording resolution 12MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio output 1-ch, RCA (Linear, 1kΩ)
Synchronous playback 16CH
Decoding
Live view / Playback 12MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 3 ch@12 MP (30fps), 5 ch@8 MP (30fps), 6 ch@6 MP (30fps), 10 ch@4 MP (30fps), 20 ch@1080p (30 fps)
Hard Disk
SATA 24 SATA interfaces supporting hot plug
Capacity Up to 10TB capacity for each HDD
RAID
RAID Type RAID0, RAID1, RAID5, RAID 6, and RAID10
External Interface
Network interface 4, RJ45 10M/100M/1000M s elf adaptive Ethernet interface
Serial Interface RS 232; RS 485; Keyboard
USB interface Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm Input 16-ch
Alarm Output 8-ch
PoE
Interface n/a
General
Power supply 100 to 240 VAC, 550W
Consumption Max 140W (without hard disk)
Working temperature 0 °C ~ +50 °C
Working humidity 10% ~ 90%
Dimensions (W x D x H) 447 × 528 × 172mm (17.6 × 20.8 × 6.8inch )
Weight Approx. 23Kg (without hdd)

dvr dimensions
