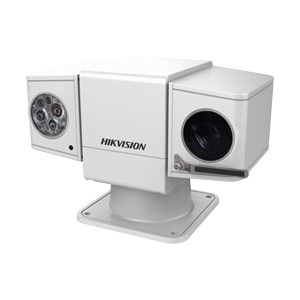

Hikvision 2MP 23X DarkFighter IR Network Positioning System with 150m IR
Product ID DS-2DY5223IW-AE

Hikvision 2MP 23X DarkFighter IR Network Positioning System with 150m IR

Trade Only Item
In Stock 6
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • Up to 1920 × 1080 resolution
  • Color:0.002Lux @ (F1.5, AGC ON),B/W:0.0002Lux @(F1.5, AGC ON)
  • 23 × optical zoom, 16 × digital zoom
  • Covering a vertical area with tilt angle from -90° to 90°
  • 24 VAC & Hi-PoE
  • DarkFighter Technology
  • IP66

Download

Manufacturers Spec Sheet (PDF)

Specification
Camera Module
Image Sensor 1/1.9" Progressive Scan CMOS
Min. Illumination Color:0.002Lux @ (F1.5, AGC ON),B/W:0.0002Lux @(F1.5, AGC ON)
Shutter Time 1 to 1/10,000 s
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Gain Auto/Manual
Day & Night ICR
Digital Zoom 16 ×
Privacy Mask Yes
Focus Mode Auto/Semi-automatic/Manual
WDR true WDR
Lens
Focal Length 5.9-135.7mm, 23 × Optical
Field of View Horizontal field of view: 59.8° to 3.0° (wide-tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.5 to F3.4
IR
IR Distance up to 150m
Smart IR Yes
PTZ
Movement Range (Pan) 360° endless
Pan Speed 0.1°/s to 200°/s
Movement Range (Tilt) From -90° to 90°, auto flip
Tilt Speed 0.1°/s to 150°/s
Proportional Zoom Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
Park Action Support
3D Positioning Yes
PTZ Position Display Yes
Preset Freezing Yes
Compression Standard
Video compression H.265+/H.265/H.264+/H.264/MJPEG
Audio compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Smart Features
Event Detection Face detection, Intrusion detection, Line crossing detection, Audio exception detection, Region entrance detection, Region exiting detection
Region of Interest Support 12 areas with adjustable levels
Max. Resolution 1920 × 1080
Main Stream 50Hz: 50fps (1920 × 1080, 1280 × 720)
Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
Network
Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TC P,UDP,IGMP,ICMP,DHCP,PPPoE
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users; 3 user levels: administrator, operator and user
Interface
Alarm Interface 7-ch alarm input/2-ch alarm output
Audio Interface 1-ch audio input
1-ch audio output
Network Interface 1 RJ45 10 M/100 M Ethernet interface, Hi-PoE
RS-485 Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Video Out 1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC connector
General
Power Hi-PoE & 24 VAC, Max. 45W
Working Environment Temperature: -40°C to 65°C (-22°F to 149°F), humidity: ≤ 95%
Protection Level IP66 Standard. Lightning protection, surge protection and voltage transient protection

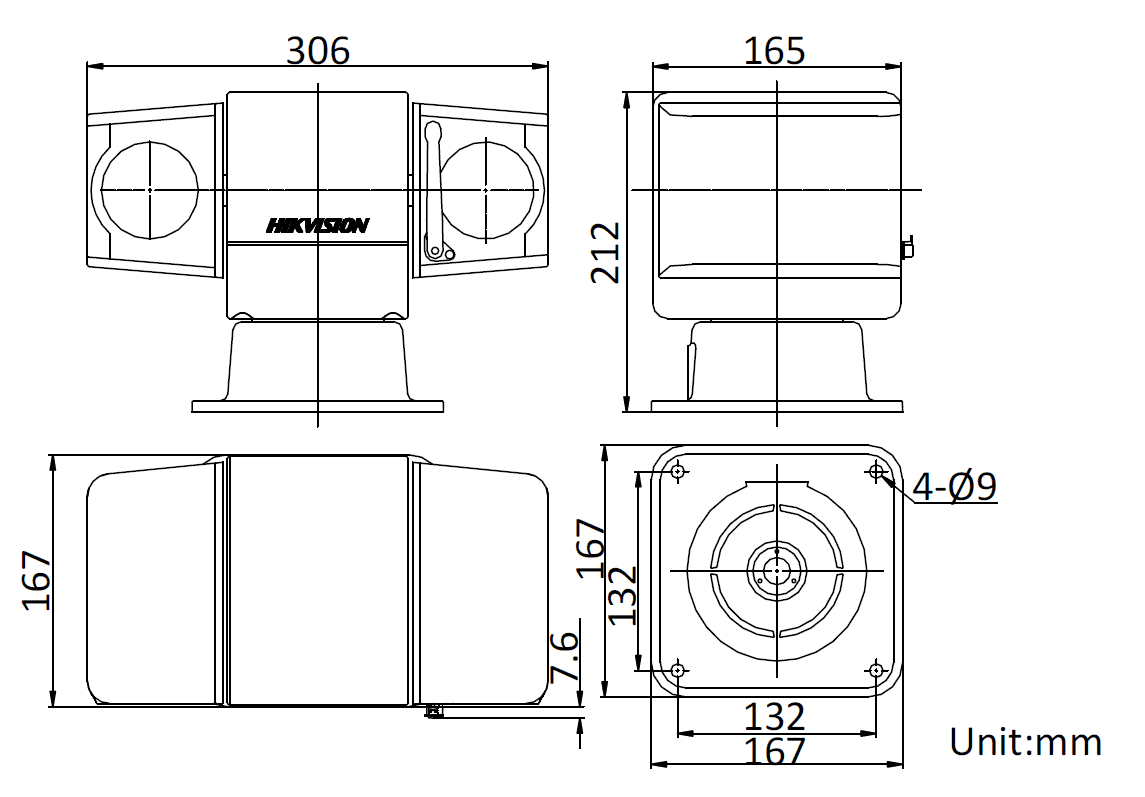

Dimension 306 mm × 167 mm × 212 mm
Weight Approx. 7.8 kg
