| Specification |
|---|
| Camera Module |
|---|
| Image Sensor |
1/1.2" progressive scan CMOS |
| Min. Illumination |
Color: 0.002 Lux @(F1.6, AGC ON), B/W: 0.0002 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Time |
1 to 1/30,000 s |
| Day & Night |
IR Cut Filter |
| Zoom |
42x optical, 16x digital |
| Max. Resolution |
3840 × 2160 |
| Focus Mode |
Auto/Semi-automatic/Manual |
| 3D DNR |
Yes |
| BLC |
Yes |
| HLC |
Yes |
| WDR |
Digital WDR |
| Optical Defog |
Yes |
| EIS |
Yes |
| Regional Exposure |
Yes |
| Regional Focus |
Yes |
| Rapid Focus |
Yes |
| Lens |
|---|
| Focal Length |
7.5mm to 315mm |
| Zoom Speed |
Approx. 7.5 s |
| Field of View |
Horizontal field of view: 60.4° to 1.7° (wide-tele),
Vertical field of view: 36.2° to 0.9° (wide-tele),
Diagonal field of view: 67.8° to 2.2° (wide-tele) |
| Aperture Range |
Max F1.6 |
| IR |
|---|
| IR Distance |
500 m |
| Smart IR |
Yes |
| PTZ |
|---|
| Movement Range (Pan) |
360° endless |
| Pan Speed |
Configurable, from 0.1°/s to 210°/s. Preset speed: 280°/s |
| Movement Range (Tilt) |
From -20° to 90° |
| Tilt Speed |
Configurable, from 0.1°/s to 150°/s. Preset speed: 250°/s |
| Proportional Pan |
Yes |
| Presets |
300 |
| Patrol Scan |
8 patrols, up to 32 presets for each patrol |
| Pattern Scan |
4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory |
Yes |
| Park Action |
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Status Display |
Yes |
| Preset Freezing |
Yes |
| 3D Positioning |
Yes |
| Smart Features |
|---|
| Perimeter Protection |
Intrusion, Line Crossing, Region Entrance, Region Exiting. Support alarm triggering by specified target types (human and vehicle). Reduce mistaken alarm caused by target types such as leaf, light, animal, and flag, etc. |
| Event Detection |
Face detection, unattended baggage detection, object removal detection, audio exception detection |
| Smart Tracking |
Manual tracking, auto tracking (support tracking specified target types such as human and vehicle), event tracking |
| Smart Record |
ANR (Automatic Network Replenishment), Dual-VCA |
| Region of Interest |
Eight fixed region for each stream |
| Video |
|---|
| Main Stream |
50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); |
| Sub-Stream |
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) |
| Third Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
| SVC |
H.264 and H.265 encoding |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Audio Compression |
G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Network Storage |
NAS (NFS, SMB/ CIFS), ANR |
| Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View |
Up to 20 channels |
| User/Host |
Up to 32 users; 3 user levels: administrator, operator and user |
| Security Measures |
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings,
security audit log, TLS 1.3, host authentication (MAC address) |
| Client |
HikCentral, iVMS-4200, Hik-Connect |
| Web Browser |
IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Interface |
|---|
| Alarm |
7-ch alarm input/2-ch alarm output |
| Audio Interface |
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1
output (line out), line level, output impedance: 600 Ω |
| Network Interface |
1 RJ45 10 M/100 M Ethernet interface, Hi-PoE |
| Video Output |
1.0 V[p-p]/75 Ω, PAL, NTSC, BNC connector |
| RS-485 |
Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| General |
|---|
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Power |
24 VAC (Max. 62 W, including max. 12 W for IR and max. 8 W for heater), PoE 802.3 bt
(Max. 51 W, including max. 12 W for IR and max. 8 W for heater) |
| Operating Condition |
Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
| Wiper |
Yes. Rain-sensing auto control |

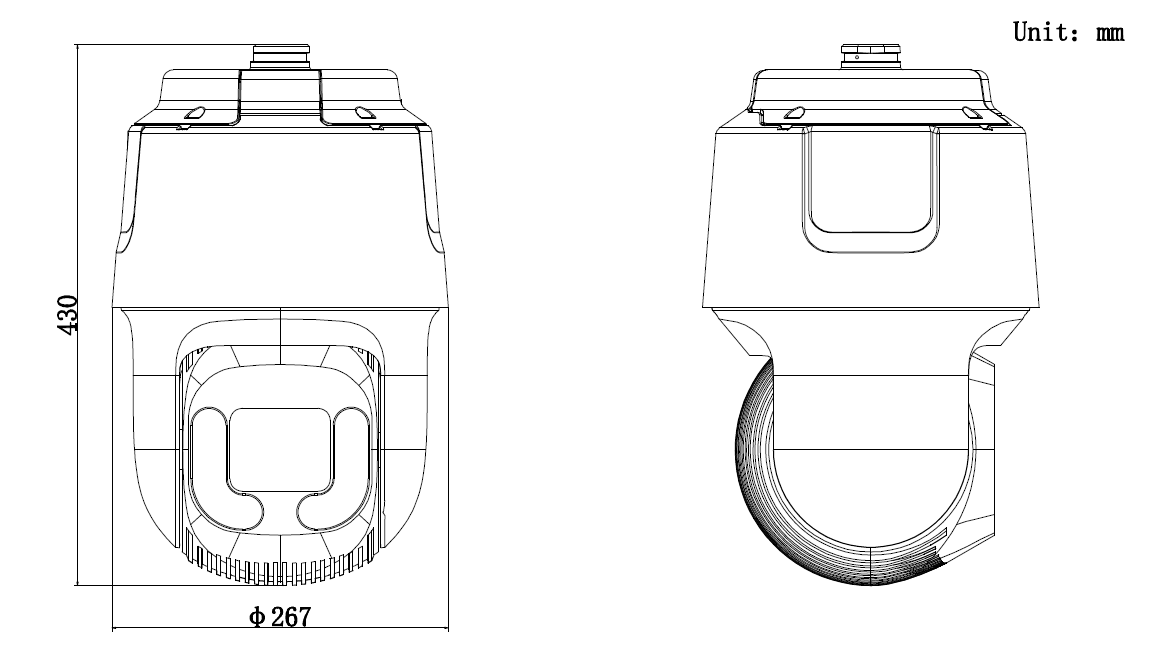

| Dimension |
Φ 267 mm × 430 mm (Ø 10.51" × 16.93") |
| Weight |
Approx. 9.6 kg (21.16 lb.) |
