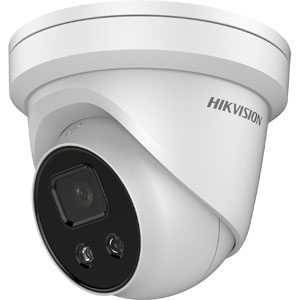

Hikvision AcuSense 8MP Fixed Lens Darkfighter Turret IR Camera with Built In Mic
Product ID DS-2CD2386G2-IU

Hikvision AcuSense 8MP Fixed Lens Darkfighter Turret IR Camera with Built In Mic

Trade Only Item
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec

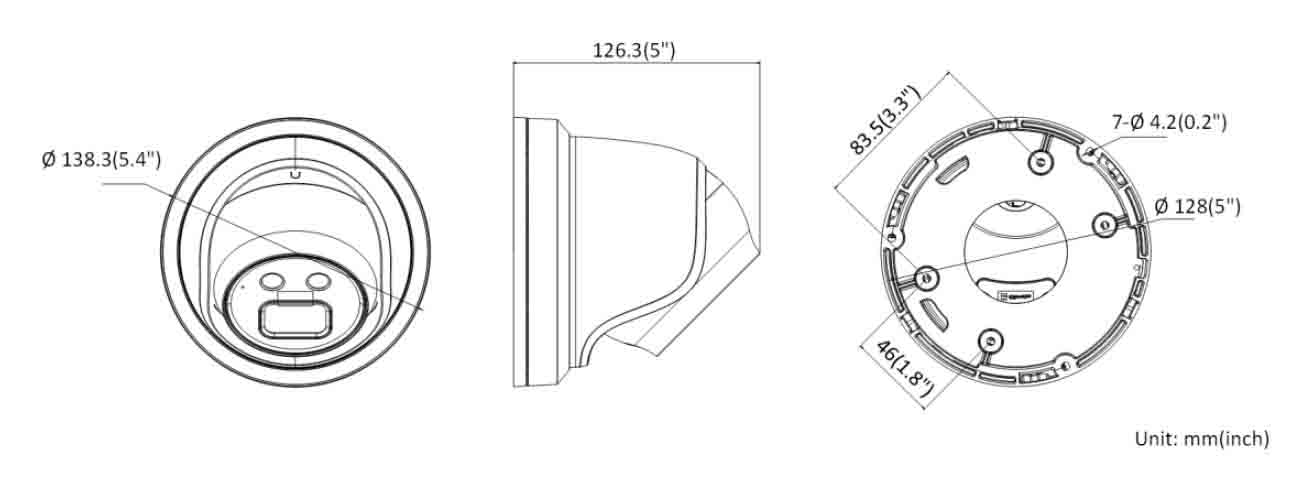

  • Diagram

Key Features

  • 1/2" Progressive Scan CMOS
  • 3840 × 2160 @ 20fps
  • 2.8 fixed lens, FOV: 110.7°
  • 120dB WDR
  • Powered by Darkfighter
  • H.265+, H.265, H.264+, H.264
  • Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
  • Built-in microphone (optional)
  • -I models: IP67, -IU models: IP66
  • Human and vehicle classification alarm based on deep learning.

Download

Manufacturers Spec Sheet (PDF)

Specification
Camera
Image Sensor 1/2" Progressive Scan CMOS
Min. Illumination Color: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
WDR 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed lens, 2.8/4/6 mm
Aperture F1.6
FOV 2.8 mm, horizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131°;
Lens Mount M16
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Video
Max. Resolution 3840 × 2160
Main Stream 50Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520,1920 × 1080, 1280 × 720), 60Hz: 20fps (3840 × 2160, 3072 × 1728), 30fps (2688 × 1520,1920 × 1080, 1280 × 720)
Sub-Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Video Compression Main stream: H.265+/H.264+/H.265/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 16 Mbps
Scalable Video Coding (SVC) H.264 and H.265 encoding support
* When the main stream resolution is 3840 × 2160, max frame rate is 20 fps for all streams.
Audio(-U)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Smart Feature-Set
Smart Event Perimeter Protection: line crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification)
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger capture
Region of Interest 1 fixed region for main stream, sub-stream and third stream
Image Enhancement BLC, HLC, 3D DNR
Image Setting Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users, 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio (-U) Built-in microphone
On-board storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
General
Web Client Language 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter
Reset Reset via reset button on camera body, web browser and client software
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
Material Camera body: metal, trim ring: plastic
Dimensions Camera: Φ 138.3 × 126.3 mm (Φ 5.4" × 5"), With package: 170 × 170 × 150 mm (7" × 7" × 5.9")
Weight Camera: approx. 740 g (1.6 lb.), With package: approx. 1060 g (2.3 lb.)
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA IEC/EN 60950-1)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection Without -U models: Ingress protection: IP67 (IEC 60529-2013)

With -U models: Ingress protection: IP66 (IEC 60529-2013)

* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the same time.
