| Camera |
|---|
| Image Sensor | 1/1.8" progressive scan CMOS |
| Min. Illumination | Color: 0.0014Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360° |
| DNR | 3D DNR |
| Lens |
|---|
| Lens | 2.8mm |
| Auto-Iris | No |
| Aperture | F1.0 |
| Focus | Fixed |
| FOV | 2.8 mm, horizontal FOV: 102°, vertical FOV: 51°, diagonal FOV: 125° |
| Lens Mount | M16 |
| Illuminator |
|---|
| White Light Range | 30m |
| Video |
|---|
| Max. Resolution | 2560 × 1440 |
| Main Stream | 50Hz: 25fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 24fps (2560 × 1440), 30fps(2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Video Compression | Main stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| SVC | Yes |
| Smart Feature-Set |
|---|
| Behavior Analysis | Line crossing detection, intrusion detection |
| Region Of Interest | Support 1 fixed region for main stream |
| Image |
|---|
| Image Enhancement | BLC/3D DNR/HLC |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Day/Night Switch | Day/Night |
| Network |
|---|
| Network Storage | Support micro SD/SDHC/SDXC card (128 G) local storage, NAS (NFS,SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 |
| Interface |
|---|
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| General |
|---|
| Web Client Language | English, Russian, Italian, French, Polish, Portuguese, Spanish, Turkish |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy masks, IP address conflict, flash log |
| Reset | Yes |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F) |
| Power Supply | 12 VDC ± 20%, PoE: 802.3af |
| Power Consumption And Current | 12VDC, 0.5 A, max. 6 W; PoE:(802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7.5 W |
| Material | Metal |
| Interface Protection | IP67 |

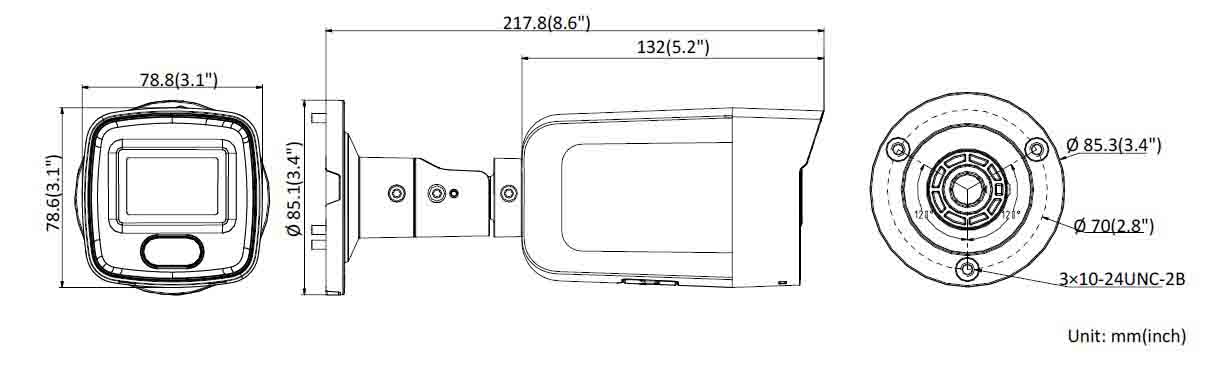

| Camera Dimension | 85 × 85 × 218 mm (3.3" × 3.3" × 8.6") |
| Package Dimension | 315 × 137 × 141 mm (12.4" × 5.4" × 5.6") |
| Camera Weight | 0.710 kg (1.6 lb.) |
| With Package Weight | 1.035 kg (2.3 lb.) |
| Compression Standard |
|---|
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
