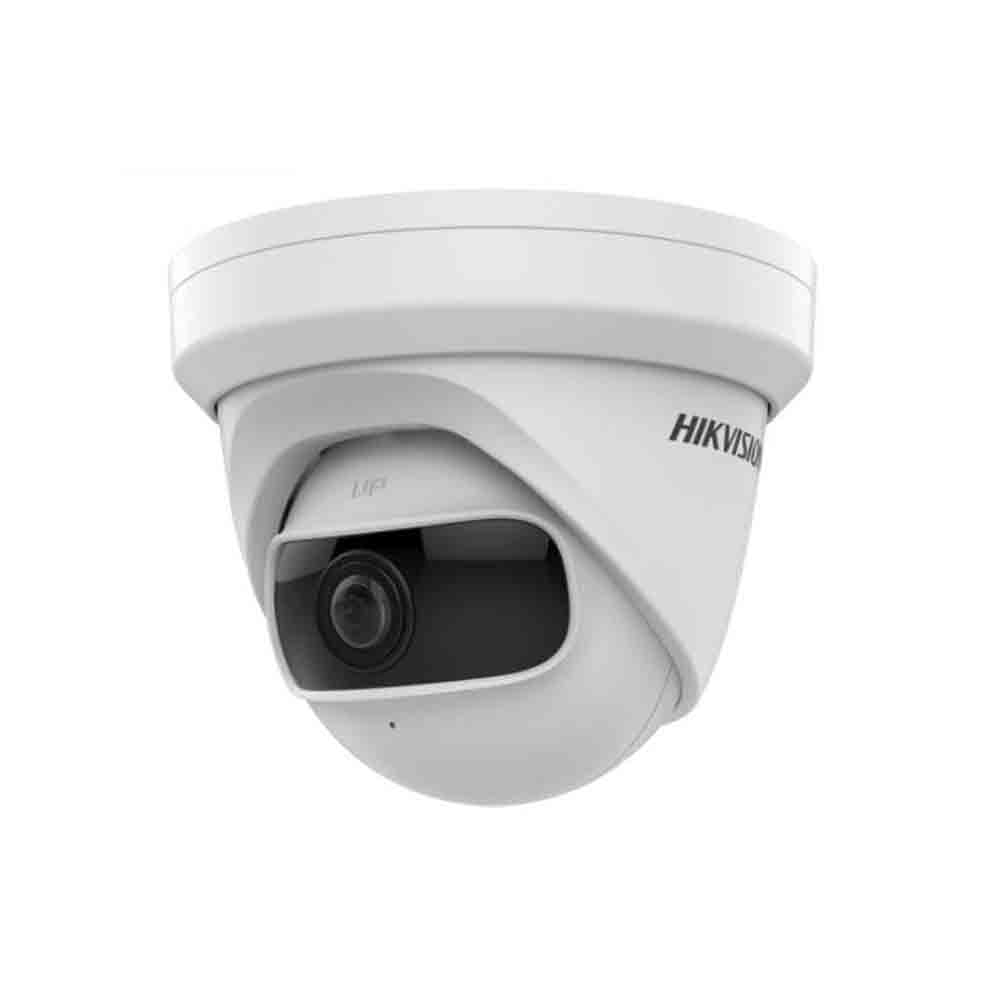

Hikvision DS-2CD2345G0P-I 4MP 180° Super Wide Angle IR Fixed Turret Network Camera
Product ID DS-2CD2345G0P-I

Hikvision DS-2CD2345G0P-I 4MP 180° Super Wide Angle IR Fixed Turret Network Camera

Trade Only Item
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec

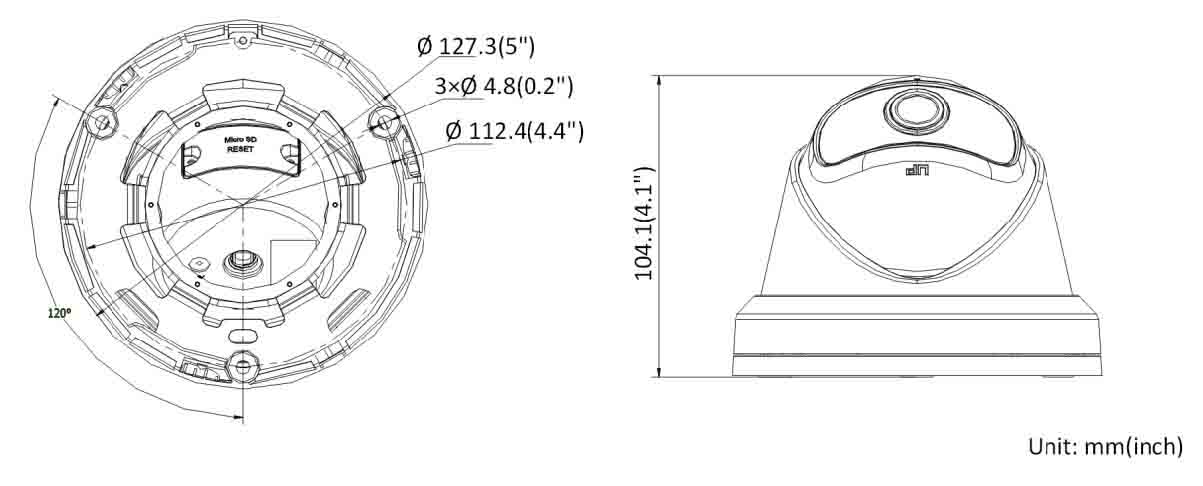

  • Diagram

Key Features

  • 1/2.7" Progressive Scan CMOS
  • 2688 × 1520 @ 25fps
  • 1.68 mm ultra wide angle fixed lens, FOV: 180°
  • 120dB WDR
  • H.265, H.265+, H.264, H.264+
  • Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
  • 3-Axis adjustment
  • Indoor

Download

Manufacturers Spec Sheet (PDF)

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON)
B&W: 0.0028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Day & NightIR Cut Filter
WDR120 dB
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens TypeFixed lens, 1.68 mm
ApertureF2.0
FOV1.68 mm, horizontal FOV: 180°, vertical FOV: 101°, diagonal FOV: 180°
Lens MountM12
Illuminator
IR RangeUp to 10 m
Wavelength850 nm
Video
Max. Resolution2688 x 1520
Main Stream50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Video CompressionMain stream: H.265+/H.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
Video Bit Rate32 Kbps to 16 Mbps
Scalable Video Coding (SVC)H.264 and H.265 encoding support
Smart Feature-Set
Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Region of Interest1 fixed region for main stream and sub-stream
Image EnhancementBLC, HLC, 3D DNR
Image SettingSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule
Network
Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users, 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in free live view: Chrome 45.0+, Firefox 52.0+
Local Service: Chrome 41.0+, Firefox 30.0+
Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
General
Web Client Language32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter
ResetReset via reset button on camera body, web browser and client software
Startup and Operating Conditions-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Storage Conditions-10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, type 1, class 3)
Power Consumption and Current12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8W
MaterialMetal & Plastic
DimensionsCamera: Φ 127.3 × 104.1 mm (Φ 5" × 4.1")
With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
WeightCamera: Approx. 520 g (1.1 lb.)
With package: Approx. 700 g (1.5 lb.)
Approval
EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
Chemistry2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
