Hikvision DS-2CD2346G2-IU-G AcuSense 4 MP Grey IR Fixed Turret Network Camera with built in Mic
Product ID DS-2CD2346G2-IU-G

Hikvision DS-2CD2346G2-IU-G AcuSense 4 MP Grey IR Fixed Turret Network Camera with built in Mic

Trade Only Item
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Summary

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.

Key Features

  • High quality imaging with 4 MP resolution
  • 2.8mm Lens, horizontal FOV 103°
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • False alarm reduction through human and vehicle target classification based on deep learning
  • -U: Built-in microphone for real-time audio security
  • -U: Water and dust resistant (IP66); -I: Water and dust resistant (IP67)

Download

Manufacturers Spec Sheet (PDF)

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Day & NightICR Cut
Slow ShutterYes
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
P/NP/N
Wide Dynamic Range120 dB
Lens
Lens Type & FOV2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
ApertureF1.4
Lens MountM12
Aperture TypeFixed
Illuminator
IR RangeUp to 30 m
Wavelength850 nm
Smart Supplement LightYes
Supplement LightIR
Video
Max. Resolution2592 × 1944
Main Stream50Hz: 20fps (2592 × 1944), 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2592 × 1944), 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
Video CompressionMain stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main Stream supports
H.265+Main Stream supports
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)Yes
Region of Interest (ROI)1 fixed region for each stream
Audio
Environment Noise Filtering-U: Yes
Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate-U: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
Network
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth StreamingYes
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
Audio-U: 1 built-in microphone
On-board StorageBuilt-in micro SD slot, up to 256 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Intelligent (Traditional Algorithm)
Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
Intelligent (Deep Learning Algorithm)
Face CaptureYes
Premier ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection
General
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, class 3
Power Consumption and Current12 VDC, 0.48 A, max. 5.8 W
PoE: (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
Power InterfaceØ 5.5 mm coaxial power plug
MaterialMetal except for trim ring

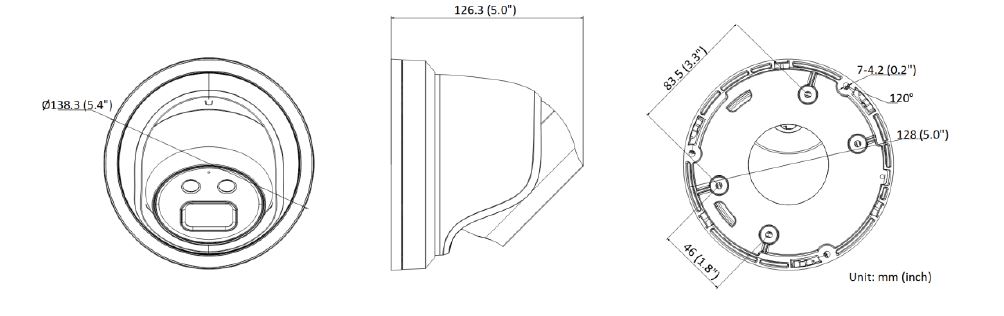

Camera DimensionØ 138.3 × 126.3 mm (5.4" × 5.0")
Package Dimension170 × 170 × 150 mm (6.7" × 6.7" × 5.9")
Camera WeightApprox. 770 g (1.7 lb.)
With Package WeightApprox. 1073 g (2.4 lb.)
Linkage MethodUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture
Web Client Language33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Software ResetYes
Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection-U: Ingression protection: IP66 (IEC 60529-2013)
-I: Ingression protection: IP67 (IEC 60529-2013)
