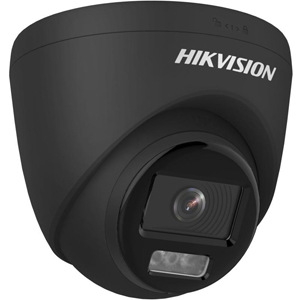

Hikvision DS-2CE72KF3T-LE-B 5MP 3K ColorVu Dual Light Black PoC Fixed Turret Camera (2.8mm Lens)

Product ID DS-2CE72KF3T-LE-B

0 reviews | Write a review

Trade Only Item

In Stock 0

Hikvision DS-2CE72KF3T-LE-B 5MP 3K ColorVu Dual Light Black PoC Fixed Turret Camera (2.8mm Lens)

Add Plug n Play Cable

20m

Add Power Supply

Yes

Trade Only Item

Free Shipping

Summary
Full Spec
Diagram

About the DS-2CE72KF3T-LE-B

The DS-2CE72KF3T-LE-B is a Hikvision 3K (5MP) ColorVu Dual Light turret camera in black for HD-TVI (coax) CCTV systems. It can be powered over the coax from a compatible PoC DVR.

3K is sharper than 4MP and 1080p, and the 2.8mm lens gives a 100 degree view. At night it can use infrared or a white light for colour footage, each up to 40m. It copes well with bright backgrounds (130dB WDR) and is weatherproof (IP67).

Key Features

High quality imaging with 3K, 2960 × 1665 resolution
Excellent low-light performance
24/7 color imaging with F1.0 aperture
Clear imaging against strong back light due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
2.8mm fixed focal lens - FOV: 100°
Up to 40 m IR distance for bright night imaging
Up to 40 m white light distance for bright night imaging
Water and dust resistant (IP67)

Download

Manufacturers Spec Sheet (PDF)

Camera
Image Sensor	3K CMOS
Signal System	PAL/NTSC
Max. Resolution	2960 (H) × 1665 (V)
Min. Illumination	0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens
Lens Type	2.8 mm fixed focal lens
Focal Length & FOV	2.8 mm, horizontal FOV: 100°, vertical FOV: 54°, diagonal FOV: 119° 3.6 mm, horizontal FOV: 81°, vertical FOV: 44°, diagonal FOV: 94°
Lens Mount	M12
Illuminator
Supplement Light Range	IR: Up to 40 m,White Light: Up to 40 m
Smart Supplement Light	Yes
Frame Rate	3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
Wide Dynamic Range (WDR)	≥ 130 dB
Image Parameters Switch	STD/HIGH-SAT/HIGHLIGHT
AGC	Yes
Day/Night Mode	Auto/Color/BW (Black and White)
White Balance	Auto/Outdoor/Global/Manual
Image Enhancement	WDR,BLC,HLC,Global,HLS
Noise Reduction	3D DNR/2D DNR
Image Settings	Brightness,Contrast,Mirror,Smart Light,Anti-Banding
Interface
Video Output	1 HD analog output
Event
Motion Detection	4 programmable motion areas
General
Power	12 VDC ± 25%, 0.65 A, max. 7.8 W,PoC.at,*You are recommended to use one power adapter to supply the power for one camera.
Language	English
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
Material	Main body: Metal, Enclosure: Plastic
Communication	HIKVISION-C

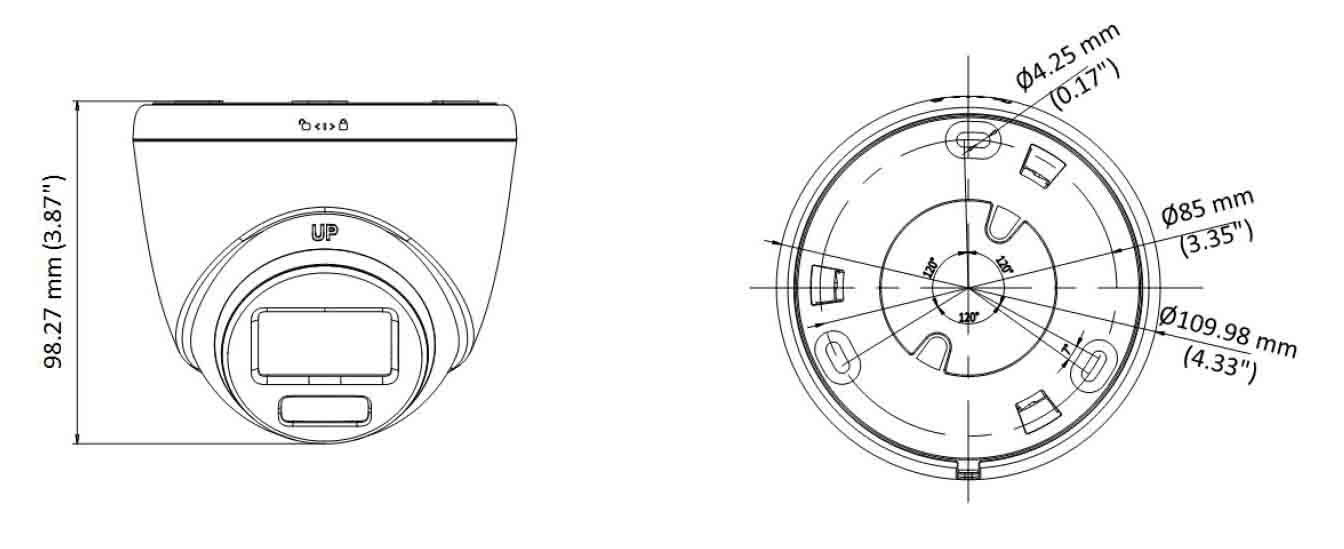

Dimension	Ø109.98 mm × 98.27 mm (Ø4.33" × 3.87")
Weight	Approx. 360 g (0.79 lb.)
Approval
Protection	IP67
