Product ID DS-2CE72KF3T-LE-G

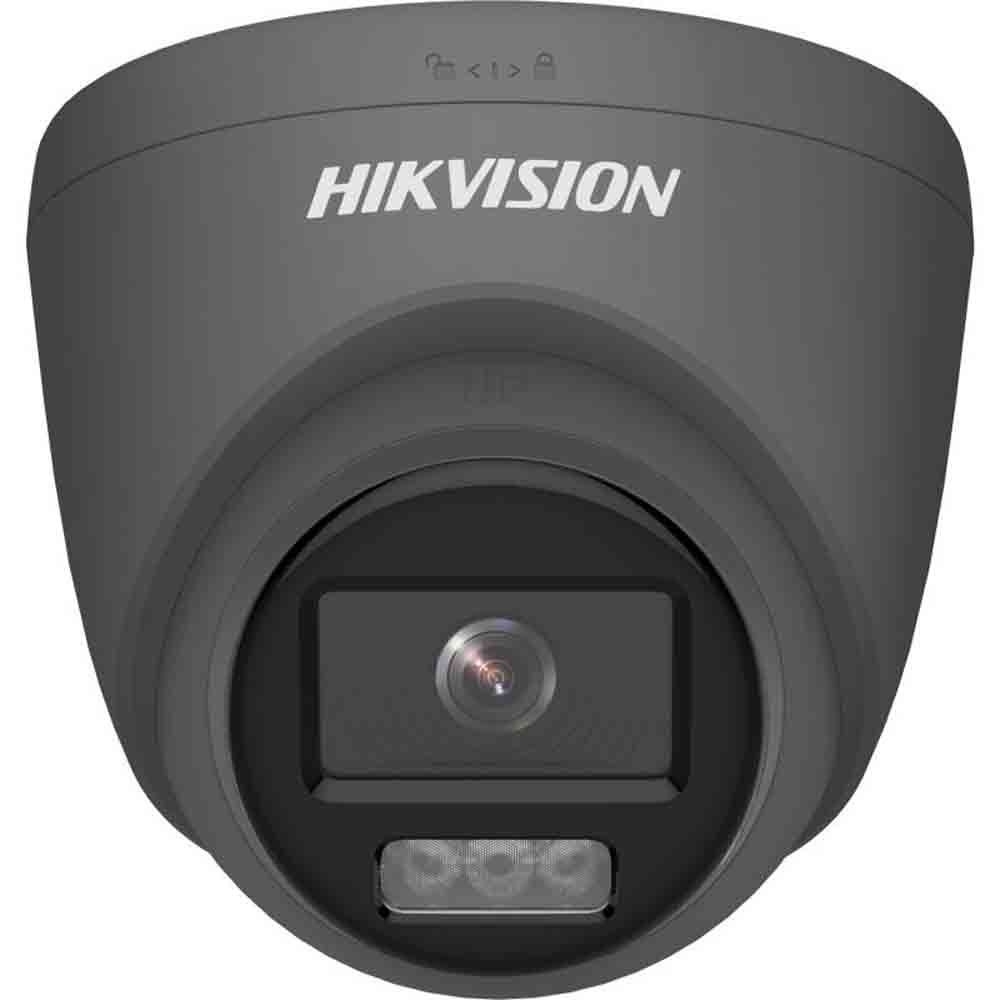

Hikvision DS-2CE72KF3T-LE-G 5MP 3K ColorVu Dual Light Grey PoC Fixed Turret Camera (2.8mm Lens)

Trade Only Item
In Stock 0
0 reviews | Write a review
3 Year Warranty
HD-TVI CCTV

Free Shipping

  • Summary
  • Full Spec
  • Diagram

Key Features

  • High quality imaging with 3K, 2960 × 1665 resolution
  • Excellent low-light performance
  • 24/7 color imaging with F1.0 aperture
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8mm fixed focal lens - FOV: 100°
  • Up to 40 m IR distance for bright night imaging
  • Up to 40 m white light distance for bright night imaging
  • Water and dust resistant (IP67)

Download

Manufacturers Spec Sheet (PDF)

Camera
Image Sensor 3K CMOS
Signal System PAL/NTSC
Max. Resolution 2960 (H) × 1665 (V)
Min. Illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Lens
Lens Type 2.8 mm fixed focal lens
Focal Length & FOV 2.8 mm, horizontal FOV: 100°, vertical FOV: 54°, diagonal FOV: 119°
3.6 mm, horizontal FOV: 81°, vertical FOV: 44°, diagonal FOV: 94°
Lens Mount M12
Illuminator
Supplement Light Range IR: Up to 40 m,White Light: Up to 40 m
Smart Supplement Light Yes
Frame Rate 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
Wide Dynamic Range (WDR) ≥130 dB
Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Outdoor/Global/Manual
Image Enhancement WDR,BLC,HLC,Global,HLS
Noise Reduction 3D DNR/2D DNR
Image Settings Brightness,Contrast,Mirror,Smart Light,Anti-Banding
Interface
Video Output 1 HD analog output
Event
Motion Detection 4 programmable motion areas
General
Power 12 VDC ± 25%, 0.65 A, max. 7.8 W,PoC.at,*You are recommended to use one power
adapter to supply the power for one camera.
Language English
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
Material Main body: Metal, Enclosure: Plastic
Communication HIKVISION-C
Dimension Ø109.98 mm × 98.27 mm (Ø4.33" × 3.87")
Weight Approx. 360 g (0.79 lb.)
Approval
Protection IP67
