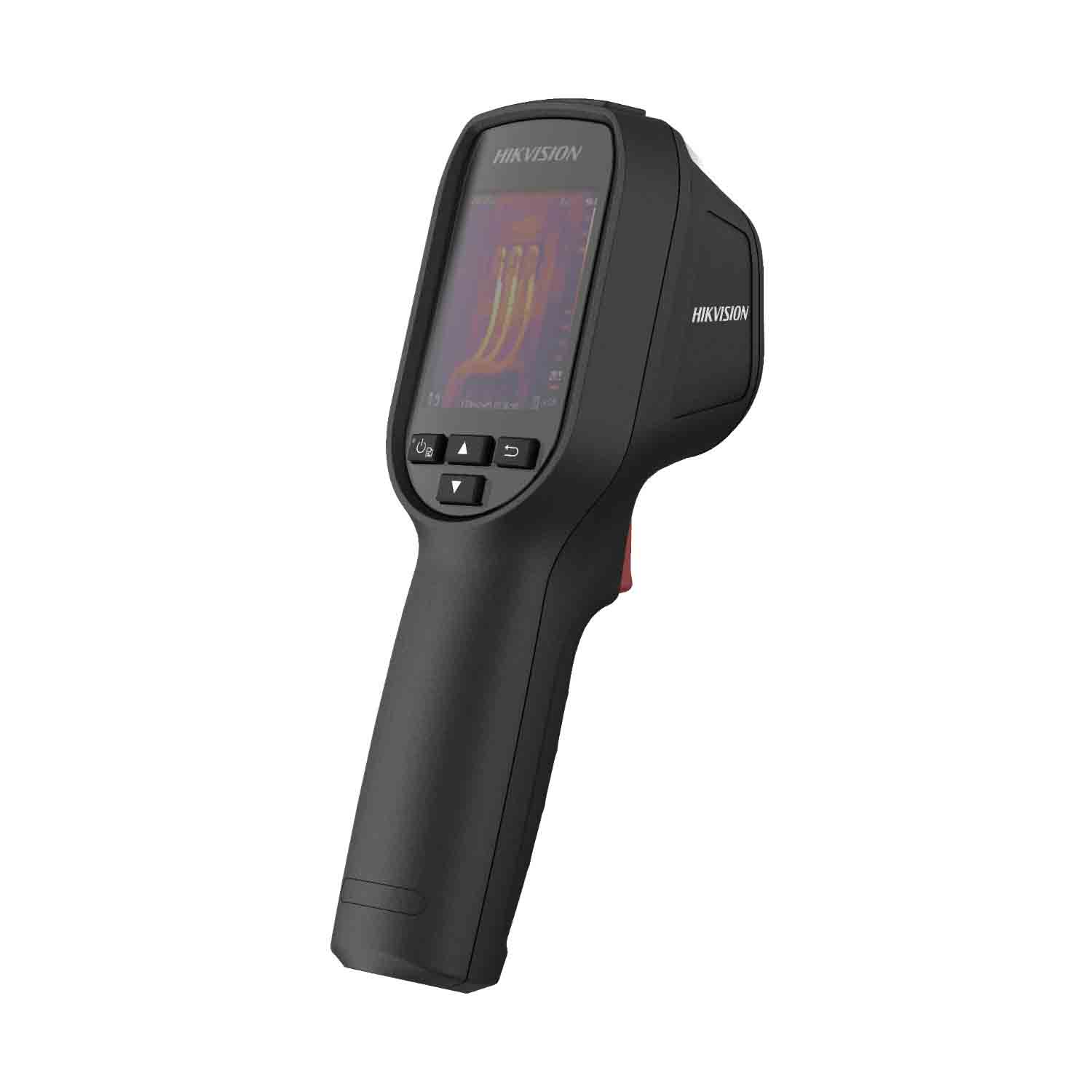

Hikvision DS-DS-2TP31B-3AUF Fever Screening Thermographic Handheld Camera, 3.1mm Lens
Product ID DS-2TP31B-3AUF

Hikvision DS-DS-2TP31B-3AUF Fever Screening Thermographic Handheld Camera, 3.1mm Lens

£839.00
0 reviews | Write a review
3 Year Warranty

  • Summary
  • Full Spec

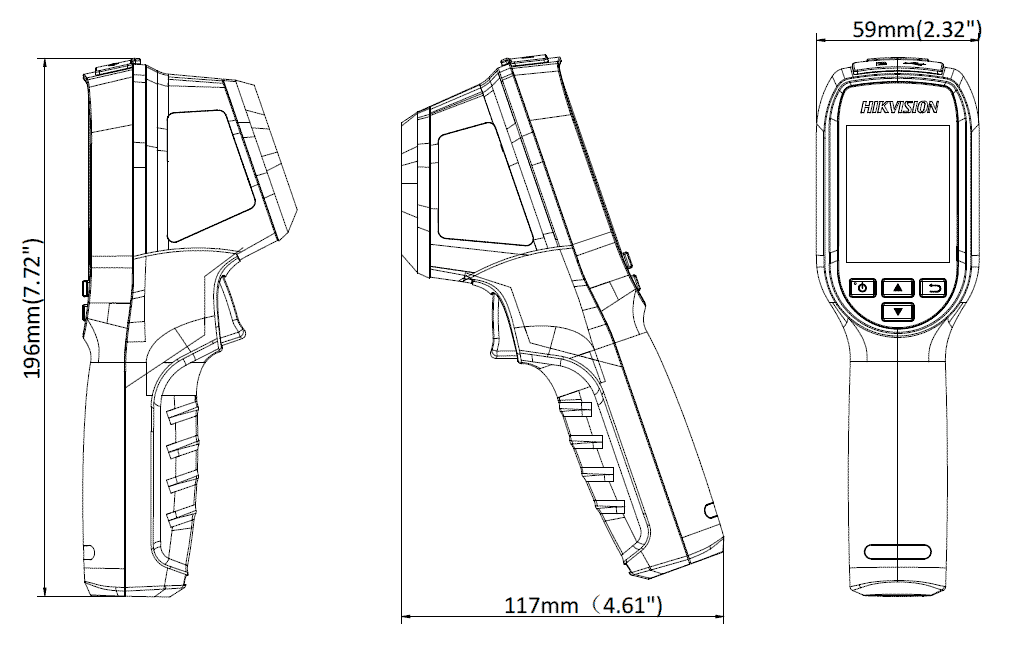

  • Diagram

Summary

The handheld thermography camera, specially designed for temperature measurement in transformer substation. It’s equipped with a 160×120 resolution thermal detector. It helps the staff to quickly find the fault according to accurate temperature measurement of high temperature targets in the environment. Meanwhile it provides assistant decision and ensure safety. The device is mainly applied to various industries, such as Building, HVAC, and auto industry, etc.,

Key Features

  • High sensitivity sensor with 160 x 120 resolution
  • High quality 320 x 240 resolution 2.4" LCD display
  • Up to 4 palettes
  • Wide temperature measurement range: -20 - 550° C
  • High temperature measurement accuracy: Up to ±2° C, ±2%
  • Long-distance laser light supplement for thermography targets
  • Built-in rechargeable Li-ion battery
  • Up to 8 hours continuous operation

Download

Manufacturers Spec Sheet (PDF)

Thermal Module
Image sensorUncooled Focal Plane Arrays
Resolution25Hz: 160 × 120
Pixel Pitch17μm
Response waveband8μm to 14μm
NETD< 40 mk (@ 25 °C,F#=1.0)
Field of View37.2° × 50 °
Focal length3.1 mm (Manual focus)
IFOV5.48 mrad
Min focus length> 150mm
ApertureF 1.1
Image Display
Monitor320 × 240 resolution 2.4’’ LCD display
PalettesBlack hot, White hot, Red hot, Rainbow, Ironbow
Thermography
RulesMax. Temperature; Min. Temperature; Center
Range-20°C to 550°C
AccuracyMax (±2 °C, ±2%)
Battery
Battery TypeRechargeable Lithium Battery
Battery Operating Time8 hours continuous running
Functions
Laser lightSupport (Point to the thermography target)
StorageReplaceable memory card (default 8G, support up to 128G storage)
PhotoThermal image
Videon/a
Wi-Fin/a
Text Commentn/a
Voice Commentn/a
LanguageEnglish
General
Power3.7 VDC/0.4 A
Power ConsumptionMax. 1.2 W
Hardware Interfacemicro USB
Working Temperature-10°C to 50 °C
Protection levelIP54
Drop Test Height2 m (6.56 feet)
Dimension196 mm × 117 mm × 59 mm
WeightApprox. less than 350g
