| Camera |
|---|
| Image Sensor | 1/1.2" Progressive Scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light |
| Max. Resolution | 3840 × 2160 |
| Shutter Time | 1 s to 1/100,000 s |
| Lens |
|---|
| Focal Length & FOV | 2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124° |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Lens Mount | M20 |
| DORI |
|---|
| DORI | 2.8 mm: D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m
4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m |
| Illuminator |
|---|
| Supplement Light Type | White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| Video |
|---|
| Main Stream | 50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 12.5 fps (640 × 480, 640 × 360)
60 Hz: 15 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265
Sub-stream: H.265/MJPEG
*Full power mode: main stream supports H.265+ |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for main stream |
| Network |
|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-MD5), watermark, IP address filter, basic and digest authentication for
HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface,
RTP/RTSP over HTTPS, control timeout settings, TLS 1.2 |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported. |
| Client | Hik-Connect (low power mode also supports), Hik-central Professional |
| Web Browser | Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+ |
| Mobile Communication |
|---|
| SIM Card Type | MicroSIM |
| Frequency | DS-2XS6A87G1-L/C32S80:
LTE-TDD: Band38/40/41
LTE-FDD: Band1/3/5/7/8/20/28
WCDMA: Band1/5/8
GSM: Band3/5/8
DS-2XS6A87G1-L/C32S80 (US):
LTE-FDD: Band2/4/5/12/13/17/66/71
WCDMA: Band2/4/5
DS-2XS6A87G1-L/C32S80 (LA):
LTE-TDD: Band38/40
LTE-FDD: Band1/2/3/4/5/7/8/12/17/20/28/66
WCDMA: Band1/2/3/4/5/8
GSM: Band2/3/5/8
DS-2XS6A87G1-L/C32S80 (JP):
LTE-TDD: Band41
LTE-FDD: Band1/3/8/11/18/19/21/26/28
WCDMA: Band1/8 |
| Standard | DS-2XS6A87G1-L/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A87G1-L/C32S80 (US): LTE-FDD/WCDMA
DS-2XS6A87G1-L/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM
DS-2XS6A87G1-L/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA |
| Image |
|---|
| Wide Dynamic Range (WDR) | 120 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client
software or web browser |
| SNR | ≥ 52 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface |
|---|
| RS-485 | 1 RS-485 (half duplex) |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB;
Built-in 64 GB eMMC storage |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event |
|---|
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP
'address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, up to 4 regions configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable,
The smart events are only supported under full power mode. |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger
recording, trigger capture |
| General |
|---|
| Power | 12 VDC ± 20%, Ø 5.5 mm coaxial power plug
1. Standby power consumption: 53 mW
2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).
3. The max. power consumption: 3.2 W |
| Material | Front cover: metal, body: metal, bracket: metal |

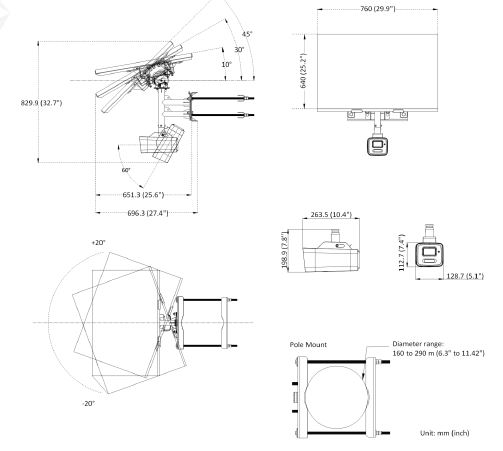

| Dimension | 829.9 × 696.3 × 760 mm (32.7"" × 27.4"" × 30"") (Max. size of the camera after it is
completely assembled) |
| Package Dimension | 862 × 292 × 765 mm (33.9" × 10.3" × 30.1") |
| Weight | Approx. 25.4 kg (56.0 lb.) |
| With Package Weight | Approx. 30.1 kg (66.3 lb.) |
| Storage Conditions | -20 °C to 60 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -20 °C to 60 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel
counter |
| Battery |
|---|
| Battery Type | Lithium
*The battery should be ordered separately. |
| Capacity | 30 Ah |
| Max. Charging Voltage | 12.6 V |
| Battery Voltage | 10.8 V |
| Operating Temperature | Charging: -20 °C to 45 °C (-4 °F to 131 °F)
Discharging: -20 °C to 60 °C (-4 °F to 140 °F) |
| Battery Life | More than 500 cycles |
| Battery Weight | Approx. 3.3 kg (7.3 lb.) |
| Extended Dimension | 236 × 154 × 80 mm (9.3" × 6.1" × 3.2") |
| Approval |
|---|
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
FCC (47 CFR Part 15, Subpart B);
IC (ICES-003: Issue 7) |
| RF | CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN
301489-52,EN 62133);
ICASA: same as CE-RED
FCC ID (47 CFR Part15 Subpart C);
IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue
5);
MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the
Ordinance Regulating Radio Equipment) |
| Safety | CB (IEC 62368-1:2014+A11)
CE-LVD (EN 62368-1:2014/A11:2017)
LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006) |
| Protection | Camera: IP67 (IEC 60529-2013)
Wind resistance 12 level |
