Hikvision DS-D5024FN 23.8 inch FHD Borderless Monitor #1Hikvision DS-D5024FN 23.8 inch FHD Borderless Monitor #2Hikvision DS-D5024FN 23.8 inch FHD Borderless Monitor #3Hikvision DS-D5024FN 23.8 inch FHD Borderless Monitor #4
Product ID DS-D5024FN

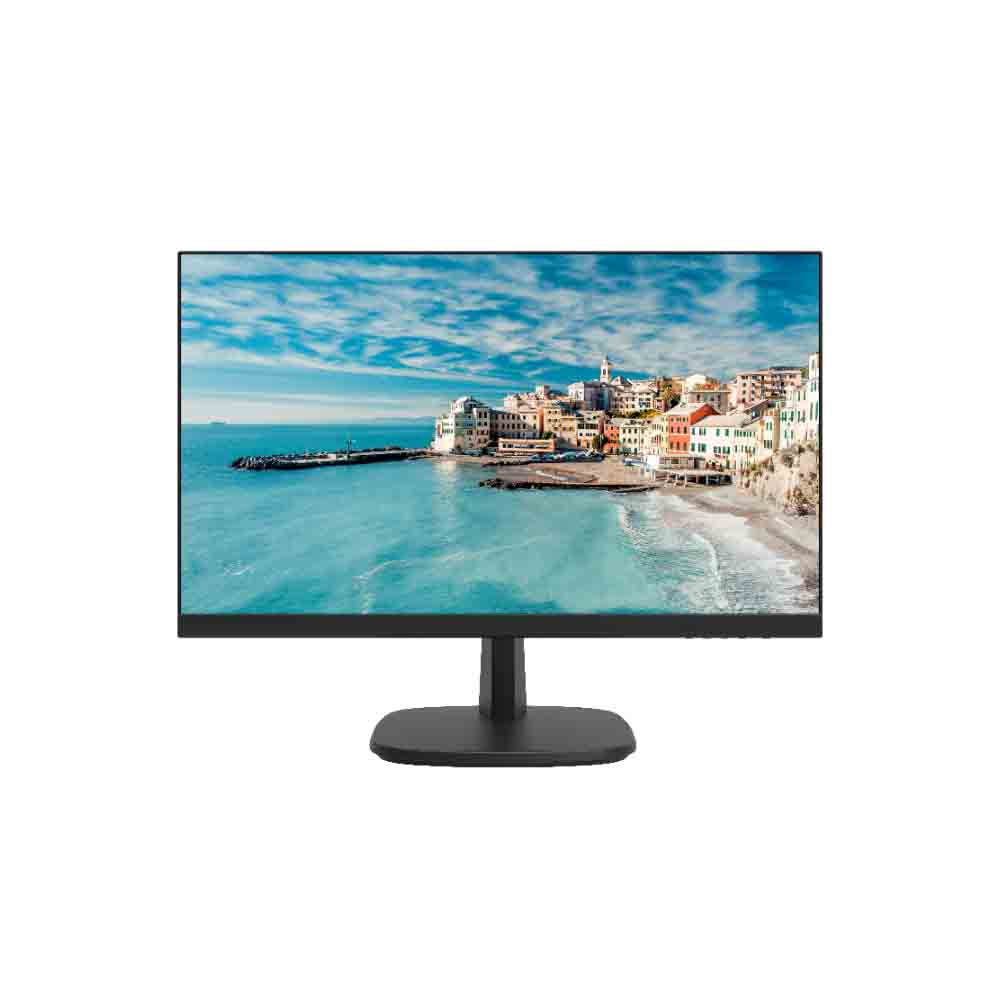

Hikvision DS-D5024FN 23.8 inch FHD Borderless Monitor

Trade Only Item
Quantity
0 reviews | Write a review

Free Shipping

  • Summary
  • Full Spec

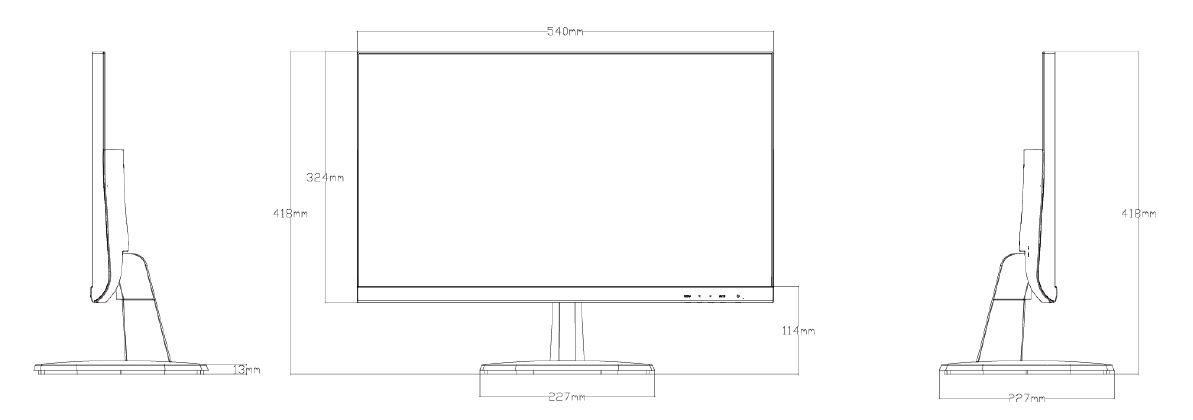

  • Diagram

Key Features

  • LED backlit technology with full HD 1920×1080
  • Wide view angle: 178°(H)/178°(V)
  • User-friendly operation menu
  • High reliable components for 7×24 working
  • 1 channel HDMI 1.3 input interface
  • Three image modes to adapt different environment
  • Support software spread-spectrum technology to reduce EMI radiation
  • VESA stand bracket

Download

Manufacturers Spec Sheet (PDF)

LCD Screen
BacklightTFT-LED Backlight
Dimension23.8 inch
Optimal working resolution1920 ×1080@60Hz
Brightness250 cd/m²
Contrast1000: 1
Response time14ms
Color16.7M
Active Area527 × 296 mm
Viewing AngleHorizantal 178°, vertical 178°
Interfaces
VGA input1
HDMI input1
General
Casing MaterialPlastic
Color of CasingBlack
Wall-mounting Hole100 ×100 mm
Wall-mounting ScrewM4
SpeakersNA
Power Supply100 to 240 VAC, 50/60Hz
Power Consumption≤ 30W
Standby Power Consumption≤ 0.5 W
Working Temperature0 to 40 º C (32 to 104 º F)
Working Humidity10 to 90 %
Storage Temperature-20 to 60 º C (-4 to 140 º F)
Storage Humidity5 to 95%
Dimensions540×418×227mm
Packing Dimensions609×500×109mm
Gross Weight4.44 kg
Net Weight3.43 kg
Accessories
VGA cable1
Power Cord1
User Manual1
