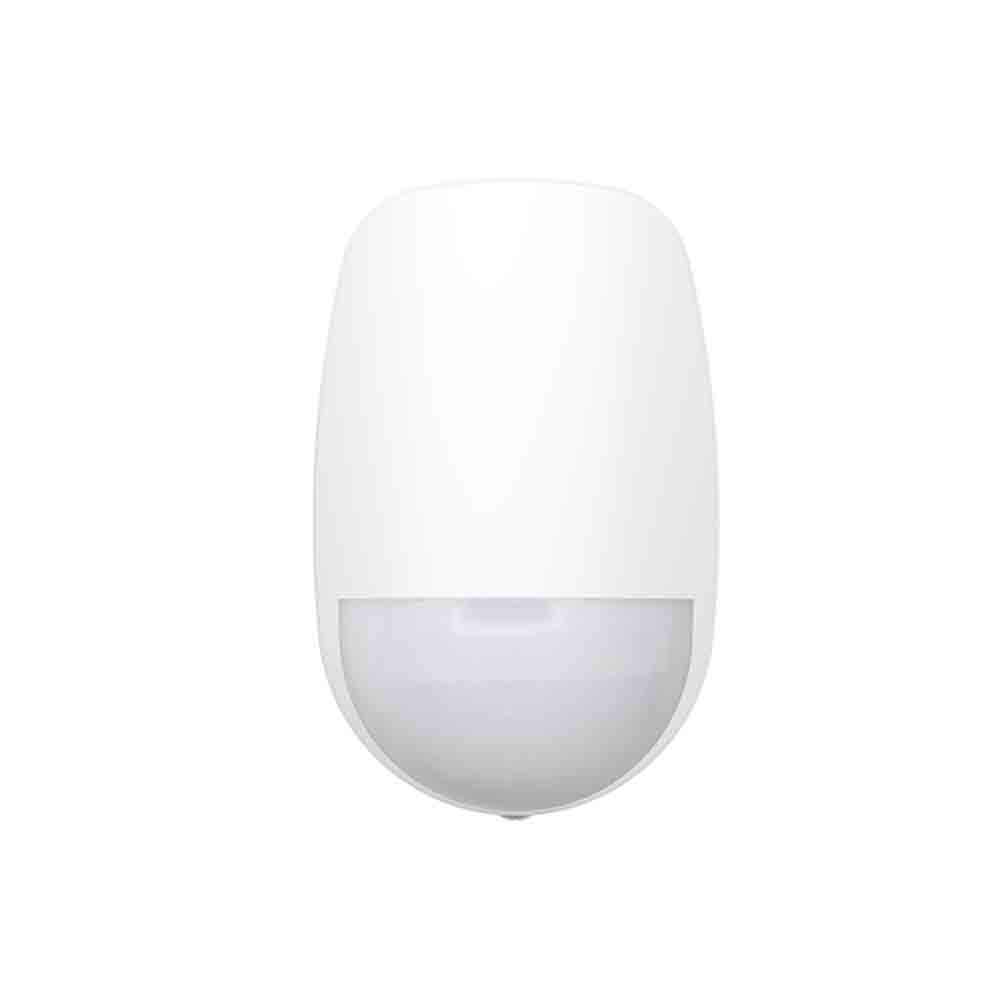

Hikvision AX Pro DS-PDD12P-EG2-WE Wireless Dual-Tech PIR Detector Intruder Alarm
Product ID DS-PDD12P-EG2-WE

Hikvision AX Pro DS-PDD12P-EG2-WE Wireless Dual-Tech PIR Detector Intruder Alarm

Trade Only Item
0 reviews | Write a review

  • Summary
  • Full Spec

Summary

DS-PDD12P-EG2-WE is a fully supervised two-way wireless detector featuring motion and microwave detection,tamper protection,low battery and supervision. It can operate for up to 5 years from two in-built batteies, and monitors the area within 12m radius, ingnores animals while recognizing human from the first step.

Key Features

  • 3D optics including creep-zone protection, full coverage without dead angle
  • 24G microwave to prevent wall penetration
  • Digital temperature compensation
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission

Download

Manufacturers Spec Sheet (PDF)

Detection Performance
Detection MethodPassive Infrared,Microwave
Detection Range12m
Detection Angle85.9°
Detection Zones52
Detectable Speed0.3~2m/s
SensitivityAuto,High,Pet
Pet Immunity30Kg
White Light Filter6500lux
Microwave Frequency24GHz(24.15~24.25GHz)
Digital Temperature CompensationSupport
Creep Zone ProtectionSupport
Feature
Digital ProcessingSupport
Sealed OpticsSupport
Tamper ProtectionFront,Rear
Environment Temperature IndicatorSupport
Signal Strength IndicatorSupport
Interface
Power SwitchPower Up Enrolling
LED IndicatorGreen(PIR), Red(Microwave), Blue(Alarm)
Transmission
Transmission TechnologyTri-X Wireless
Transmission MethodTwo-Way RF Wireless
Transmission Frequency868MHz
Transmission SecurityAES-128 Encryption
Transmission Range(Free Space)1.6Km
Frequency HoppingSupport
Enrolling MethodPower up,Remote ID,QR Code
Electrical Characteristics
Power SupplyBattery Powered
Battery TypeCR123A × 2
Typical Voltage3V
Standard Battery Life5 Years
General
Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity10% to 90%
Dimension(WxHxD)65.5mm × 103mm × 48.5mm
Weight141g
Mounting Height1.8 to 2.4m
Mounting MethodWall
Application ScenarioIndoor
BracketOptional Wall & Ceiling Accessory
