Hikvision AX Pro DS-PDMCS-EG2-WE Wireless Slim Magnetic Contact Detector Intruder Alarm

Product ID DS-PDMCS-EG2-WE
0 reviews | Write a review
Login For Prices
In Stock 0
Hikvision AX Pro DS-PDMCS-EG2-WE Wireless Slim Magnetic Contact Detector Intruder Alarm #1Hikvision AX Pro DS-PDMCS-EG2-WE Wireless Slim Magnetic Contact Detector Intruder Alarm #2
Login For Prices

Free Shipping

  • Summary
  • Full Spec

Summary

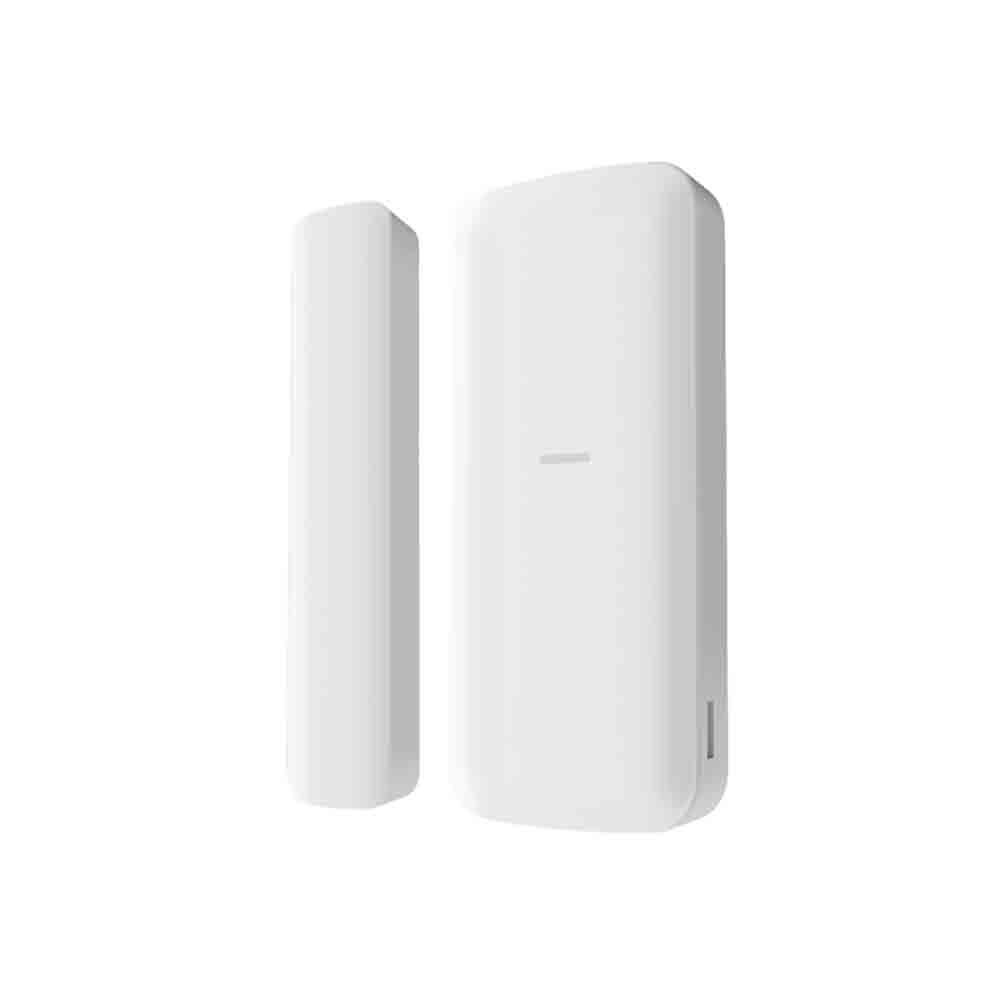

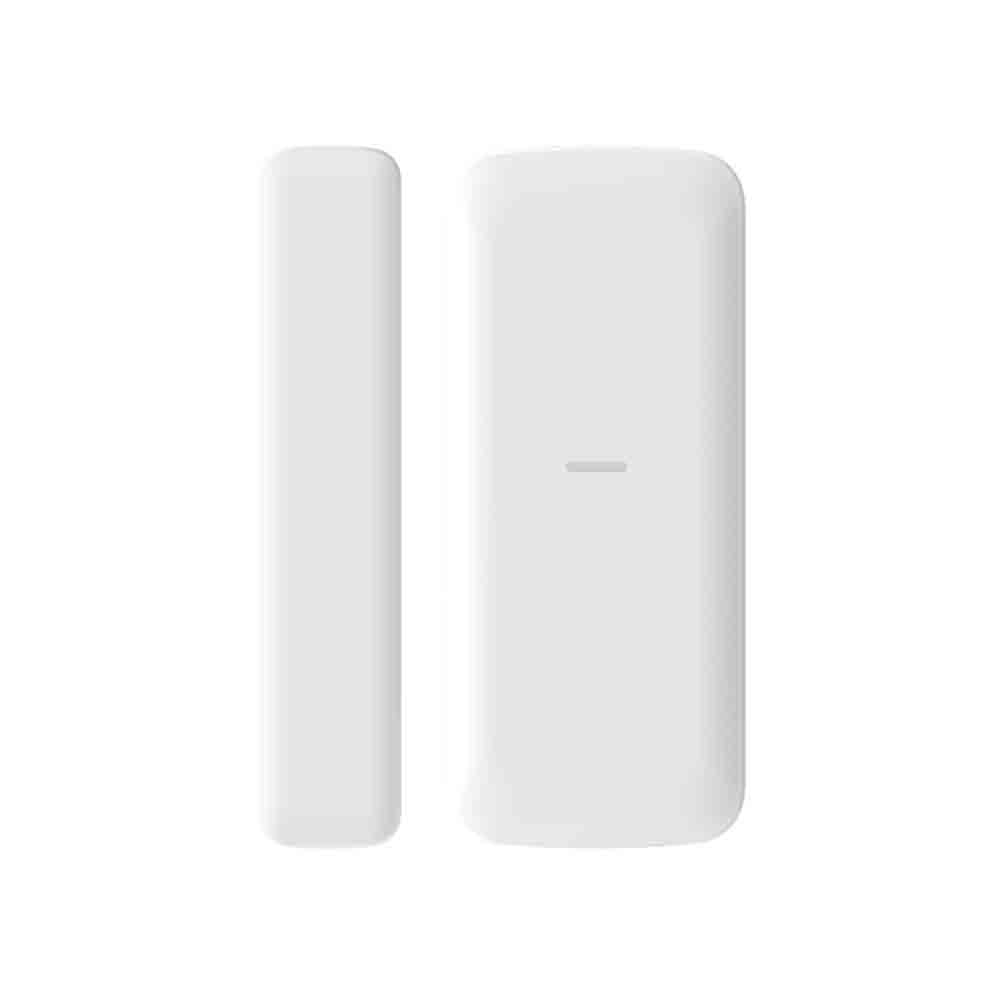

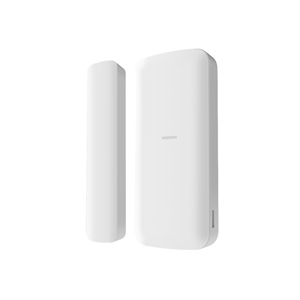

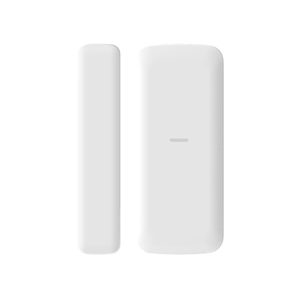

The DS-PDMCS-EG2-WE is a Hikvision AX Pro slim wireless magnetic contact.

It alerts the panel the moment a door or window opens. The slim design is made to fit window frames, where it's barely noticeable. It works with the Hikvision AX Pro wireless alarm panel and is set up through the app.

Key Features

  • Slim design for an unobtrusive (unnoticeable) installation
  • Fully remote configurable through App
  • Multiple enrollment methods and easy installation design
  • Frequency hopping against jamming for reliable transmission

Download

Manufacturers Spec Sheet (PDF)

Technical characteristics
Reed switch1
Tamper protectionFront and back
LED indicatorAlarm (blue)
Wireless technical characteristics
Wireless technologyTri-X Wireless Technology
Two-way wireless communicationSupported
Transmission frequency868 MHz
RF range1200 m (open space)
Transmission encryptionAES-128 encryption
Enrolling methodsPower up, remote ID and QR code
Frequency hoppingMultichannel transmission
Signal strength indicatorsSupported
Environment temperature indicatorSupported
Electrical and battery
BatteryCR2450 x 1 (included)
Standard battery life3 years
Environmental and operating features
Dimension (W × H × D)29mm × 69mm × 10mm
14mm × 69mm × 10mm
Weight38 g
Storage temperature-20 °C to 60 °C (-4 °F to 140 °F)
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Operating humidity10% to 90%
