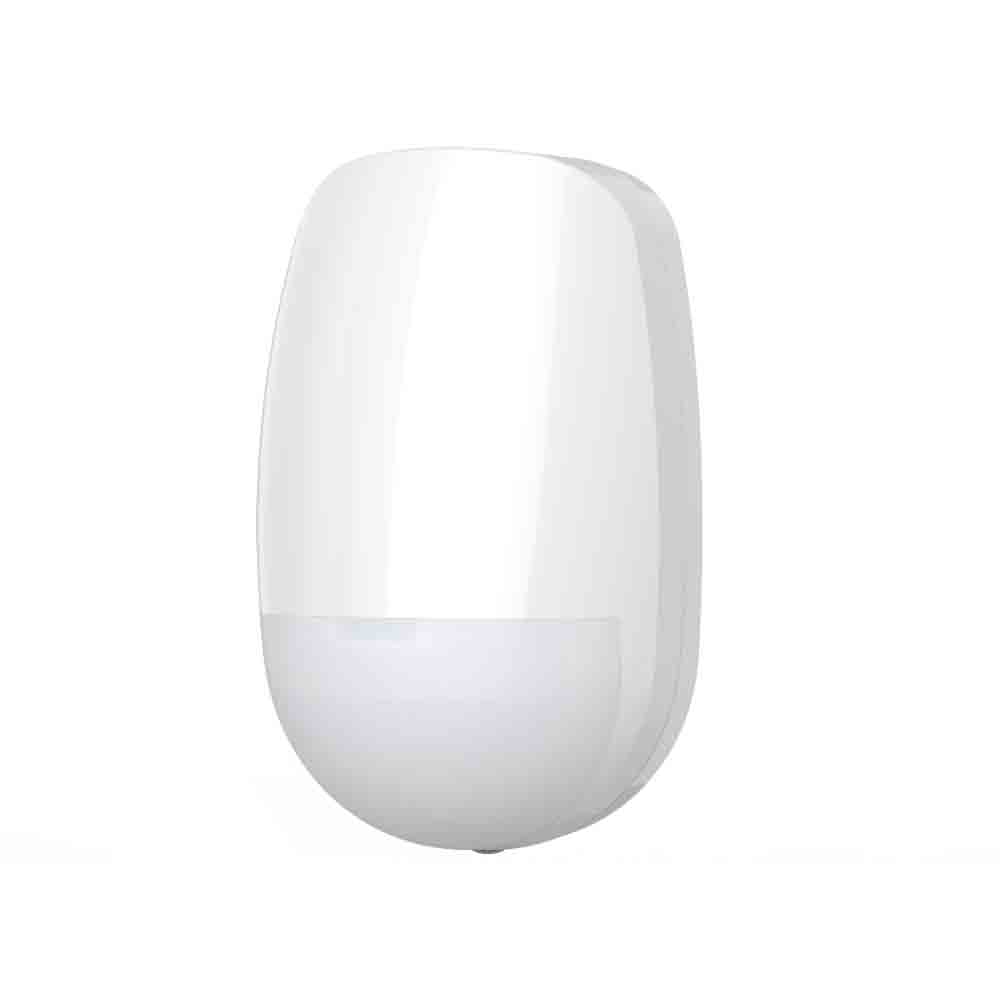

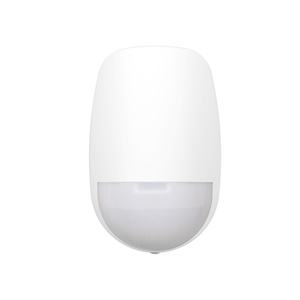

Hikvision AX Pro DS-PDP15P-EG2-WE Wireless PIR Detector Intruder Alarm

Product ID DS-PDP15P-EG2-WE
0 reviews | Write a review
Login For Prices
Hikvision AX Pro DS-PDP15P-EG2-WE Wireless PIR Detector Intruder Alarm #1Hikvision AX Pro DS-PDP15P-EG2-WE Wireless PIR Detector Intruder Alarm #2
Login For Prices
Quantity
-
+

Free Shipping

  • Summary
  • Full Spec

Summary

DS-PDP15P-EG2-WE is a fully supervised two-way wireless detector featuring motion detection,tamper protection,low battery and supervision. It can operate for up to 5 years from an in-built battery, and monitors the area within 15 m radius, ignores animals while recognizing human from the first step.

Key Features

  • Detection Range: 15m / 85.9°
  • Up to 30KG pet immunity
  • SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission

Download

Manufacturers Spec Sheet (PDF)

Technical characteristics
Detection range15m
Coverage angle85.9°
Detection speed0.3 to 2 m/s
Auto sensitivitySupported
Pet immunityUp to 30Kg
Digital temperature compensationSupported
TechnologyDigital microprocessor based
Sealed opticsSupported
Creep zone protectionSupported
Direct light filter6500 lux
Tamper protectionFront & Back
LED indicatorAlarm (blue)
Encapsulated PCBSupported
Wireless technical characteristics
Wireless technologyTri-X Wireless Technology
Environment temperature IndicatorSupported
2-way wireless communicationSupported
Transmission frequency868 MHz
Frequency hoppingMultichannel transmission
Transmission encryptionAES-128 encryption
Signal strength indicatorsSupported
RF range1600m (open area)
Enrolling methodsPower up, Remote ID, QR code
Electrical and battery
BatteryCR123A x 1 (included)
Standard battery life5 years
Environmental and operating features
Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature-20 °C to 60 °C (-4 °F to 140 °F)
Operating humidity10% to 90%
Dimension (W× H × D)65.5 mm (2.58 ") × 103mm (4.06 ") × 48.5 mm (1. 91 ")
Weight128g (4.5 oz)
Mounting
BracketOptional wall & ceiling accessory
Installation height1.8 m to 2.4 m
