Product ID DS-PK1-E-WE

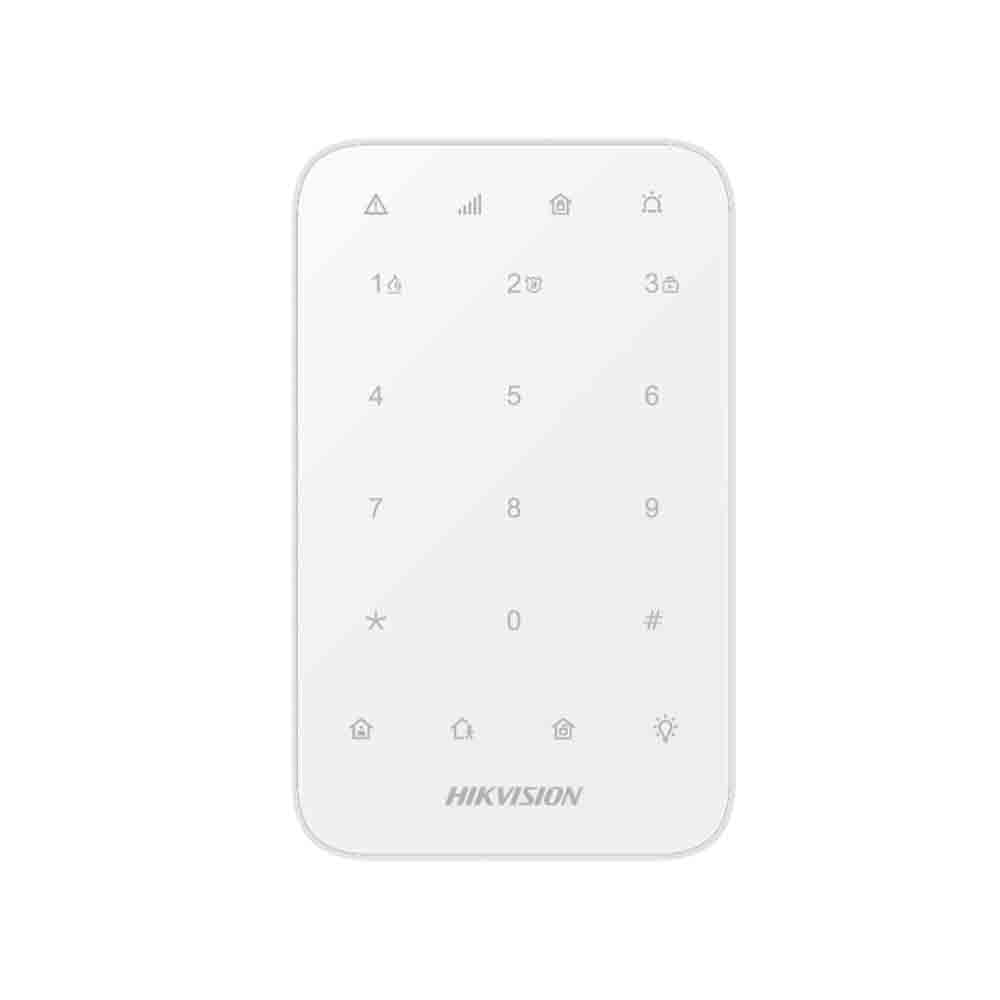

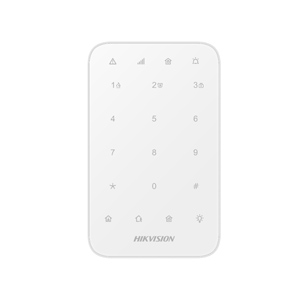

Hikvision AX Pro DS-PK1-E-WE Wireless LED Keypad Intruder Alarm

Login For Prices
0 reviews | Write a review

Free Shipping

  • Summary
  • Full Spec


The DS-PK1-E-WE series wireless keypad can connect to AX PRO for alarm control and operation. It can also notice alarm by indicator and buzzer.

Key Features

  • 868 MHz two-way wireless communication
  • AES-128 encryption
  • Stay/away arming, disarming, alarm clearing for specified area or all areas
  • LED indicates the programmed area
  • One-Push fire alarm, panic alarm, and medical alarm. Silent/Audible alarm selectable. etc.
  • Output control
  • Full touch key design with LED backlight
  • Fully remote configurable through App
  • Multiple enrollment methods and easy installation design
  • Easy replaceable battery
  • Frequency hopping against jamming for reliable transmission


Manufacturers Spec Sheet (PDF)

RF Transmission
Frequency868 MHz
Distance1200m (open area)
Interface & component
Tamper switchSupported, front and rear panel tamper-proof
Power switchPower on/off
Indicator4: fault (orange), enrollment/signal (red/green), arming(red/green/blue), and alarm (red)
KeyNumber key: 0 to 9
Function key: *, #, stay arming, away arming, disarming, and output
Application & protocol
ProtocolTri-X, two-way communication
Electrical & battery
Consumption1.5 VDC
Battery typeFour AA batteries
Battery life spanStandby time more than two years
Operation humidity10% to 90% (No condensing)
Operation temperature-10 °C to +55 °C (-4 °F to +122 °F)
InstallationScrew mounting
Dimension (W x H x D)140 (5.50") x 86 (3.38") x 22 (0.87") mm
WeightWithout batteries: 151 g (5.33 oz), and 23 g (0.81 oz)each battery
