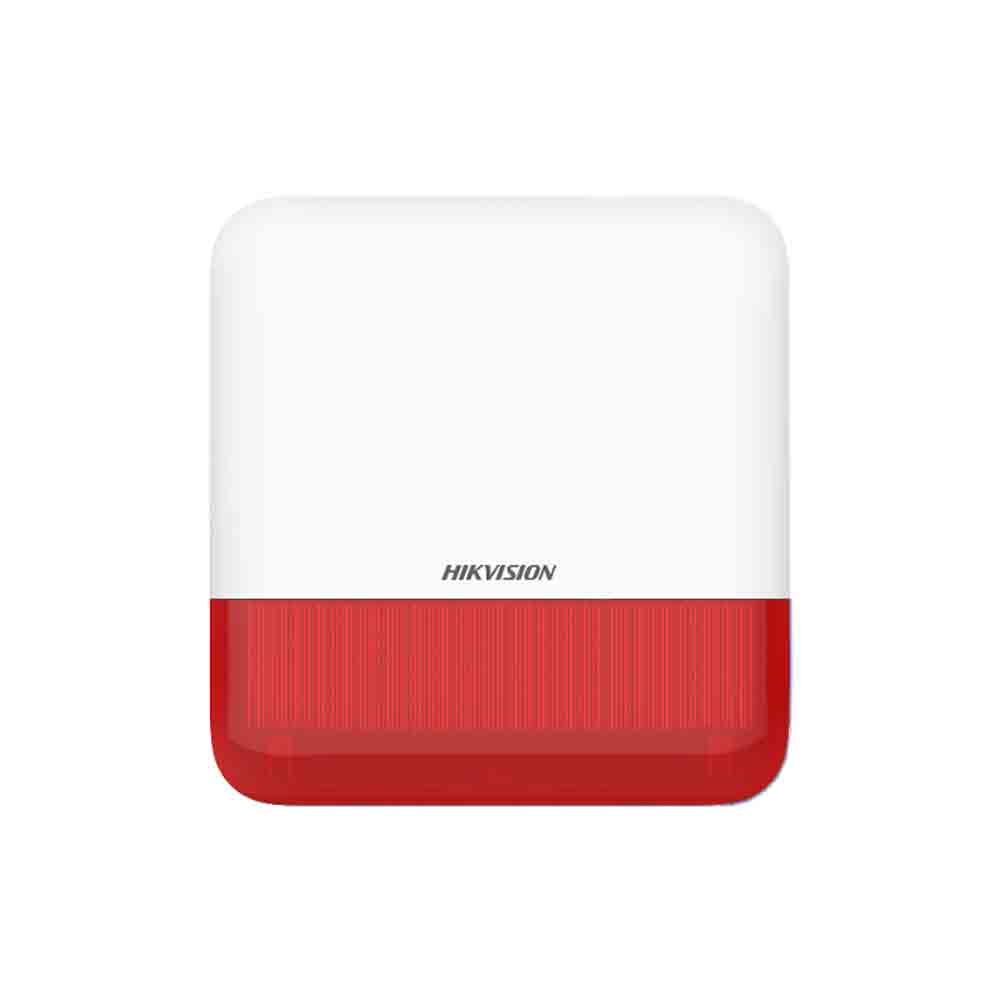

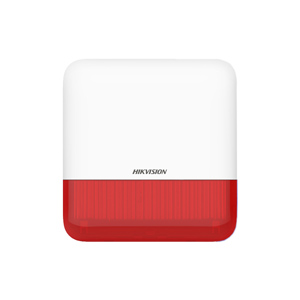

Hikvision AX Pro DS-PS1-E-WE/Red Wireless External Sounder Intruder Alarm with Red Strobe Light
Product ID DS-PS1-E-WE-Red

Hikvision AX Pro DS-PS1-E-WE/Red Wireless External Sounder Intruder Alarm with Red Strobe Light

Login For Prices
0 reviews | Write a review

  • Summary
  • Full Spec

Summary

The wireless external sounder, supporting 868 Mhz wireless communication, Tri-X wireless protocol, multiple enrollment methods, two-way wireless communication, multiple alarm sounds, and strobe light indication, is used for instant alarm alerting.

Key Features

  • 868 MHz two-way wireless communication
  • 3 years battery life span (triggered every two weeks and alerting 90 s for each triggering)
  • AES-128 encryption
  • Front and rear panel tamper-proof
  • 3 kinds of alarm sounds: fire alarm, panic alarm, and intrusion alarm
  • Buzzer Decibel: 110 dB
  • Fully remote configurable through App
  • Multiple enrollment methods and easy installation design
  • Frequency hopping against jamming for reliable transmission
  • IP65 protective level

Download

Manufacturers Spec Sheet (PDF)

RF
Frequency868 MHz
Modulation2GFSK
MethodTwo-way communication
RF encryptionAES-128
RF distance1.6 km (open area)
Electrical & battery
PowerBattery (default power supply method) or 12 VDC
ConsumptionStatic consumption: 30 to 40uA
Battery life span4 CR123A, 3 years in work status (triggered every two weeks and alerting 90 s for each triggering)
Interface and component
Power switchSupported
Tamper switchSupported, Front and rear tamper-proof
IndicatorIndicator: Red/Green
Strobe light: Red(white on the board)
BuzzerDecibel: 110 dB
General
Operation temperature-20 °C to 60 °C (-4 °F to 140 °F)
Operation humidity10% to 90% (no condensing)
ColorWhite
MaterialPC+ABS
Dimension (W × H × D)190× 200 × 47. 3mm .(7.48" ×7.87" × 1.86")
Weight606.5 g (21.4 oz)
Protection levelIP65
InstallationWall mounting
