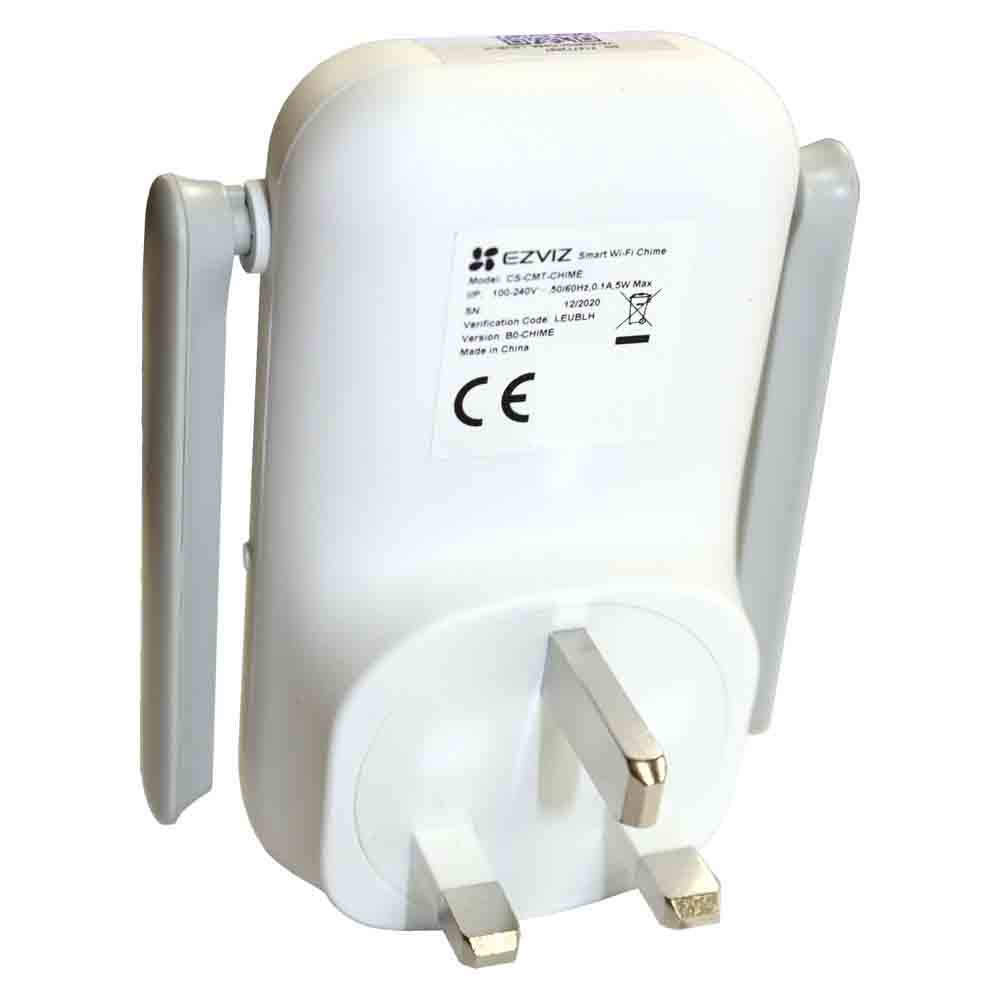

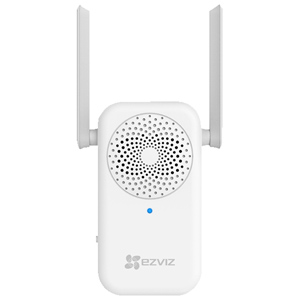

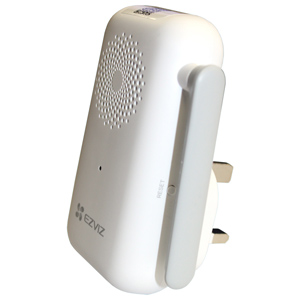

Hikvision EZVIZ-CHIME EZVIZ Video Doorbell Chime for the DB1 & DB1C Doorbells

Hikvision EZVIZ-CHIME EZVIZ Video Doorbell Chime for the DB1 & DB1C Doorbells

0 reviews | Write a review
2 Year Warranty

Free Shipping

  • Summary
  • Full Spec


As your EZVIZ video doorbell companion, the chime allows you to get instant notification when the visitor comes, virtually protecting your home. Plus, choose the pleasant ringtones to color your life.

Hear the classic tone throughout your home: As a complement to the EZVIZ Doorbell, this Chime keeps you notified at home when you don’t have the smartphone at hand.

Get immediate awareness of your visitors: Covering a three-meter radius with up to 72 dB of volume, the Chime gets the job done beautifully. As soon as someone presses your doorbell, you will hear one of the several pleasant tones while also receiving an incoming video call request on the phone.

20 pleasant ringtones to choose from: Choose your favorite ringtone to suit your unique aesthetic. Or, mute the chime when you don’t want to be disturbed.

Dual antennas for real-time response: The Chime has two external antennas, so you don’t have to worry about the network stability of your front-door security system.

Key Features

  • Works with EZVIZ Doorbells - DB1 & DB1C
  • Dual Antennas Wi-Fi 2.4GHz
  • Built-in Speaker
  • 100V - 240V AC
  • Muiltiple Notification Ringtones
  • Compact Design


Manufacturers Spec Sheet (PDF)

ProtocolEZVIZ cloud proprietary protocol
Interface ProtocolEZVIZ cloud proprietary protocol
Wired NetworkDoes not support
Power Supply InterfaceEU/US/UK Standard Plug
Wi-Fi StandardIEEE802.11b / g / n
Frequency Range2.4 GHz ~ 2.4835 GHz
Channel BandwidthSupports 20 MHz
Security64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
AntennasDual External Antennas
Operating ConditionsTemperature: -10°C to 40°C (14°F to 104 °F ),
Humidity: 95% or less (non-condensing)
Power Supply100V - 220V AC
Power ConsumptionMax 0.6W
Dimension100 × 55 × 35 mm (3.94 × 2.17 × 1.38 inch)
Weight120 g (4.23 oz)
