| Camera |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
3840 × 2160 |
| Min. Illumination |
Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with white light |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
24/7 color imaging |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Audio |
Built-in mic |
| Lens |
| Lens Type |
Fixed focal lens, 2.8, 4mm optional |
| Focal Length & FOV |
2.8 mm, horizontal FOV 104°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 93°, vertical FOV 46°, diagonal FOV 112° |
| Lens Mount |
M16 |
| Iris Type |
Fixed |
| Aperture |
F1.0 |
| Depth of Field |
2.8 mm: 3.4 m to infinity
4 mm: 3.8 m to infinity |
| DORI |
| DORI |
2.8 mm: D: 91 m, O: 36 m, R: 18 m, I: 9 m
4 mm: D: 111 m, O: 44 m, R: 22 m, I: 11 m |
| Illuminator |
| Supplement Light Type |
White Light |
| Supplement Light Range |
Up to 40 m |
| Smart Supplement Light |
Yes |
| Video |
| Main Stream |
50 Hz:
20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR/VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface ( Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported. |
| Client |
iVMS-4200, HiLookVison Web Client, HiLookVision App |
| Web Browser |
Plug-in required live view: IE10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Image Parameters Switch |
Yes |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) |
130 dB |
| SNR |
≥ 52 dB |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Reset Key |
Yes |
| Event |
| Basic Event |
Motion detection, video tampering alarm, exception |
| General |
| Power |
12 VDC ± 25%, 0.69 A, max. 8.5 W, Ø5.5 mm coaxial power plug , reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.27A to 0.17 A, max: 10 W |
| Material |
Metal |

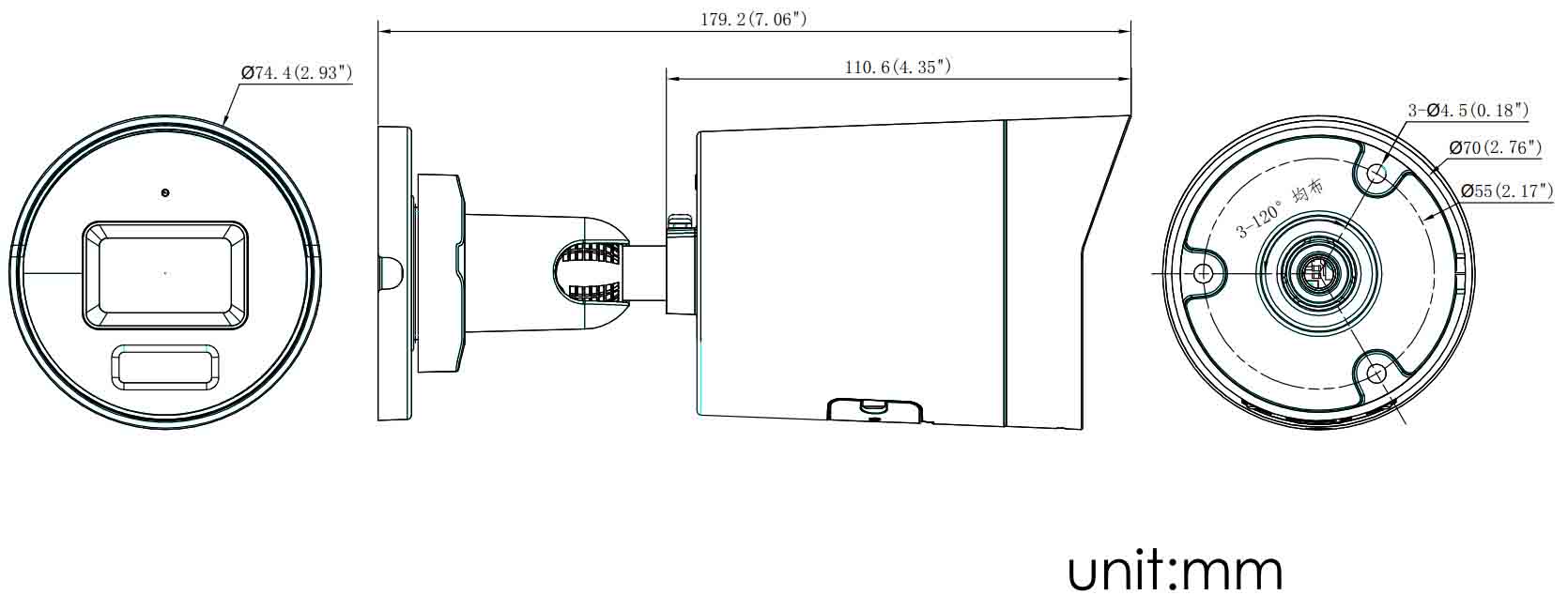

| Dimension |
Ø74.4 mm × 179.2 mm (Ø2.93" × 7.06") |
| Package Dimension |
234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6") |
| Weight |
Approx. 525 g (1.2 lb.) |
| With Package Weight |
Approx. 750 g (1.7 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
English, Ukrainian |
| Approval |
| EMC |
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019,
EN 50130-4: 2011 +A1: 2014,FCC: 47 CFR Part 15, Subpart B |
| Safety |
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment |
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006 |
| Protection |
IP67: IEC 60529-2013 |
