HiLook by Hikvision IPC-B680H-Z 8MP IR Motorised VF Network Bullet Camera (2.8mm - 12mm)
Product ID IPC-B680H-Z

HiLook by Hikvision IPC-B680H-Z 8MP IR Motorised VF Network Bullet Camera (2.8mm - 12mm)

£162.00
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 1/2.5" progressive scan CMOS
  • 3840 × 2160@15fps
  • 2.8 mm to 12 mm vari-focal lens, Horizontal FOV 105° to 34.5°
  • H.265+, H.265, H.264+, H.264
  • Dual stream
  • 120dB WDR
  • 3D DNR
  • Up to 30 m IR range
  • IP67

Download

Manufacturers Spec Sheet (PDF)

Camera
Image Sensor1/2.5" progressive scan CMOS
Min. IlluminationColor: 0.018 Lux @ (F1.6, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Auto-IrisNo
Day &NightIR cut filter with auto switch
3-Axis AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°
DNR (Digital Noise Reduction)3D DNR
WDR (Wide Dynamic Range)120 dB
Lens
Focal Length2.8 to 12 mm
ApertureF1.6
FocusAuto
FOVHorizontal FOV 105° to 34.5°, vertical FOV 55° to 19°, diagonal FOV 125° to 40°
Lens MountΦ14
IR
IR RangeUp to 30 m
Wavelength850nm
Compression Standard
Video CompressionMain stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 TypeBaseline profile/Main profile/High profile
H.264+Main stream supports
H.265 TypeMain profile
H.265+Main stream supports
Video Bit Rate32 Kbps to 16 Mbps
Smart Feature-set
Region of InterestSupport 1 fixed region for main stream
Max. Resolution3840 × 2160
Main Stream50Hz: 12.5fps (3840 × 2160), 20fps (3072 × 1728), 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Max. Frame Rate60Hz: 15fps (3840 × 2160), 20fps (3072 × 1728), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
Max. Frame Rate60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image EnhancementBLC/HLC/3D DNR
Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
Network StoragemicroSD/SDHC/SDXC card (128 G), local storage and NAS (NFS, SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
APIONVIF(PROFILE S, PROFILE G), ISAPI, SDK
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users
3 levels: Administrator, Operator and User
ClientHiLookVision PC Client, HiLookVision App
Web BrowserPlug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service: Chrome 41.0+, Firefox 30.0+
Interface
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
Reset ButtonYes
General
Operating Conditions-30 °C to 60°C (-22 °F to 140°F), humidity: 95% or less (non-condensing)
Power Supply12 VDC ± 25%,
PoE (802.3af), class 3
Power Consumption12 VDC, 1 A, Max. 11 W
PoE (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max. 12.5 W
Ingress ProtectionIP 67, IK 10
MaterialMetal

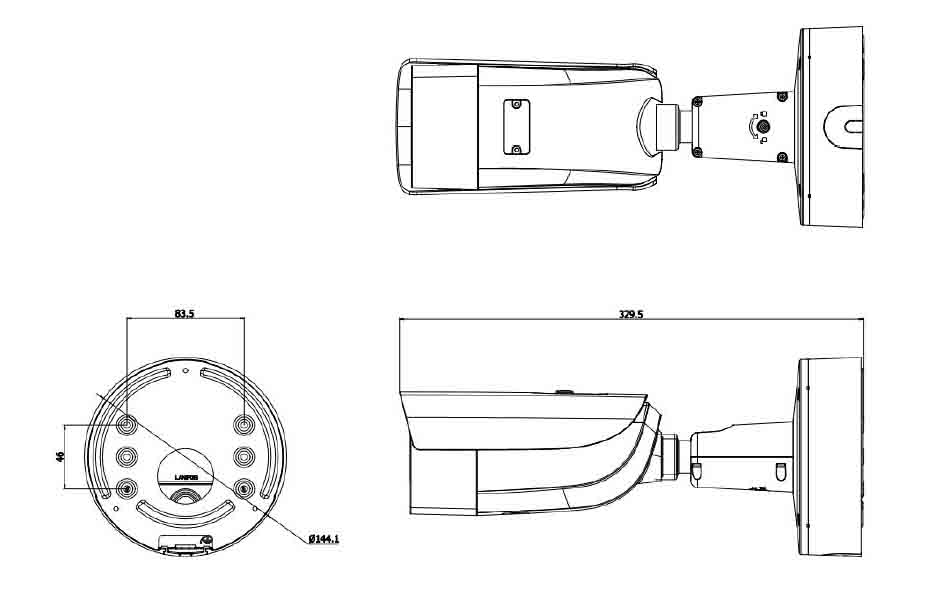

DimensionsCamera: Φ 114.1 × 329.5 mm (Φ 5.4" × 5.0")
With package: 385 mm × 190 mm × 180 mm (6.7" × 6.7" × 5.9")
WeightCamera: Approx. 1335 g (2.9 lb.)
With Package: 2004g (4.4lb.)
