| Camera |
|---|
| Image Sensor | 1/2.5" progressive scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON) |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day &Night | IR cut filter |
| DNR (Digital Noise Reduction) | 3D DNR |
| WDR (Wide Dynamic Range) | 120 dB |
| Angle Adjustment (Bracket) | Pan: 0° to 355°, tilt: 0° to 75° |
| Lens |
|---|
| Focal Length | 2.8 mm, 4 mm |
| Aperture | F2.0 |
| Focus | Fixed |
| FOV | 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 123°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 98° |
| Lens Mount | M12 |
| IR |
|---|
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Compression Standard |
|---|
| Video Compression | Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Smart Feature-set |
|---|
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Image |
|---|
| Max. Resolution | 3840 × 2160 |
Main Stream
Max. Frame Rate | 50Hz: 12.5fps (3840 × 2160, 2560 × 1440, 2304 × 1296, 1920 × 1280, 1280 × 720)
60Hz: 15fps (3840 × 2160, 2560 × 1440, 2304 × 1296, 1920 × 1280, 1280 × 720) |
Sub-stream
Max. Frame Rate | 50Hz: 25fps (640 × 480, 640 × 360)
60Hz: 30fps (640 × 480, 640 × 360) |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, scheduled, day, night |
| * Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream. |
| Audio |
|---|
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2)/16-64Kbps(AAC)/8-320Kbps(MP3) |
| Network |
|---|
| Network Storage | NAS (NFS, SMB/CIFS) Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Alarm Trigger | Motion detection, video tampering, exception |
| Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP, 802.1x, SSL/TLS, PPPoE |
| General Function | Anti-flicker, heartbeat, password protection, password reset via email |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, ISUP |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users
3 levels: Administrator, Operator, and User |
| Client | HiLookVision PC Client, HiLookVision App |
| Web Browser | Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+ |
| Interface |
|---|
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Reset Button | Yes |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| General |
|---|
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.20 A to 0.15 A, Max: 6.5 W |
| Protection Level | IP67, IK10 |
| Material | Front cover: plastic, bottom base: metal |

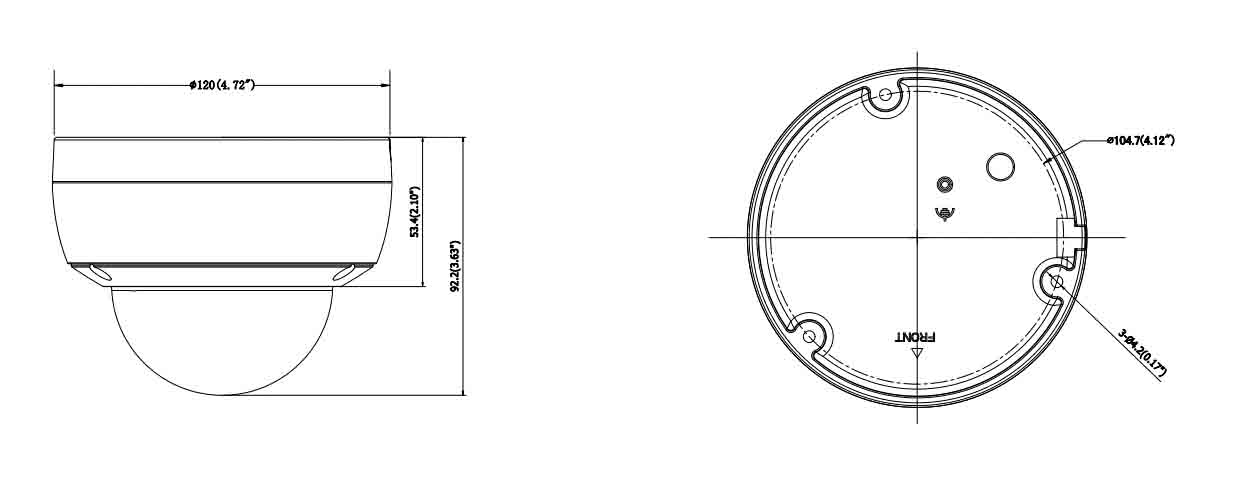

| Dimensions | Camera: Ø120 × 92.2 mm (4.7" × 3.6")
With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Camera: approx. 420 g (0.9 lb.)
With package: approx: 666 g (1.5 lb.) |
