| Specification |
| Camera |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Max. Resolution |
2560 × 1920 |
| Min. Illumination |
Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Day & Night |
24/7 color imaging |
| Angle Adjustment |
Pan: 0° to 360°, tlt: 0° to 90°, rotate: 0° to 360° |
| Lens |
| Focal length |
2.8 mm |
| Aperture |
F1.0 |
| Focus |
Fixed |
| FOV |
2.8 mm, horizontal FOV 95°, vertical FOV 70°, diagonal FOV 125° |
| Lens Mount |
M12 |
| Illuminator |
| Smart Supplement Light |
Yes |
| Supplement Light |
White Light |
| White Light Range |
Up to 30 m |
| Compression Standard |
| Main Stream |
50Hz: 20fps (2560 × 1920), 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream |
50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression |
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
BaseLine Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Region of Interest (ROI) |
1 fixed region for main stream |
| Network |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface (Profile S),ISAPI,SDK |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour,FTP,802.1x,SMTP |
| User/Host |
Up to 32 users; 3 levels: Administrator, Operator and User |
| Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,security audit log, TLS 1.2, host authentication (MAC address) |
Client |
iVMS-4200,HiLookVision |
| Web Browser |
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+ |
| Image |
| Wide Dynamic Range |
120 dB |
| Image Enhancement |
BLC,HLC,3D DNR |
| Image Settings |
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch |
Day,Night,Auto,Schedule |
| Interface |
| Communication Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Intelligent (Traditional Algorithm) |
| Basic Event |
Motion detection,video tampering alarm,exception |
| Linkage Method |
Upload to FTP,notify surveillance center,trigger capture |
| General |
| Power |
12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
| Material |
Aluminum alloy body |

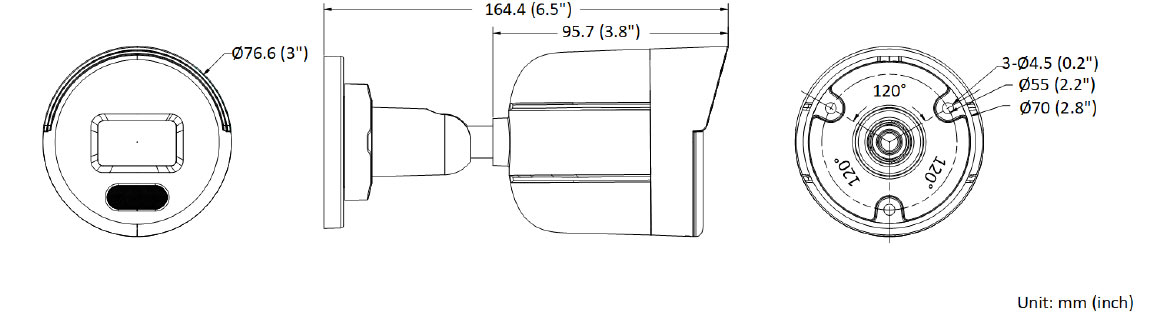

| Dimension |
Ø76.6 mm × 164.4 mm |
| Operating Conditions |
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Weight |
Approx. 425 g (0.9 lb.) |
| Protection |
IP67: IEC 60529-2013 |
| General Function |
Heartbeat,anti-flicker,mirror,password protection,password reset via email |
