| Camera |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Min. Illumination |
0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time |
1/3s ~ 1/100,000s |
| Lens |
2.8mm to 12mm, horizontal field of view 98° to 28° |
| Lens Mount |
Φ14 |
| Day & Night |
ICR |
| IR Range |
up to 30m |
| Adjustment Range: (Manual) |
Pan:0° - 360°, Tilt: 0° - 100°, Rotation: 0° - 360° |
| Digital noise reduction |
3D DNR |
| WDR |
120dB |
| Compression Standard |
| Video compression |
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.264+ Type |
Main stream supports |
| H.265 Type |
Main Profile |
| H.265+ Type |
Main stream supports |
| Bit rate |
32 Kbps ~ 8 Mbps |
| Smart Feature-set |
| Region of Interest |
1 fixed region for main stream and sub-stream |
| Image |
| Max. Image Resolution |
2560 x 1920 |
| Main Stream |
50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720)
60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720) |
| Sub Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Image Enhancement |
BLC, 3D DNR |
| Image settings |
Saturation, brightness, contrast, sharpeness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch |
Auto, scheduled |
| Network |
| Network Storage |
Support Micro SD/SDHC/SDXC card (128G - not included), local storage and NAS (NFS, SMB/CIFS) |
| Alarm trigger |
Motion detection, video tampering alarm, illegal login, network disconnected, IP address conflicted, HDD error, HDD full |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour |
| System Compatibility |
ONVIF (Profile S, Profile G), ISAPI |
| General Function |
One-key reset, heartbeat, mirror, password protection, privacy mask, watermark |
| Interface |
| Communication interface |
1 RJ45 10M / 100M Self adaptive Ethernet port |
| Reset Button |
Yes |
| General |
| Operating Conditions |
-30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 25% , PoE (802.3af, class 3) |
| Power Consumption |
Max. 9W |
| Ingress Protection |
IP67 |
| Material |
Camera body & bracket: Metal, sunshield: Plastic |

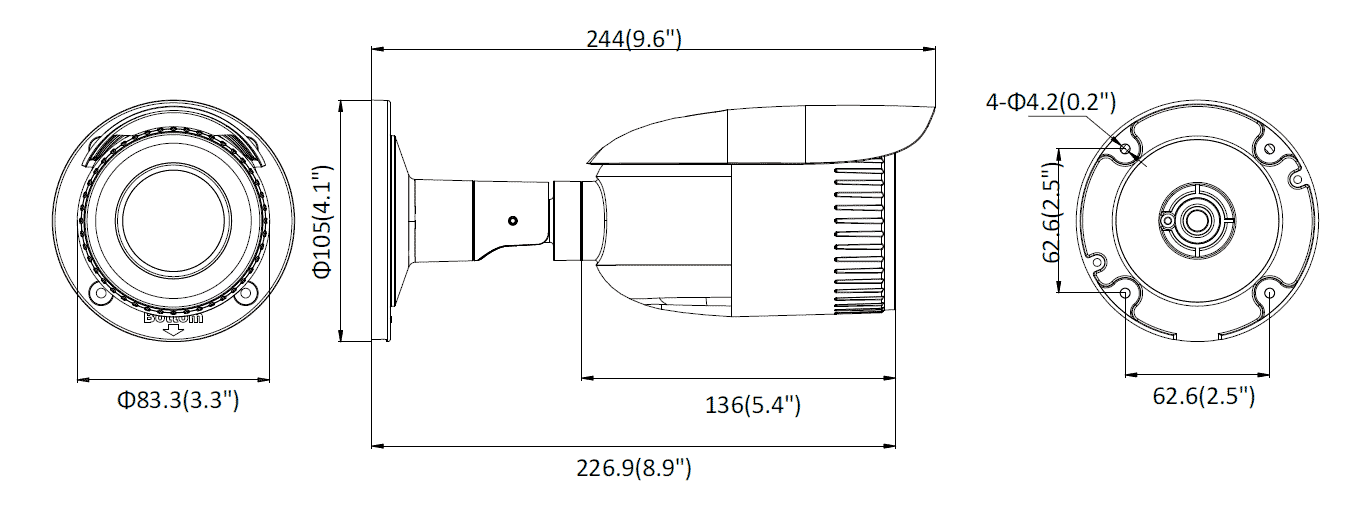

| Dimensions |
105mm x 244mm |
| Weight |
Approx. 1150g |
