| Camera |
|---|
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Max. Resolution | 3632 × 1632 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens |
|---|
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm; Horizontal FOV 180°, Vertical FOV 77° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI |
|---|
| 2.8 mm | D: 42 m, O: 16 m, R: 8 m, I: 4 m |
| Illuminator |
|---|
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video |
|---|
| Main Stream | 50 Hz: 20 fps (3632 × 1632); 60 Hz: 20 fps (3632 × 1632) |
| Sub-Stream | 50 Hz: 20 fps (1200 × 536, 960 × 432); 60 Hz: 20 fps (1200 × 536, 960 × 432) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Audio |
|---|
| Audio Type | Mono sound |
| Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32–160 Kbps (MP2L2) / 16–64 Kbps (AAC-LC) |
| Network |
|---|
| Security | Password protection, complicated password, watermark; basic & digest authentication for HTTP; WSSE and digest authentication for ONVIF; security audit log; host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, user |
| Client | iVMS-4200, HiLookVision |
| Web Browser | Plug-in required live view: IE 11; Local service: Chrome 80+, Firefox 80+, Edge 89+ |
| Image |
|---|
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance; adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface |
|---|
| Ethernet | 1 × RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot; supports microSD/microSDHC/microSDXC, up to 512 GB |
| Built-in Microphone | Yes, 1 built-in microphone |
| Built-in Speaker | Yes, 1 built-in speaker; Max. power consumption: 2 W; Max. sound pressure level (10 cm): 97 dB |
| Reset Key | Yes |
| Event |
|---|
| Basic Event | Motion detection (supports alarm triggering by specified target types — human and vehicle), video tampering alarm, exception |
| Linkage | Upload to FTP, upload to memory card, send email, notify surveillance center, trigger recording, trigger capture, audible warning, strobe light flashing |
| General |
|---|
| Power | 12 VDC ± 25%, 0.83 A, max. 10 W, Ø 5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 11.5 W |
| Material | Base: Metal; Cover: Plastic |

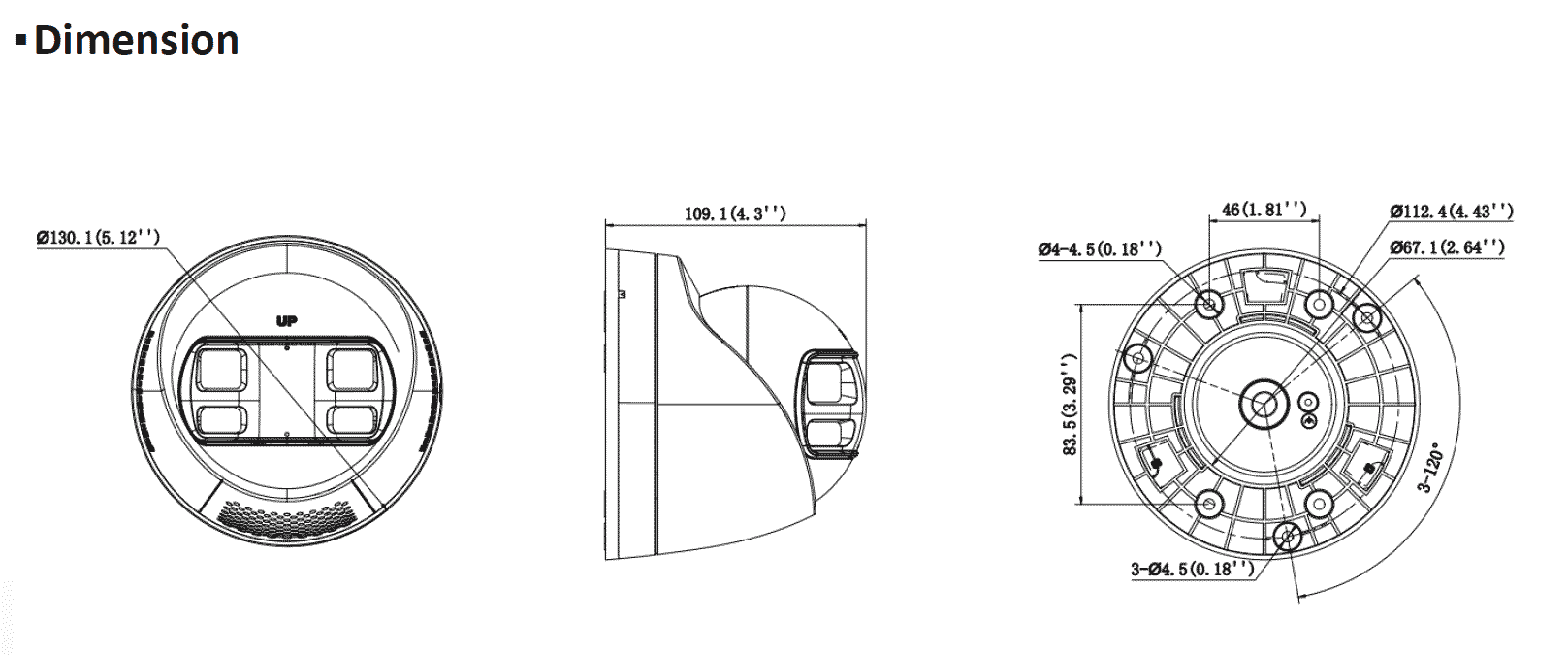

| Dimension | Ø 130.1 mm × 109.1 mm (Ø 5.1" × 4.3") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 580 g (1.3 lb.) |
| With Package Weight | Approx. 760 g (1.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F); Humidity 95% or less (non-condensing) |
| Startup & Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F); Humidity 95% or less (non-condensing) |
| Language | English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian |
| General Function | Heartbeat, anti-banding, password protection, password reset via email |
| Flashing Light | /SRB model: Red and Blue Light; /SL model: White Light |
| Approval |
|---|
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015 |
| Safety | CB: IEC 62368-1: 2014+A11 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; REACH: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
| Available Models & Accessories |
|---|

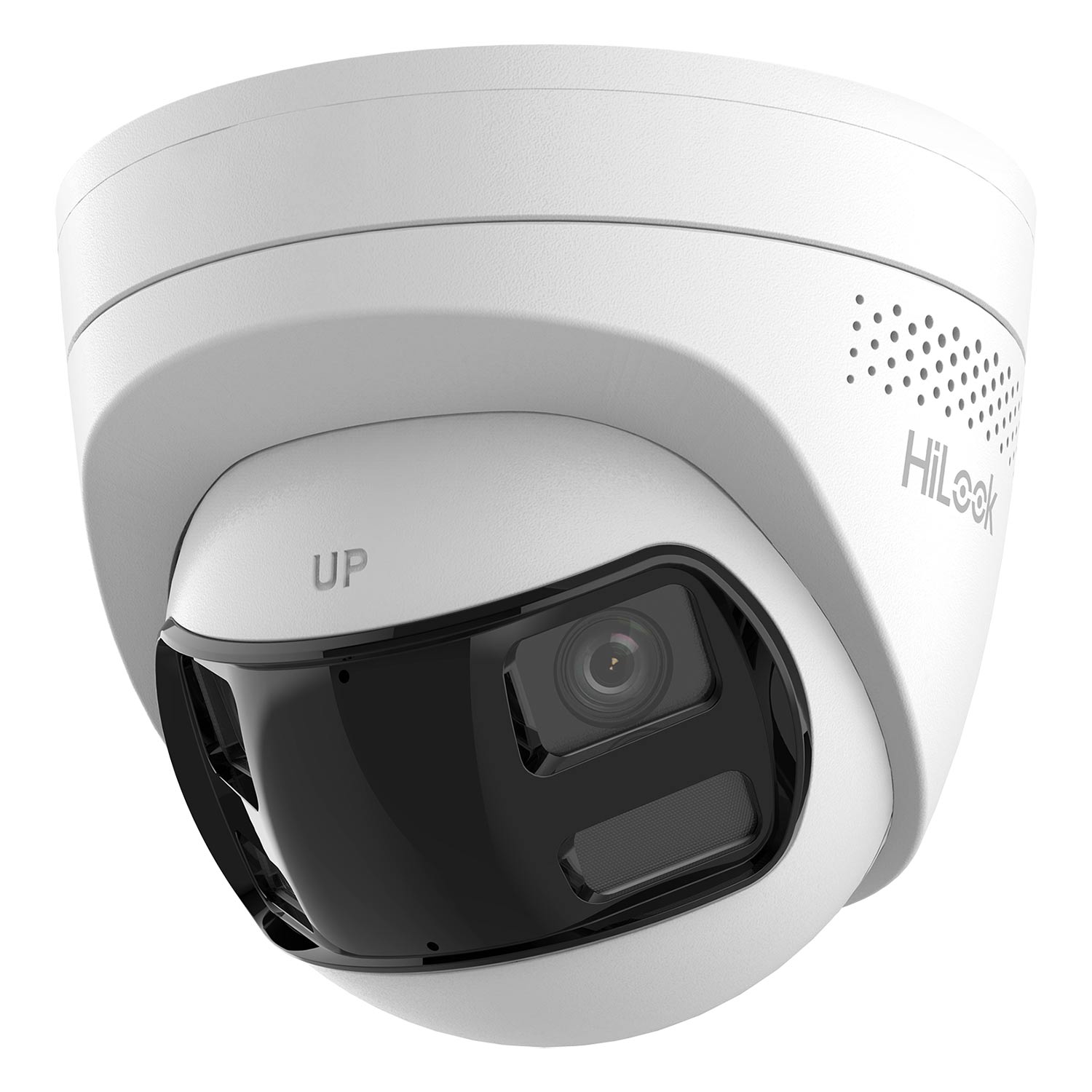

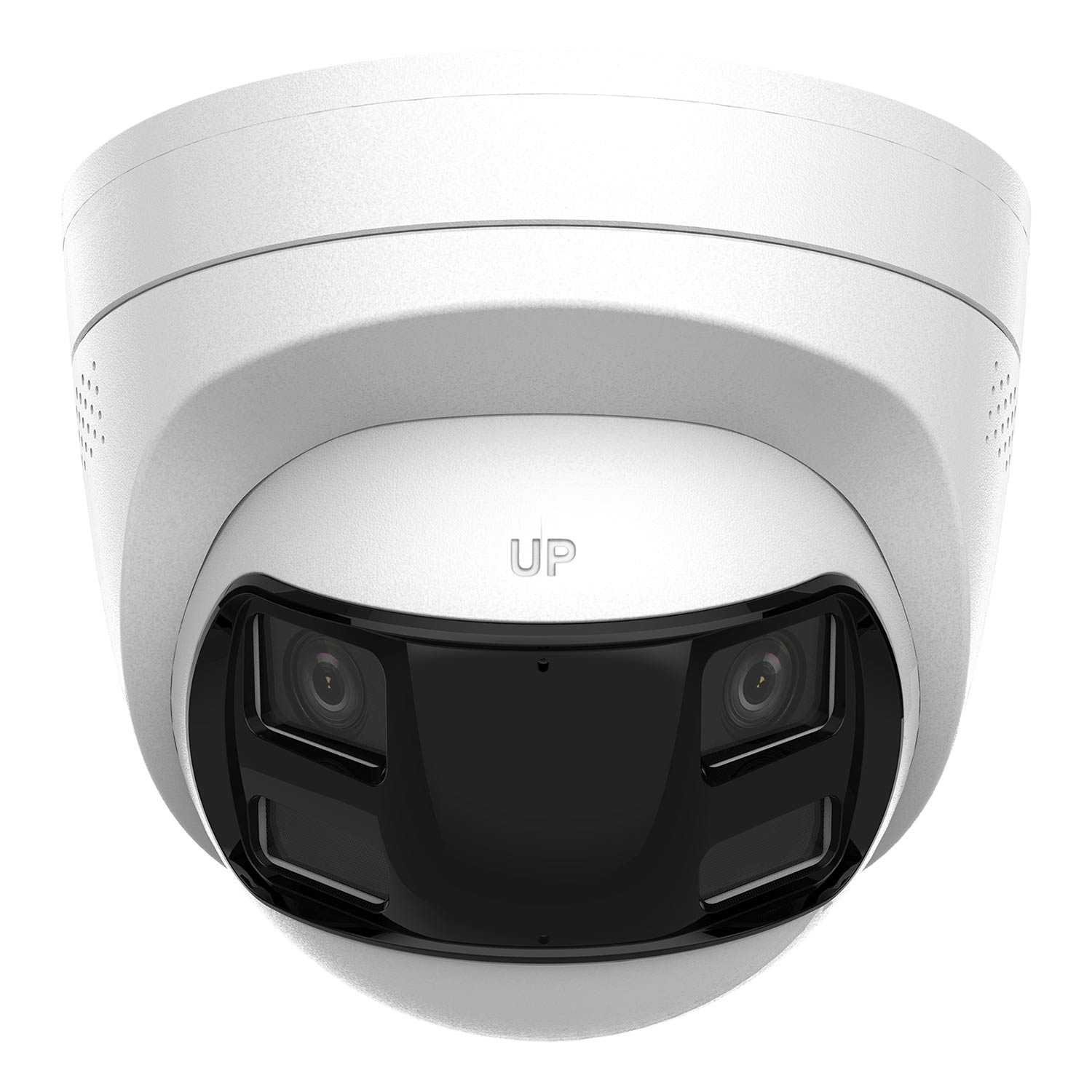

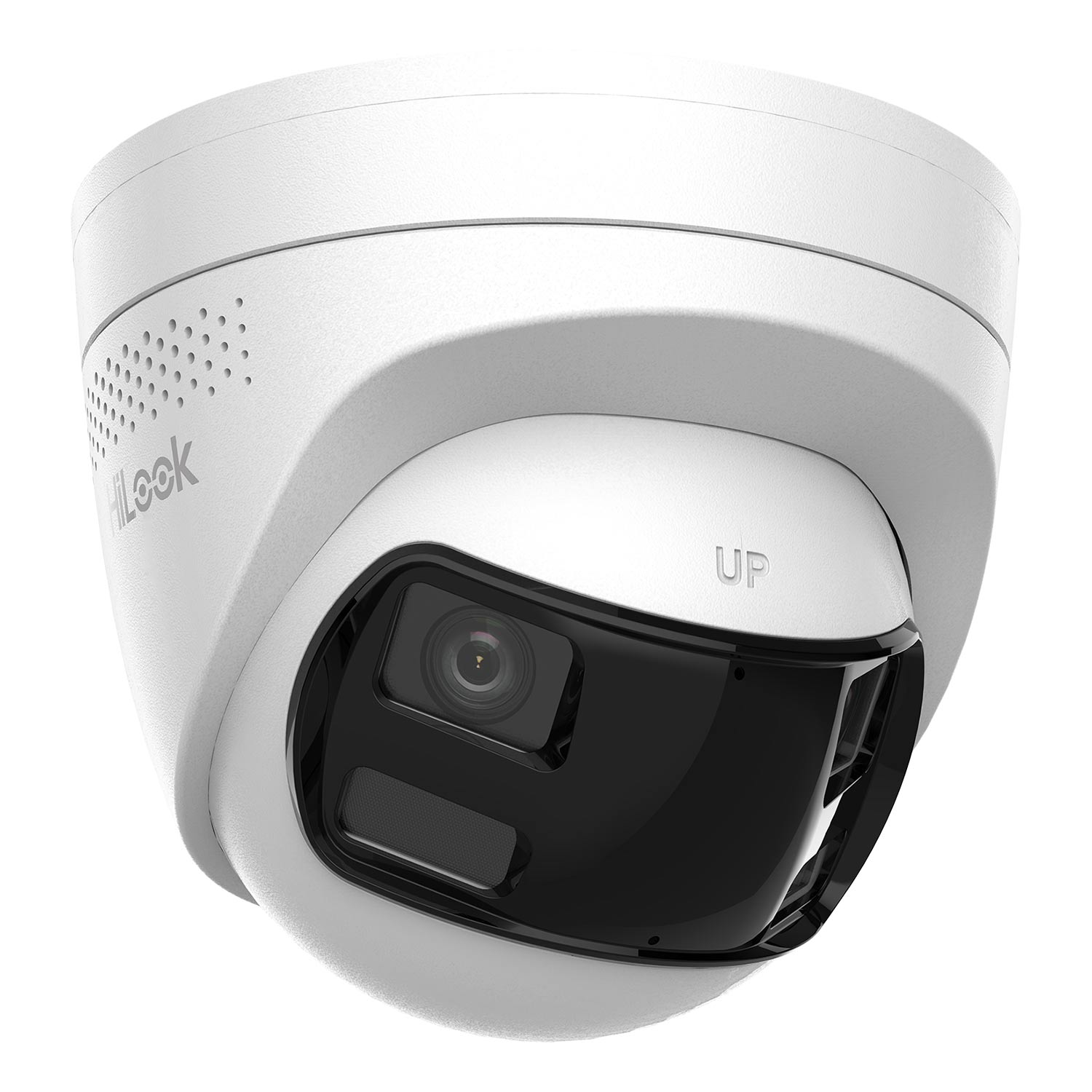

| Available Models | IPC-T260HAD-LUF/SL (2.8 mm); IPC-T260HAD-LUF/SRB (2.8 mm) |
| Optional Accessories | DS-1273ZJ-130-TRL (Wall mount); DS-1280ZJ-DM21 (Junction box); DS-1281ZJ-M (Inclined ceiling mount) |
