| Camera |
| Image Sensor |
1/2.5" Progressive Scan CMOS |
| Min. Illumination |
0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time |
1/3s ~ 1/100,000s |
| Lens |
2.8mm - horizontal field of view 102°
4mm - horizontal field of view 83° |
| Lens Mount |
M12 |
| Day & Night |
ICR |
| IR Range |
up to 30m |
| Adjustment Range: (Manual) |
Pan:0° - 360°, Tilt: 0° - 75°, Rotation: 0° - 360° |
| Digital noise reduction |
3D DNR |
| WDR |
120dB |
| Compression Standard |
| Video compression |
H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 code profile |
Baseline Profile/Main Profile/High Profile |
| Bit rate |
32 Kbps ~ 16 Mbps |
| Smart Feature-set |
| Region of Interest |
1 fixed region for main stream and sub-stream |
| Audio |
| Environment Noise Filtering |
Yes |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate |
64 Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2)/16-64Kbps(AAC)/8-320Kbps(MP3) |
| Image |
| Max. Image Resolution |
3840 x 2160 |
| Main Stream |
50Hz: 12.5 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream |
50Hz: 25 fps (640 × 480, 640 × 360)
* Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream. |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Image settings |
Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser |
| Day/Night Switch |
Auto, scheduled, day, night |
| Network |
| Network Storage |
Supports micro SD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Alarm trigger |
Motion detection, video tampering, exception |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP, 802.1x, SSL/TLS, PPPoE |
| System Compatibility |
Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP |
| General Function |
Anti flicker, hearbeat, password protection, password reset via email |
| Interface |
| Communication interface |
1 RJ45 10 M / 100 M Self adaptive Ethernet port |
| Built-in Microphone |
Yes |
| On-board Storage |
Built-in micro SD/SDHC/SDXC slot, up to 256 GB (SD Card not included) |
| Hardware Reset |
Yes |
| General |
| Operating Conditions |
-30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 25% , PoE (802.3af, class 3) |
| Power Consumption |
Max. 5W |
| Ingress Protection |
IP67 |
| Material |
Metal & Plastic |

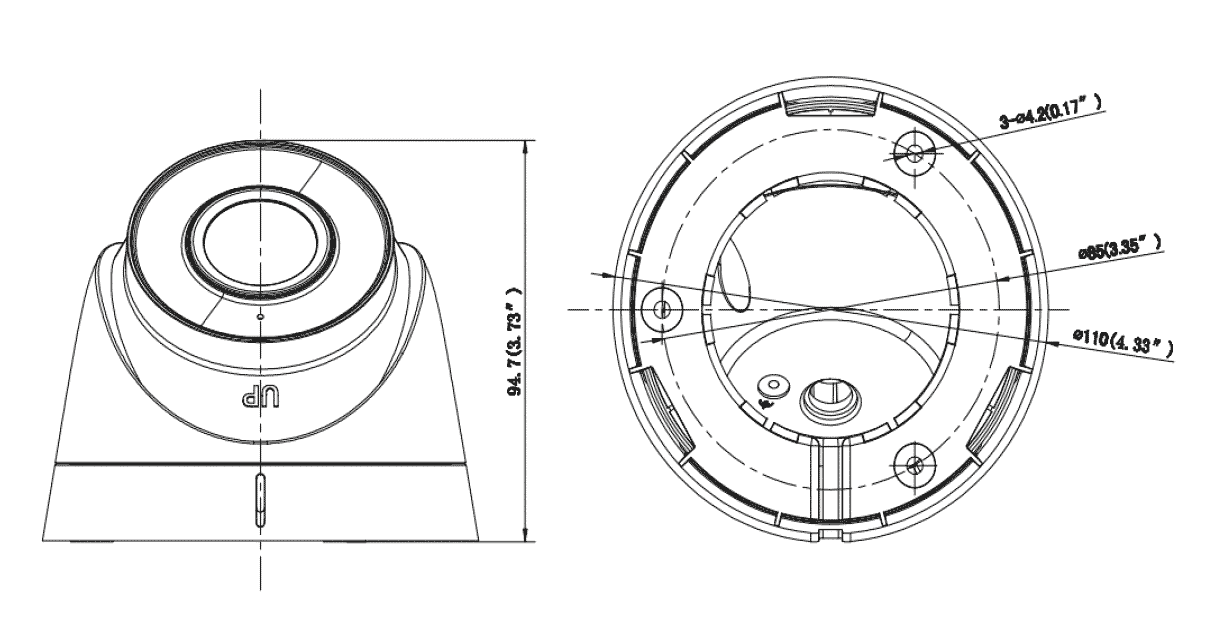

| Dimensions |
Ø 110 × 85 mm |
| Weight |
Approx. 390g |
