IPC-T651H-Z HiLook by Hikvision 120dB WDR 5MP H.265 Motorised Zoom IP Turret Camera with 30m Night Vision & PoE
Product ID IPC-T651H-Z

IPC-T651H-Z HiLook by Hikvision 120dB WDR 5MP H.265 Motorised Zoom IP Turret Camera with 30m Night Vision & PoE

£119.00
In Stock 0
Sold out

0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec

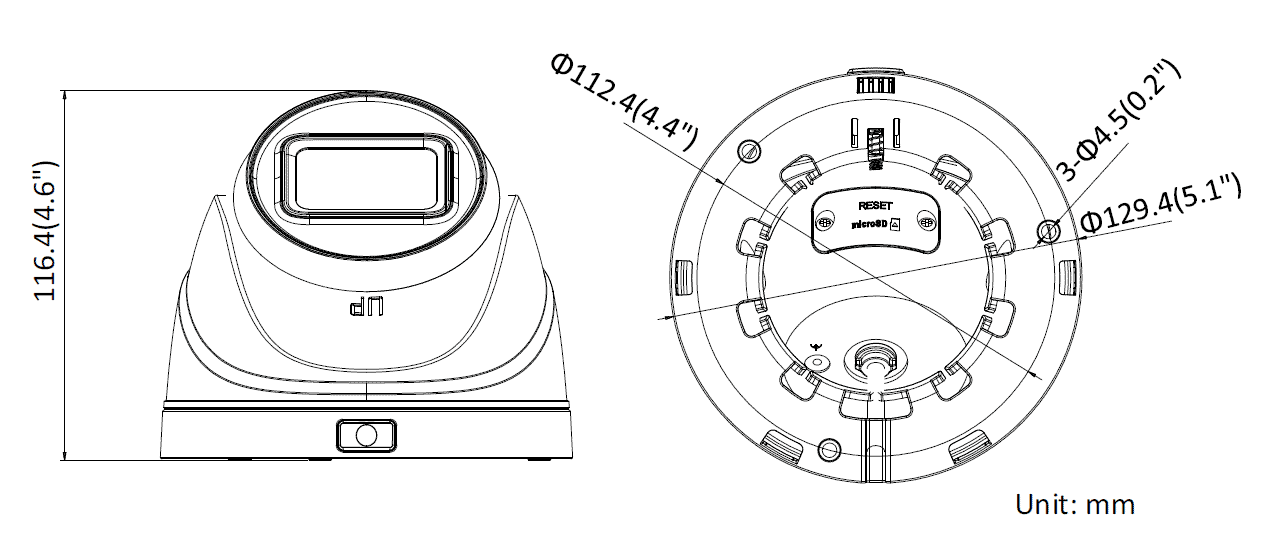

  • Diagram

Description

The HiLook IPC-T651H-Z is a 5 megapixel (1560 x 1920) Motorised Zoom Vari-focal lens true day/night Turret camera with True 120dB WDR. The camera has built in IR with a range of up to 30m and is housed in an IP67 rated housing. Some of the great features this camera includes are region of interest, day/night function and True 120dB wide dynamic range. The camera can be powered over ethernet (PoE) for quick and easy installation when used with the plug and play features of our HiLook Series by Hikvision NVRs.

This is one of the new H.265/H.265+ models saving you considerable bandwidth and recording space in comparison to the older H.264 models.

Key Features

  • 5 megapixel (2560 × 1920) high resolution
  • 1/2.7” progressive scan CMOS
  • 2.8-12mm Motorised Zoom Lens
  • 120dB Wide Dynamic Range
  • 3D DNR (Digital Noise Reduction)
  • up to 30m IR
  • PoE
  • IP67, IK10
  • Support micro SD/SDHC/SDXC card (max 128G) Local storage

Download

Manufacturers Spec Sheet (PDF)

Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/3s ~ 1/100,000s
Lens 2.8mm to 12mm - horizontal field of view 98° to 28°
Lens Mount Φ14
Day & Night ICR
IR Range up to 30m
Adjustment Range: (Manual) Pan:0° - 360°, Tilt: 0° - 75°, Rotation: 0° - 360°
Digital noise reduction 3D DNR
WDR 120dB
Compression Standard
Video compression Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Type Main stream supports
H.265 Type Main Profile
H.265+ Type Main stream supports
Bit rate 32 Kbps ~ 8 Mbps
Smart Feature-set
Region of Interest 1 fixed region for main stream and sub-stream
Max. Image Resolution 2560 x 1920
Main Stream 50Hz: 12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720)
60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement BLC, 3D DNR
Image settings Saturation, brightness, contrast, sharpeness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, scheduled
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G - not included), local storage and NAS (NFS, SMB/CIFS)
Alarm trigger Motion detection, video tampering alarm, illegal login, network disconnected, IP address conflicted, HDD error, HDD full
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
System Compatibility ONVIF (Profile S, Profile G), ISAPI
General Function One-key reset, heartbeat, mirror, password protection, privacy mask, watermark
Interface
Communication interface 1 RJ45 10M / 100M Self adaptive Ethernet port
Reset Button Yes
General
Operating Conditions -30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25% , PoE (802.3af, class 3)
Power Consumption Max. 12.5W
Ingress Protection IP67
Material Camera Body: Metal, Bottom base: Plastic
Dimensions Φ129.4 x 116.4mm
Weight Approx. 450g
