| SPECIFICATION | KESTREL-5-TUR-FW |
| CAMERA |
|---|
| Image Sensor |
1/2.7” Progressive scan CMOS Sensor |
| Min. Illumination |
0.01 lux(Colour), 0 lux(IR on) |
| Lens / Lens Mount |
3.6mm@ horizontal FOV:77° , vertical FOV:56°diagonal FOV: 103° |
| IR |
14 x 18pcs SMD LED |
| IR Range |
30m |
| Smart IR |
Support |
| Shutter Time |
Auto/Manual, 1/3~1/10000s |
| Day/Night |
IR cut filter with auto switch |
| Wide Dynamic Range |
DWDR |
| Digital Noise Reduction |
2D / 3D DNR |
| COMPRESSION STANDARD |
|---|
| Video Compression |
H.264/H.264+/H.265/H.265+ |
| H.264 Codec Profile |
Base / Main / High profile |
| H.265 Codec Profile |
Main profile |
| Video Bit Rate |
11 Kbps ~ 10Mbps |
| Audio Compression |
n/a |
| Audio Bit Rate |
n/a |
| IMAGE |
|---|
| Max. Image Resolution |
5MP(2592 × 1944) |
| Frame Rate |
50Hz:15fps 5MP(2592 × 1944)
25fps 4MP(2560 × 1440),25fps 4MP(2304 × 1728)
25fps 3MP(2048 × 1536),25fps 1080P(1920 × 1080)
25fps 960P(1280 × 960)
|
| Sub Stream |
50Hz:25fps D1(704 × 576),25fps CIF(352 × 288) |
| Image Setting |
Brightness/Contrast/Saturation/Hue/Sharpness |
| BLC / HLC / ROI / Defog |
Supported |
| NETWORK |
|---|
| Network Storage |
N/A |
| Protocols |
TCP/IP,ICMP,HTTP,HTTPS,DHCP,DNS,DDNS,RTP,RTSP,
RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P,Bonjour,IPV6 (NO FTP) |
| Event |
Motion Detection, Video Shelter |
| Smart Functions |
N/A |
| System compatibility |
Onvif (Profile S), CGI |
| Security |
User authentication, IP address filtering, Video mask |
| Mobile Surveillance |
iPhone, iPad, Android, CMS, WEB |
| INTERFACE |
|---|
| Communication Interface |
1 RJ45 10M / 100M Ethernet Port |
| GENERAL |
|---|
| Operating Conditions |
-30°C ~ +60°C (-22°F ~ +140°F) Humidity 95% or less (non-condensing) |
| Power Supply |
DC12V ± 10% |
| POE Supply |
PoE (802.3af) |
| Power Consumption |
Max. 8.5W |
| Weather Proof |
IP66 |
| Dimensions |

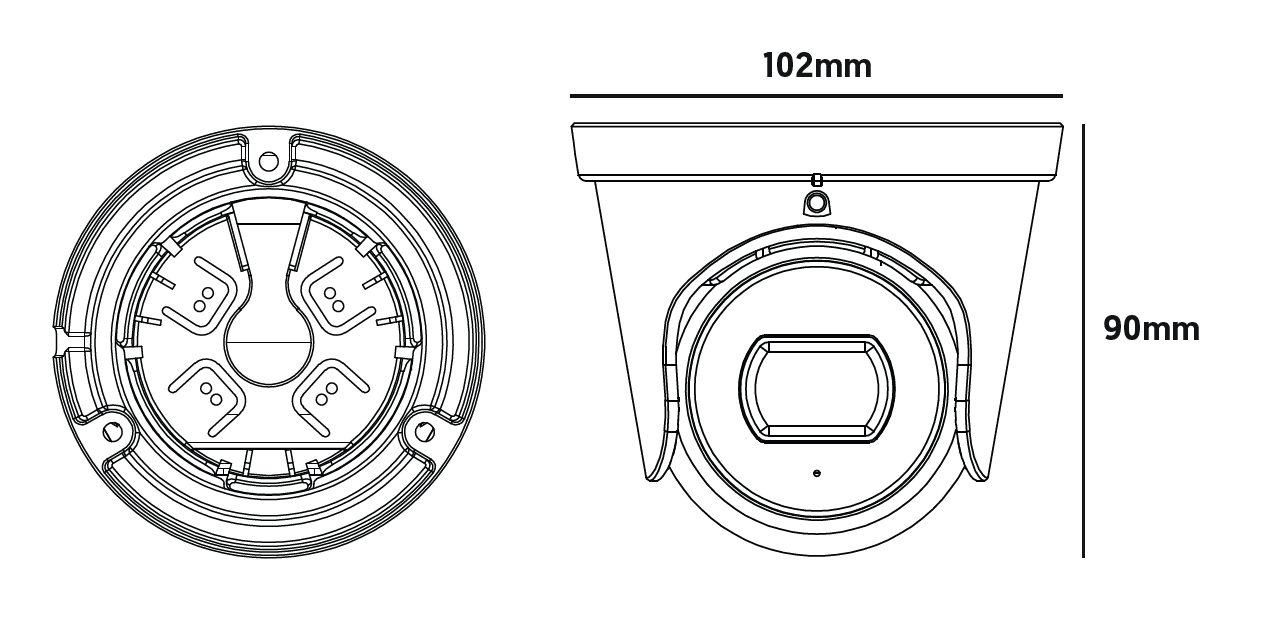

ø102*90mm |
| Weight |
420g |
