| Camera |
| Image Sensor |
1/4" progressive scan CMOS |
| Min. Illumination |
0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time |
1/3s ~ 1/100,000s |
| Lens |
2.8mm @ F2.0 - horizontal field of view 92° |
| Adjustment Range: (Manual) |
Pan:0° - 360°, Tilt: 0° - 180°, Rotation: 0° - 360° |
| Day & Night |
IR cut filter with auto switch |
| Digital noise reduction |
3D DNR |
| WDR |
Digital WDR |
| Compression Standard |
| Video compression |
Main Stream H.264
Sub Stream H.264 / MJPEG |
| H.264 Type |
Baseline profile / Main profile |
| Bit rate |
32 Kbps ~ 2 Mbps |
| Image |
| Max. Image Resolution |
1280 × 720 |
| Main Stream |
50Hz: 25fps @( 1280 × 720) |
| Sub Stream |
50Hz: 25fps @(640 × 480, 352 × 288, 320 × 240) |
| Image settings |
Saturation, brightness, contrast, sharpeness adjustable through client software or web browser |
| Day/Night Switch |
Support auto, scheduled |
| Others |
Mirror, BLC (area configurable), region of interest (support 1 fixed region) |
| Network |
| Detections |
Motion detection |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| System Compatibility |
ONVIF (Profile S), ISAPI |
| General Function |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| Interface |
| Communication interface |
1 RJ45 10M / 100M Self adaptive Ethernet port |
| General |
| Operating Conditions |
-30 °C ~ 60 °C (-22°F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 25% , PoE (802.3af) |
| Power Consumption |
Max. 4W |
| Weather Proof Ratings |
IP67 |
| IR Range |
up to 30m |

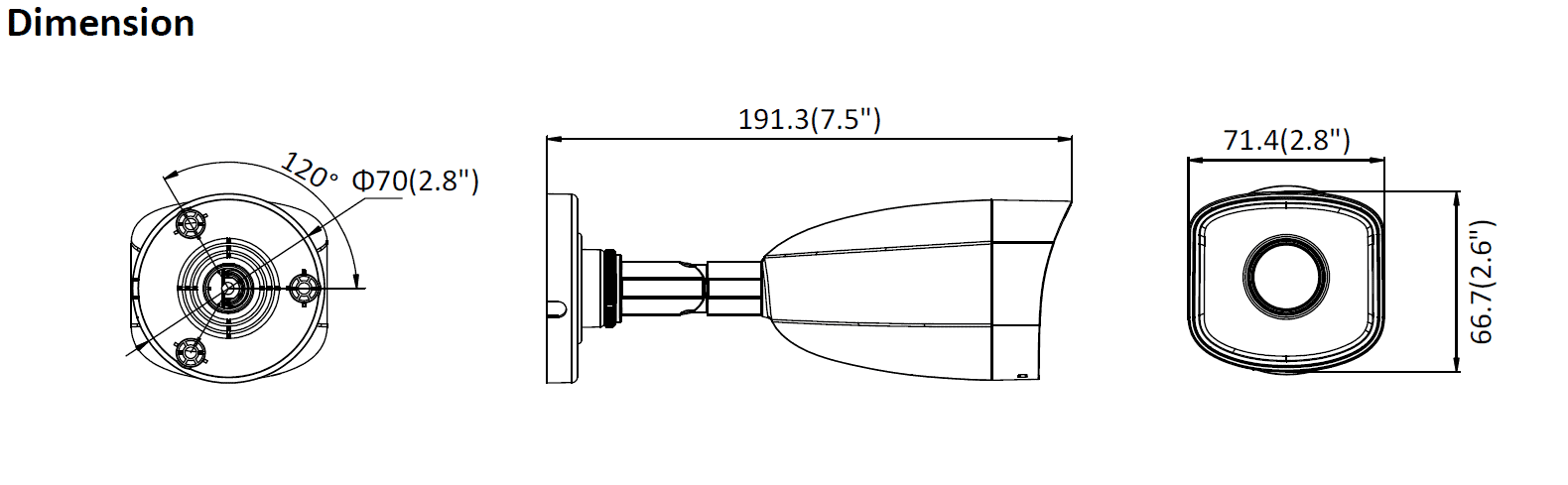

| Dimensions |
70mm x 191.3mm |
| Weight |
Approx. 500g |
