OPEN BOXED ANP04B P HiLook by Hikvision 4 Channel 4MP Mini NVR with 4 PoE Ports (DOA Warranty ONLY)

Product ID OP-ANP04B-P

0 reviews | Write a review

£6.00

In Stock 0

**OPEN BOXED** ANP04B P HiLook by Hikvision 4 Channel 4MP Mini NVR with 4 PoE Ports (DOA Warranty ONLY)

**OPEN BOXED** ANP04B P HiLook by Hikvision 4 Channel 4MP Mini NVR with 4 PoE Ports (DOA Warranty ONLY) #1

**OPEN BOXED** ANP04B P HiLook by Hikvision 4 Channel 4MP Mini NVR with 4 PoE Ports (DOA Warranty ONLY) #2

£6.00

Free Shipping

Summary
Full Spec

About the OP-ANP04B-P

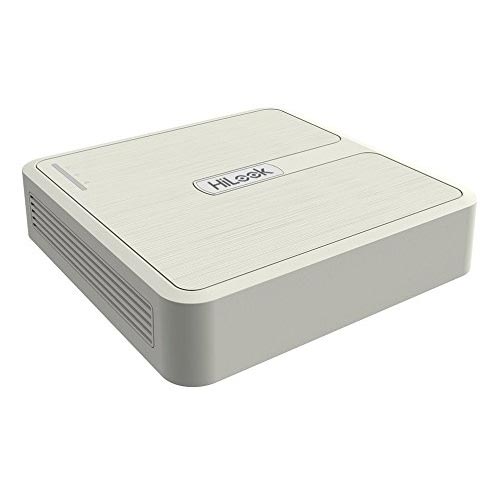

The ANP04B-P is a HiLook by Hikvision 4 channel 4MP mini NVR with 4 built in PoE ports. This one is open boxed, with a DOA warranty only.

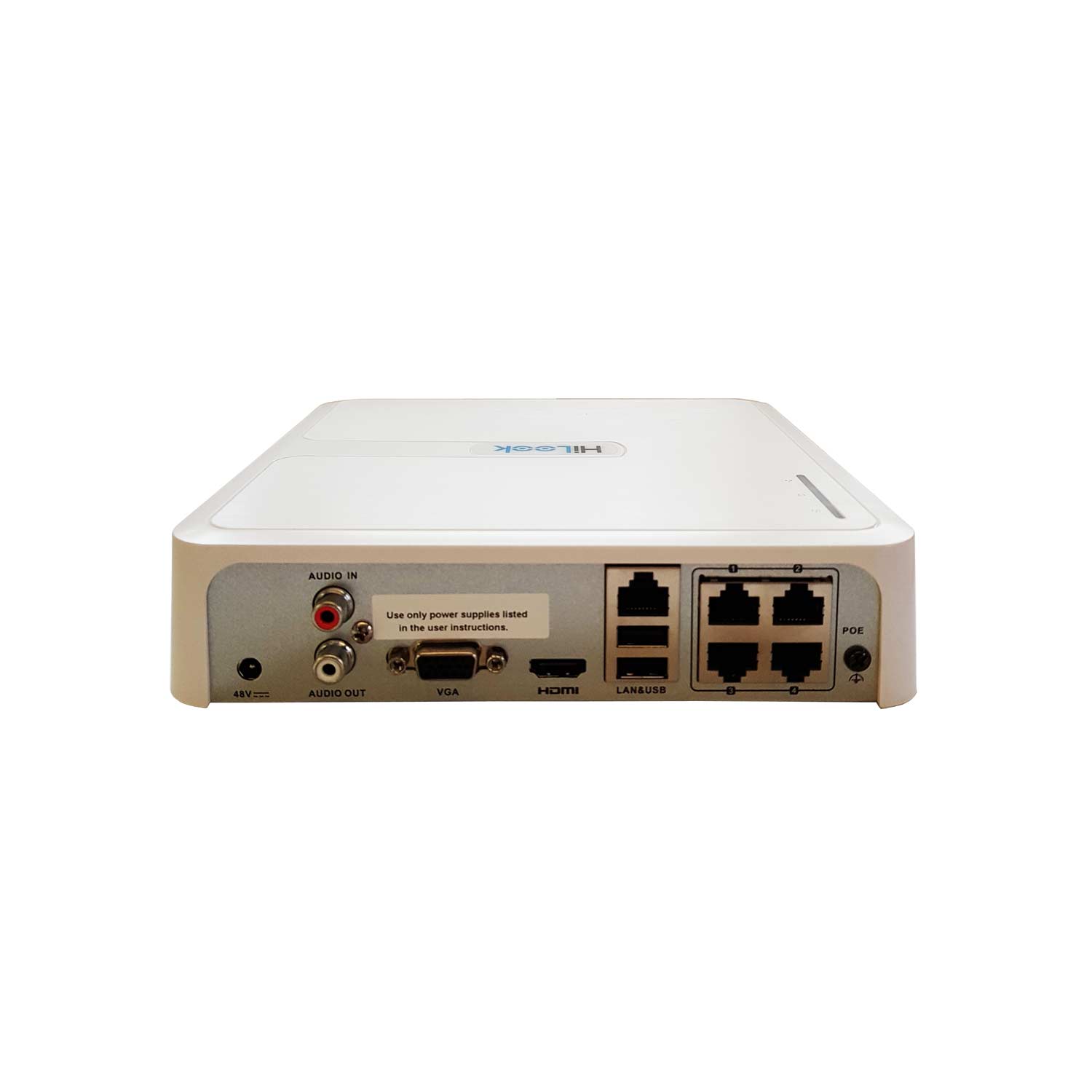

Each camera plugs straight in with one network cable for power and video. It records cameras up to 4MP and has HDMI and VGA outputs. The hard drive isn't included.

Key Features

4CH Video Input
4CH Synchronous Playback
40Mbps
Up to 4 Megapixels resolution recording
HDMI and VGA Output
4 independent PoE network interfaces

Download

Manufacturers Spec Sheet (PDF)

IP video input	4CH
Two-way audio input	1CH, RCA (2.0 Vp-p, 1 kΩ)
Incoming bandwidth	40Mbps
Outgoing bandwidth	40Mbps
Recording resolution	4MP / 3MP / 1080p / 1.3MP / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
HDMI / VGA output	1CH, resolution: 1920 x 1080P /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Audio output	1-ch, RCA (Linear, 1 kΩ)
Live View / Playback resolution	4MP / 3MP / 1080P / 1.3MP / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Decoding	2ch @ 4MP / 4ch @ 1080P
SATA	1 SATA interface
Capacity	Up to 6TB
Network interface	1 RJ-45 10 / 100 Mbps self-adaptive Ethernet interface 4 independent 100 Mbps PoE Ethernet interfaces
USB interface	2, USB2.0
Alarm Input	n/a
Alarm Output	n/a
Power supply	48V DC
Consumption	Max 10W (without HDD)
Working temperature	-10 °C ~ +55 °C
Working humidity	10% ~ 90%
Dimensions (W x D x H)	200 x 205 x 48mm
Weight	Approx. 1Kg (without hdd)
