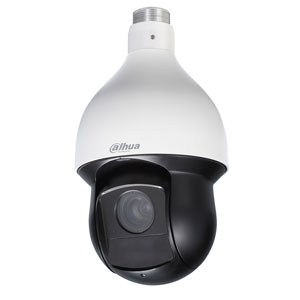

SD59220I-HC Dahua HD-CVI 1080P 20X Pan Tilt & Zoom Camera with 100M Night Vision
Product Code SD59220I-HC

SD59220I-HC Dahua HD-CVI 1080P 20X Pan Tilt & Zoom Camera with 100M Night Vision

Login for Price
0 reviews | Write a review
3 Year Warranty
HD-CVI CCTV

  • Summary
  • Full Spec

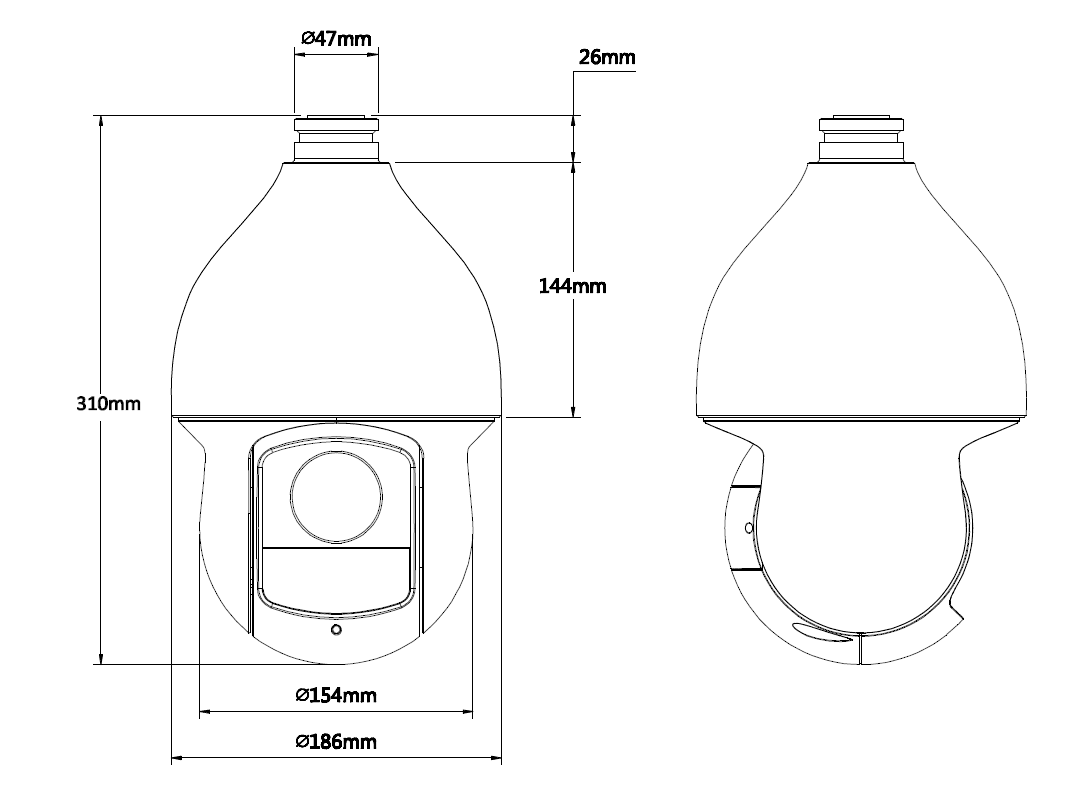

  • Diagram

Description

This is an amazing camera, it provides full HD 1080P resolution and has full control of Pan Tilt & Zoom - with up to 20 Times Zoom!

As with all HD-CVI the control of the Pan Tilt & Zoom - as long as used in conjunction with Dahua HD-CVI DVR - is via the coax cable, so no need for running additional data/rs485 cables, both video & data use the same single coax cable!.

To complement this Zoom the SD59220I-HC also has built in IR night vision allowing you to see up to 100 metre's in complete darkness - so you wont miss a thing day or night!.

Key Features

  • 20x optical zoom
  • Max. 25fps @ 1080P (1920 x 1080) & 20/50fps @ 720P resolution
  • DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
  • Max 400°/s pan speed, 360° endless pan rotation
  • Control over coaxial cable, long distance real-time transmission
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protoco
  • IR Distance up to 100m
  • IP66
  • Includes PDB300S wall bracket & PSU

Download

Manufacturers Spec Sheet (PDF)

Compatibility

To make full use of the motorised pan tilt & zoom lens we strongly advise using with Dahua HD-CVI recorders only.

Camera
Image Sensor 1/2.8” Exmor CMOS
Effective Pixels 1920(H) x 1080(V), 2Megapixels
Scanning System Progressive
Electronic Shutter 1/1s~1/30,000s
Min. Illumination Colour: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4; 0Lux (IR on)
S/N Ratio More than 50dB
Resolution 25fps@1080P, 25/50fps@720P
Video Output 1-channel BNC HDCVI high definition video output
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR (Digital WDR)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction 2D/3D
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 4.7mm~94mm (20x Optical zoom)
Max Aperture F1.4~ F2.6
Focus Control Auto / Manual
Angle of View H: 54.1° ~ 3.2°
Close Focus Distance 100mm ~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed Pan: 400° /s; Tilt: 300° /s
Preset 300(DH-SD),255(Pelco-P/D)
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol DH-SD, Pelco-P/D (Auto recognition)
IR Distance 100m
Audio
Interface 1 channel In
Auxiliary Interface
RS485 1
Alarm 2/1 channel In/Out
General
Power Supply AC24V/3A (±10%)
Power Consumption 12W, 25W (IR on)
Working Environment -40°C~+70°C / Less than 90%RH
Ingress Protection IP66
Dimensions Φ186.0(mm) x 310(mm)
Weight 3.5kg
