| Image Sensor |
1/2.8” CMOS |
| Effective Pixels |
1944(H) x 1092(V), 2 Megapixels |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
1/1~1/30,000s |
| Min. Illumination |
Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6 |
| S/N Ratio |
more than 55dB |
| Camera Features |
| Day/Night |
Auto(ICR) / Color / B/W |
| Backlight Compensation |
BLC / HLC / DWDR |
| White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control |
Auto/Manual |
| Noise Reduction |
2D / 3D |
| Privacy Masking |
Up to 24 areas |
| Digital Zoom |
16x |
| Lens |
| Focal Length |
4.5mm ~ 135mm (30x Optical zoom) |
| Max Aperture |
F1.6~ F4.4 |
| Focus Control |
Auto / Manual |
| Angle of View |
H: 67.8° ~ 2.77° |
| Close Focus Distance |
100mm ~ 1000mm |
| PTZ |
| Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° |
| Manual Control Speed |
Pan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s |
| Preset Speed |
Pan: 400° /s; Tilt: 300° /s |
| Preset |
300 |
| PTZ Mode |
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup |
Human-oriented focal length/ speed adaptation |
| Power up Action |
Auto restore to previous PTZ and lens status after power failure |
| Idle Motion |
Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period |
| IR Distance |
80m (DC12V) / 100m (AC24V) |
| Video |
| Compression |
H.264 / MJPEG |
| Resolution |
1080P(1920 x 1080) / 720P(1280 x 720) / D1(704 x 576) / CIF(352 x 288) |
| Frame Rate - Main Stream |
1080P(1 ~ 25fps)/ 720P (1 ~ 50fps) |
| Frame Rate - Sub Stream 1 |
D1/CIF(1 ~ 25fps) |
| Frame Rate - Sub Stream 2 |
720P/D1/CIF(1 ~ 25fps) |
| Bit Rate |
H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps |
| Audio |
| Compression |
G.711a / G.711Mu(32kbps)/ PCM(128kbps) |
| Interface |
1/1 channel In/Out |
| Network |
| Ethernet |
RJ-45 (10/100Base-T) |
| Network Function |
IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| ONVIF |
ONVIF PSIA CGI |
| Max. User Access |
20 users |
| Smart Phone |
iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot |
Micro SD, Max 128GB |
| RS485 |
n/a |
| Alarm |
2/1 channel In/Out |
| General |
| Power Supply |
AC24V/ DC12V, POE plus(802.3at) |
| Power Consumption |
DC12V: 13W, 20W (IR on)
AC24V: 13W, 23W (IR on) |
| Working Environment |
DC12V: -30ºC ~ 60ºC / Less than 90% RH
AC24V: -40ºC ~ 70ºC / Less than 90% RH |
| Ingress Protection |
IP66 |

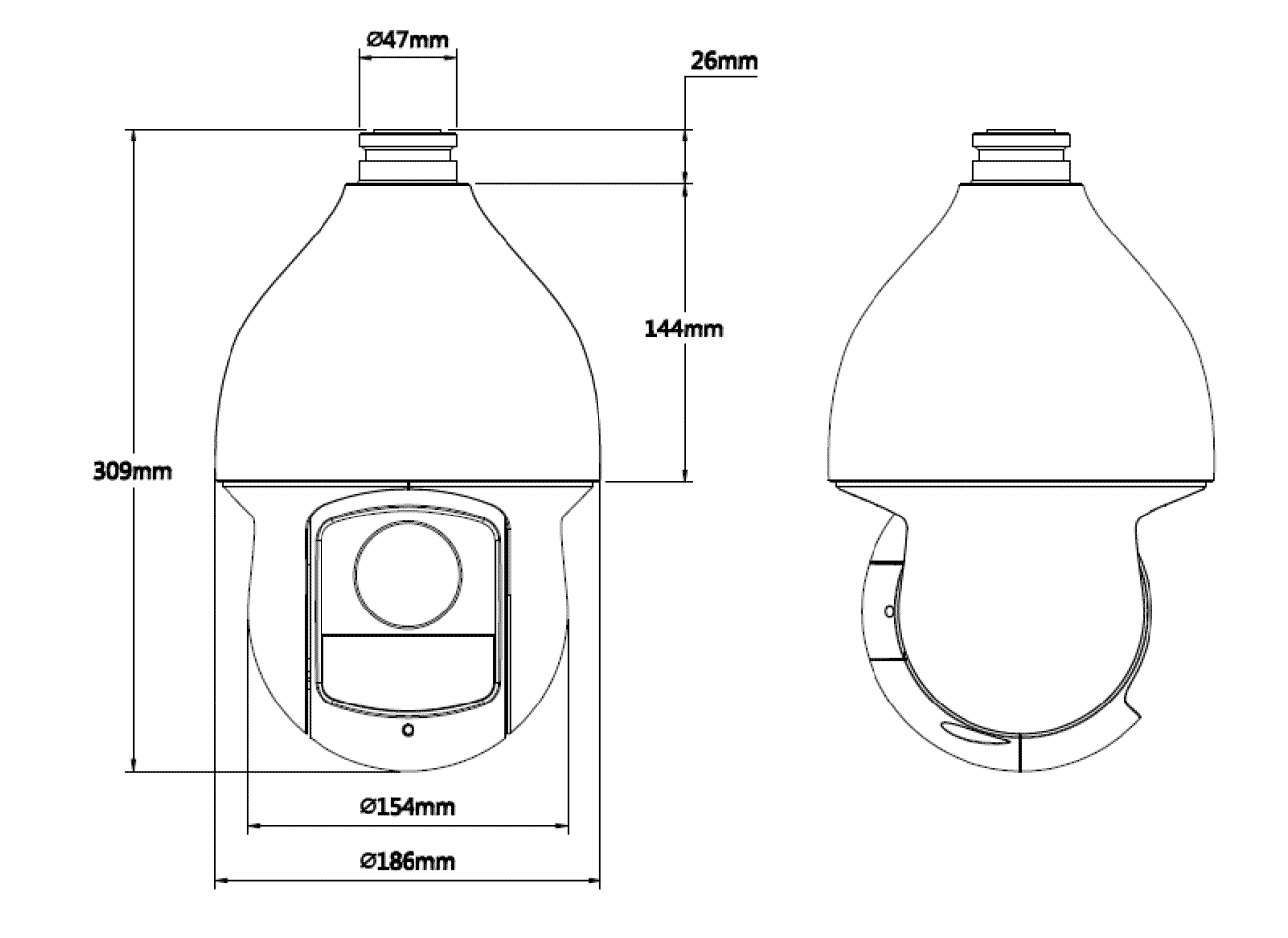

| Dimension |
Φ186.0(mm) x 309(mm) |
| Weight |
3.5kg |
