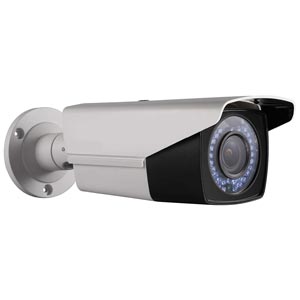

THC-B220-V HiWatch by Hikvision HD-TVI 1080P Manual Zoom Bullet Camera with 40M IR Night Vision
Product Code THC-B220-V

THC-B220-V HiWatch by Hikvision HD-TVI 1080P Manual Zoom Bullet Camera with 40M IR Night Vision

£36.00
0 reviews | Write a review
3 Year Warranty
HD-TVI CCTV

  • Summary
  • Full Spec

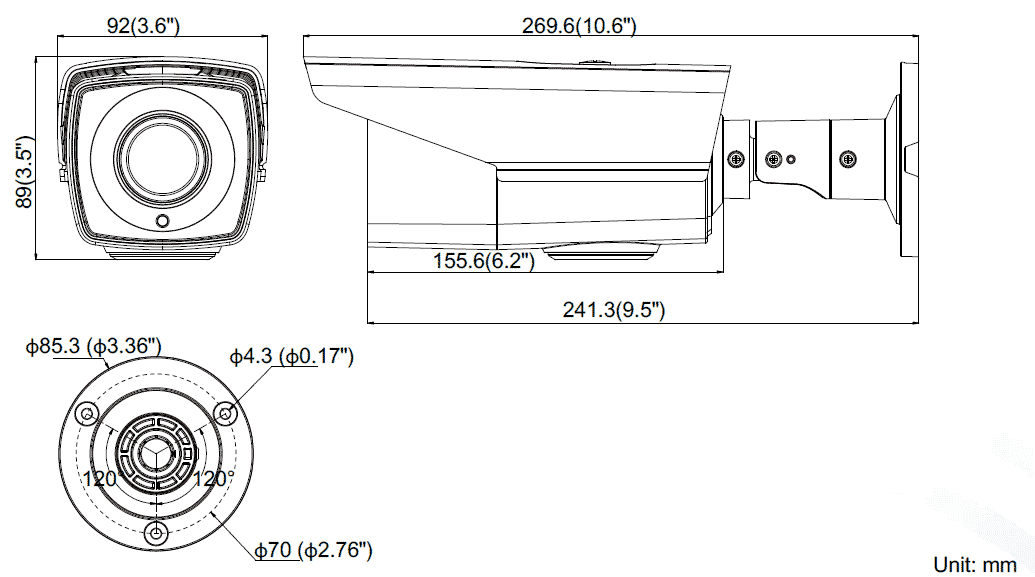

  • Diagram

Description

The THC-B220-V is part of the HiWatch Series by Hikvision.

It offers 1080P HD resolution at very competitive price, ideal for home or small business security. This camera can be installed indoors or outdoors and provides night vision up to a maximum of 40 metres.

The THC-B220-V has a Manual Zoom Vari-focal 2.8-12mm lens which provides an angle of view of 102° to 32° - suitable for many applications.

Key Features

  • 2 Megapixel High Performance CMOS
  • Analogue HD output, up to 1080P
  • 2.8-12mm Vari-focal lens
  • True Day/Night, DNR, Smart IR
  • up to 40m EXIR distance
  • Switchable TVI / AHD / CVI / CVBS
  • IP66 weatherproof

Download

Manufacturers Spec Sheet (PDF)

Compatibility

We strongly advise using with HD-TVI recorders.

Camera
Image Sensor 2 MP CMOS image sensor
Effective Pixels 1920 (H) × 1080 (V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 2.8-12mm - Angle of View: 102° to 32°
Day & Night ICR
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 1080P @25fps
HD Video Output 1 Analog HD output
S/N Ratio Over 62dB
General
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4W
Weather Proof Ratings IP66
IR Range up to 40m
Dimensions 92mm × 84.8mm × 269.6mm
Weight Approx. 900g


Product Reviews

Be the first to review this product

Review product
