Product ID THC-B230-36

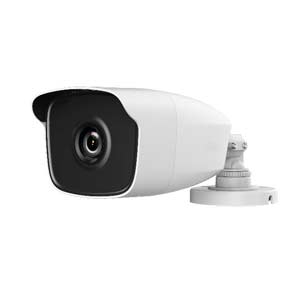

THC-B230 HiWatch by Hikvision HD-TVI 3MP Bullet Camera with 40M IR Night Vision

Was £25.00save £13.00
In Stock 0
0 reviews | Write a review
3 Year Warranty

Free Shipping

  • Summary
  • Full Spec
  • Diagram


The THC-B230 is part of the HiWatch Series by Hikvision.

It offers 3MP better than HD resolution at very competitive price, ideal for home or small business security. This camera can be installed indoors or outdoors and provides night vision up to a maximum of 40 metres.

The THC-B230 has a 3.6mm lens which provides an angle of view of 70.9° - suitable for many applications.

Key Features

  • 3 Megapixel High Performance CMOS
  • Analogue HD output, up to 3MP
  • 3.6mm fixed lens - FOV 70.9°
  • True Day/Night, DNR, Smart IR
  • up to 40m EXIR distance
  • IP66 weatherproof


Manufacturers Spec Sheet (PDF)


We strongly advise using with 3MP (or above) HD-TVI recorders.

Image Sensor 3 MP CMOS image sensor
Effective Pixels 2052 (H) × 1536 (V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 3.6mm - Angle of View: 70.9°
Lens Mount M12
Day & Night ICR
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 1920 × 1536@18fps
HD Video Output 1 Analog HD output
S/N Ratio Over 62dB
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4W
Weather Proof Ratings IP66
IR Range up to 40m
Dimensions Ø 75.4 mm × 230.8 mm × 152.8 mm
Weight Approx. 560g

Product Reviews
Be the first to review this product
