iSentry 5MP HD Wireless IP CCTV System with 4 WiFi Cameras
Product ID WIFI44B-5MP

iSentry 5MP HD Wireless IP CCTV System with 4 WiFi Cameras

£99.00
0 reviews | Write a review
1 Year Warranty
IP CCTV

  • Summary
  • Camera Spec
  • NVR Spec

Description

Here we have a 5MP WiFi IP Camera Kit from iSentry, overall we are very impressed with this system - it is perfect for the DIY CCTV installer who does not want to be running cables all round/through their property. Of course, do keep in mind even wireless cameras need to be connected to a power source - so you still might need to drill holes for the power cable. Just so you know the Power supplies that come with the cameras only have a short lead (approx 1.5 Metres) so you might need the power extension cables from our accessories section available in 5 Metres or 10 Metres.

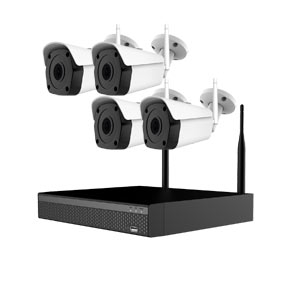

The kit includes 4 cameras - each supplied with a power supply - and the Network video Recorder with optional hard drive. Recording times vary depending on settings etc but as a rule of thumb we estimate 1000 GB equals 4 days (4 cameras @ 5MP set to 15fps), 2000Gb would be double that (approx 8 Days) and 4000Gb double again (approx 16 Days) etc, etc...

The system is very easy to get up and running, all you have to do is switch on the recorder and cameras in close range and they will auto detect and start displaying the footage. Then you can install the cameras where required (be sure to check the signal strength before you start drilling into walls).

Once set up and recording you can then network the system and download the "Bitvision" app on to your smart phone and view your cameras at will - there is a user manual that comes with the system (see link below) which explains this procedure - again this is very simple to get up and running and does not require any difficult port forwarding - all you need to do is enter the ID or scan the QR code - Simples!

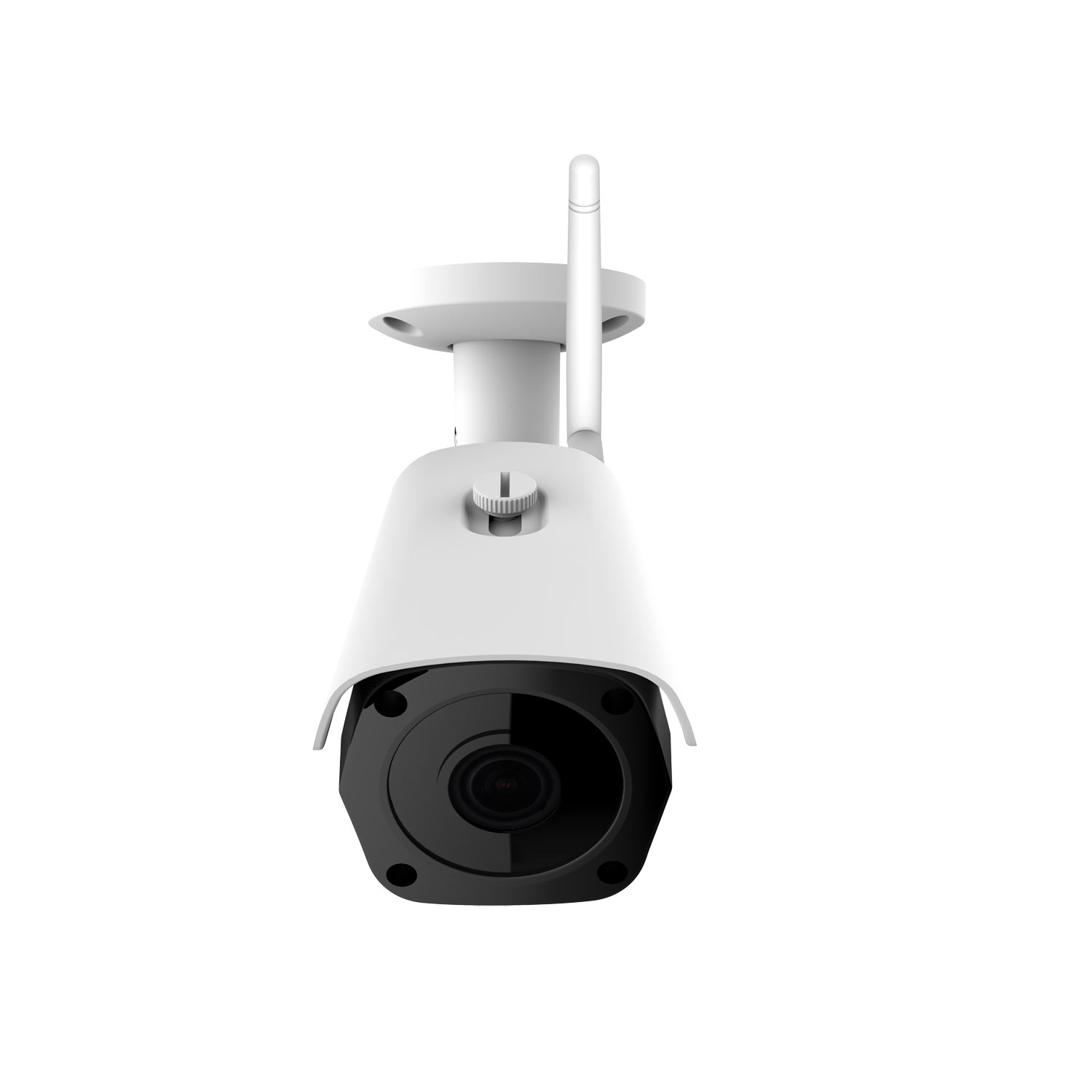

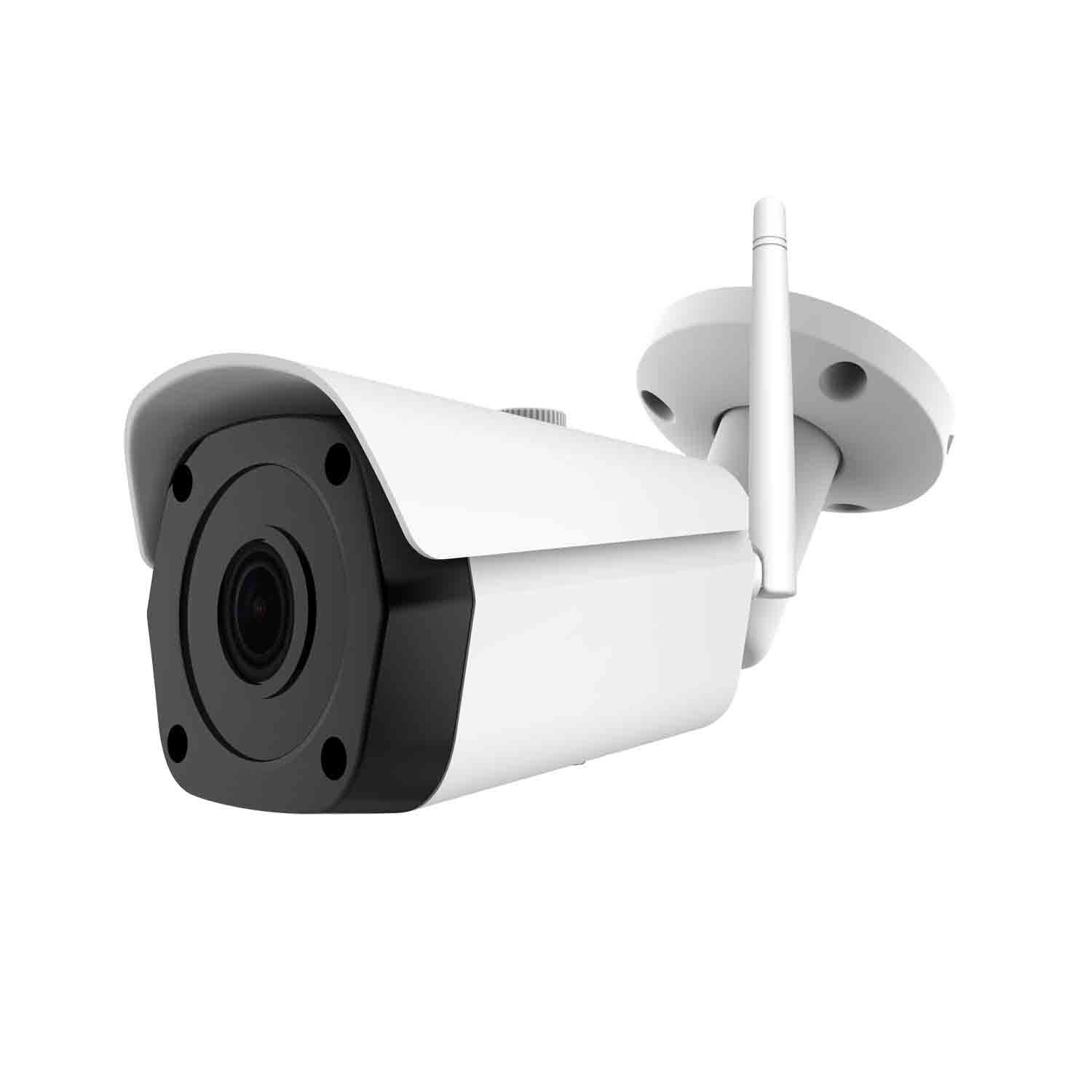

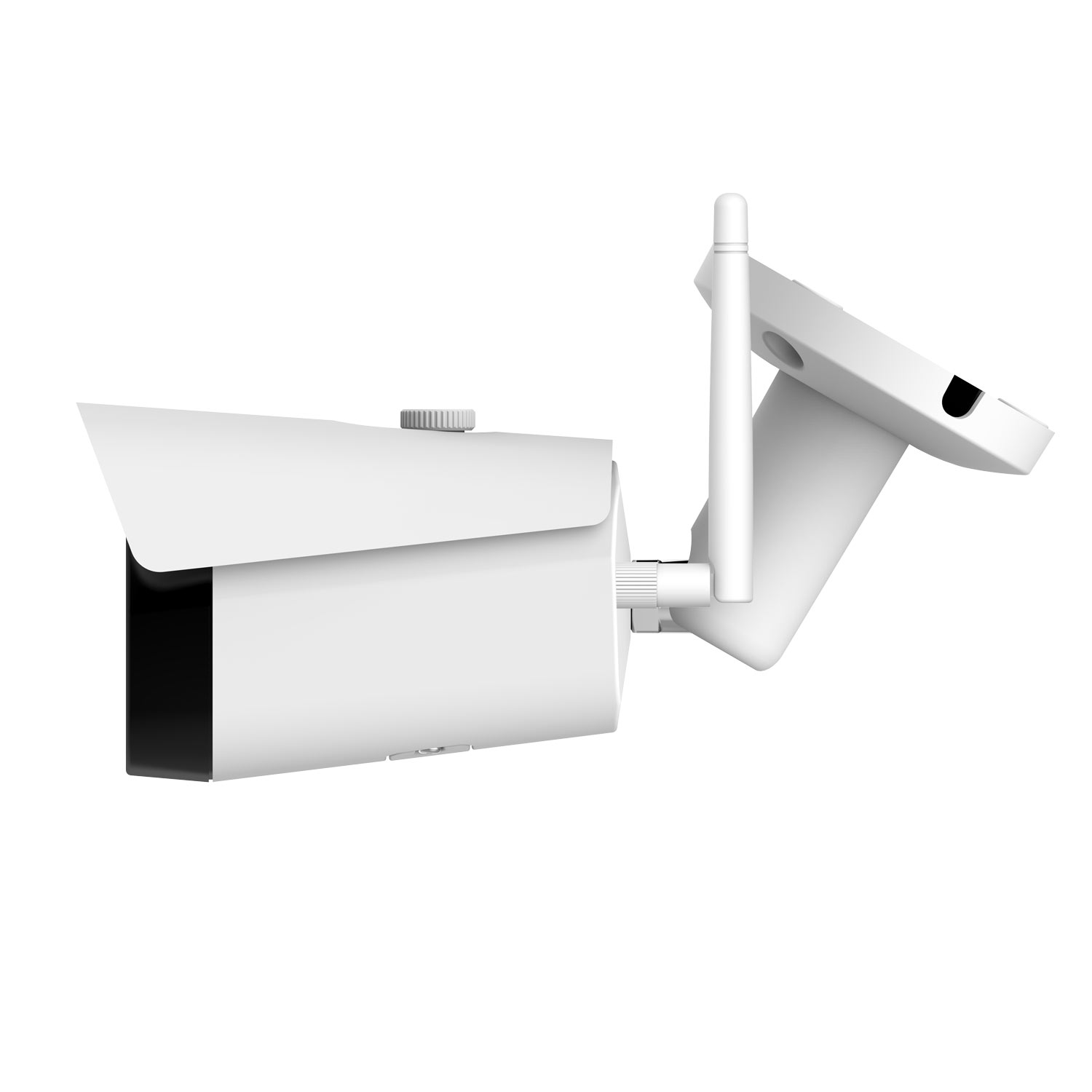

Camera Features

  • 1/2.5" High-resolution CMOS Sensor
  • 3.6mm Fixed Lens
  • 5MP, 2704 x 1950 @15fps or below
  • Supports H.264/H.264+/H.265/H.265+
  • up to 25m IR Night Vision
  • IP66

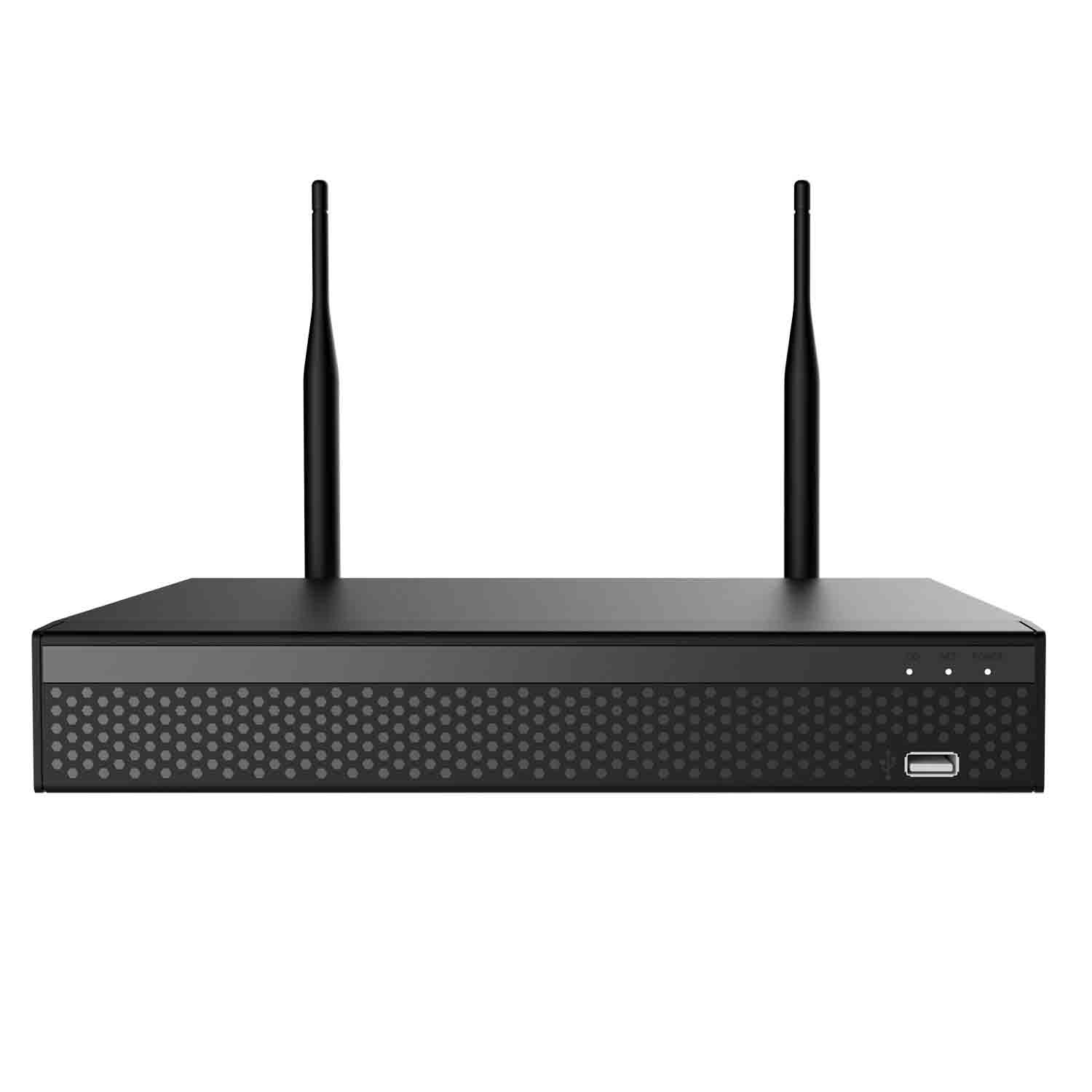

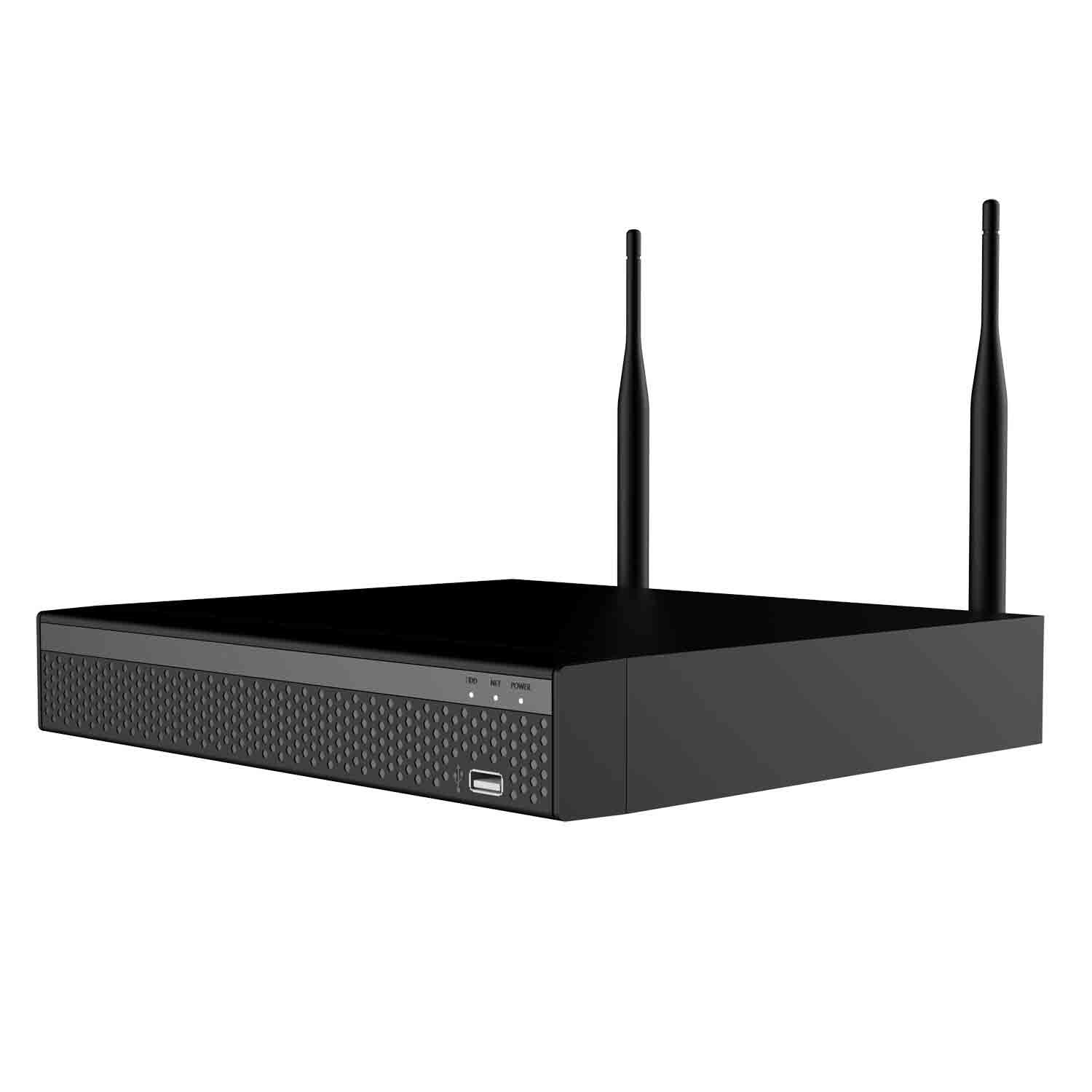

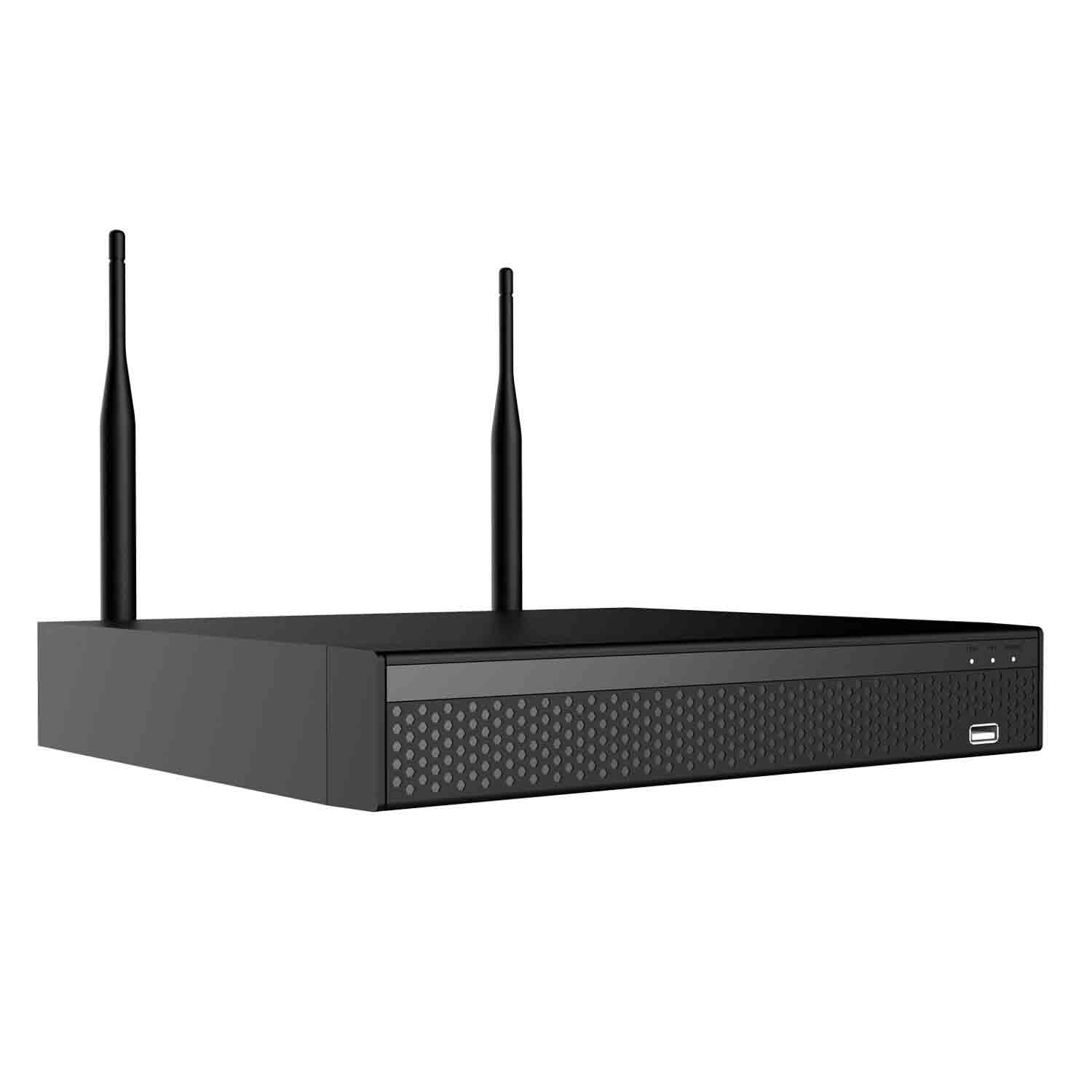

NVR Features

  • 4CH IP Video Input
  • HDMI & VGA Output
  • Up to 6TB HDD
  • 2 WIFI Antenna
  • 300 meters (Line of Sight)
    (Significantly reduces with obstacles, wifi range with 1 wall approx 30m)

Download

Bitvision User Manual (PDF)

What's Included

  • 1 x Wifi NVR
  • Optional HDD
  • 4 x Cameras
  • 1 x 12v 2Amp NVR PSU, 4x 12v 0.5Amp Camera PSU
  • 1 x USB Mouse
Camera
Image Sensor 1/2.5" High-resolution CMOS Sensor
Resolution 5MP
Effective Pixels 2704(H) x 1950(V)
Compression H.264/H.264+/H.265/H.265+
Electronic Shutter Time PAL 1/25-1/10000Sec;
S/N Ratio More than 52dB
Scanning System Progressive
Video Output Wireless network
Reset Button Yes
Lens Type
Focus Length 3.6mm
Lens Type Fixed
Pixels 5MP
Night Vision
Infrared LED 42μ x 2PCS
Infrared Distance up to 25m
IR Status Auto Control
IR Power On Auto Control
Network
Protocol TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
Main Stream 1 2592*1944@1-15fps (default resolution:2592*1944/frame rate:15fps/bit rate:1.8Mbps)
Sub Stream 1 1440*1080@1-15fps (default frame rate:15fps/bit rate:1Mbps)
Wireless
Antena 3dbi
Wi-Fi Wi-Fi(IEEE802.11b/g/n)
WIFI Range No obstacles 300m Max.
(Significantly reduces with obstacles, wifi range with 1 wall approx 30m)
General
Operating Conditions -10 °C ~ 50 °C humidity 95% or less (non-condensing)
Power Supply 12 VDC
Power Consumption Max. 0.5Amp
Ingress Protection IP66
Material Metal
Dimensions 157(W) x 70(H) x 66(D)mm
Weight Approx. 650g
System
Main Processor ARM Cortex A7 Quad-core Processor
Operating System Embedded LINUX
Video
Input 4CH (3072×2592, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output 1 VGA, 1 HDMI
Audio
Input N/A
Output 1 Port RCA(Linear, 1kΩ)
Audio Bit Rate 64kbps
Audio Compression standard G711u, G711a, G726
Alarm
Input N/A
Output N/A
Motion Detection 4 Channel, MD Zones: 396 (22 × 18)
Trigger Events Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
Display
VGA Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split 4CH x D1 / 4CH x 1080P@15fps / 4CH x 1440x1080@15fps / 1CH x 1080P / 1CH x 3MP / 1CH x 4MP / 1CH x 5MP
Digital Zoom Yes
OSD Camera title, Time, Recording, Motion Detection
Recording
Video Compression H.264/H.265/H.264+/H.265+
Resolution 8MP(3072×2592), 5MP(2592×1944), 4MP(2688×1520), 3MP(2048×1536), 1080P(1920×1080), 960P(1280x960), 720P(1280×720), D1 (720×576/720×480)
Record Rate 8MP@4×15fp, 5MP@4×25fp,4MP@4x25fp,3MP@4×25fp,1080P@4×25fp, 960P@4×25fp,720P@4×25fp, D1@4×25fp
Record Mode Manual \ Timer \ Motion Detection
Playback & Backup
Local Sync Playback 1CH 8MP@15fps, 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
Decode Capability 4CH 1080P@20fps
Remote Sync Playback Yes
Search Mode ALL, Channel, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Fast play, Digital Zoom
Back up Network / USB (With usb hub)
Network
Interface 1 RJ45 10M/100M Adaptive Ethernet Interface
Incoming Bandwidth 28Mbps
Network Functions TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
Onvif Version Support Onvif 2.4
Web Browser IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software Support Windows 7/ Windows 8/Windows 10
Cloud Support(P2P) Yes
Smart Phone iPhone, iPad, Android, Android Tablet
Storage
SATA 1
Capacity Up to 6TB
External Interface
USB interface 2 x USB2.0
General
Power supply 12V DC 2A
Working temperature -10 °C ~ +55 °C
Dimensions 260mm × 215mm x 43mm
Weight Approx. 2Kg (without hdd)
