| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Effective Pixels |
1920(H) x 1080(V) |
| Min. Illumination |
0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Time |
1/25 s to 1/50,000 s |
| Lens |
6 or 12mm - Angle of View: 54.4° (6mm) or 24.4° (12mm) |
| Lens Mount |
M12 |
| Day & Night |
ICR |
| WDR |
120 dB |
| Synchronization |
Internal synchronization |
| Video Frame Rate |
PAL: 1080p@25fps |
| HD Video Output |
1 Analog HD output |
| CVBS Output |
1Vp-p Composite Output(75Ω/BNC) |
| S/N Ratio |
Over 52dB |
| Menu |
| Scene |
Indoor, Outdoor, Indoor1, LOW-LIGHT |
| Camera ID |
On/off (15 characters, position programmable) |
| AGC |
Support |
| D / N Mode |
Color / BW / EXT |
| White Balance |
ATW, AWC-SET, Indoor, Outdoor, Manual |
| Privacy Mask |
On / Off, maximum 8 zones |
| Motion Detection |
On / Off, maximum 4 zones |
| BLC |
Support |
| Anti-flicker |
On/off |
| Language |
English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic |
| Functions |
Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOMn |
| General |
| Operating Conditions |
-30 °C - 60 °C
Humidity 90% or less (non-condensing) |
| Power Supply |
12V DC |
| Power Consumption |
Max. 5W |
| Weather Proof Ratings |
IP66 |
| IR Range |
up to 80m |
| Communication |
Up the coax(need UTC controller)
Protocol: Pelco-C(Coaxitron) |

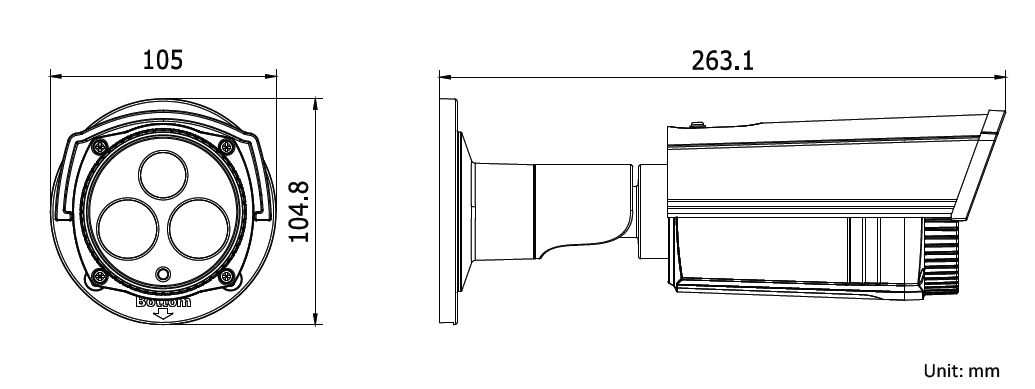

| Dimensions |
105 x 104.8 x 263.1mm |
| Weight |
Approx. 800g |
