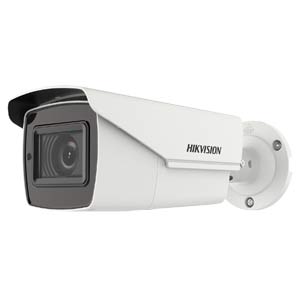

DS-2CE16H0T-IT3ZE Hikvision HD-TVI 5MP Motorised Zoom Bullet Camera with 40M EXIR Night Vision (PoC)
Product Code DS-2CE16H0T-IT3ZE

DS-2CE16H0T-IT3ZE Hikvision HD-TVI 5MP Motorised Zoom Bullet Camera with 40M EXIR Night Vision (PoC)

Login for Price
0 reviews | Write a review
3 Year Warranty
HD-TVI CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 5 Megapixel high-performance CMOS
  • Analog HD output, up to 5MP resolution
  • 2.7-13.5mm motorized vari-focal lens
  • True Day/Night, OSD Menu, 2D DNR, DWDR
  • EXIR technology, up to 40m IR distance
  • IP67 weatherproof
  • Up the Coax(HIKVISION-C Protocol)
  • PoC.af (Power over Coax)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

Compatible with Hikvision HD-TVI DVRs capable of 5MP or above recording.

Camera
Image Sensor 5MP CMOS Image Sensor
Effective Pixels 2560(H) x 1944(V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens Motorized VF lens 2.7 to 13.5 mm - Angle of View: 29.1° to 95.7°
Lens Mount φ14
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
Day & Night IR cut filter with auto switch
Video Frame Rate PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
Synchronization Internal synchronization
Menu
AGC Support
D/N Mode Auto / Color / B/W
Auto White Balance Auto/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC / PoC.af
Power Consumption Max. 7.8W
Weather Proof Ratings IP67
Material Front cover: Metal
Main body: Plastic
Bracket: Metal
IR Range up to 40m
Communication Up the coax
Protocol: HIKVISION-C (TVI output)

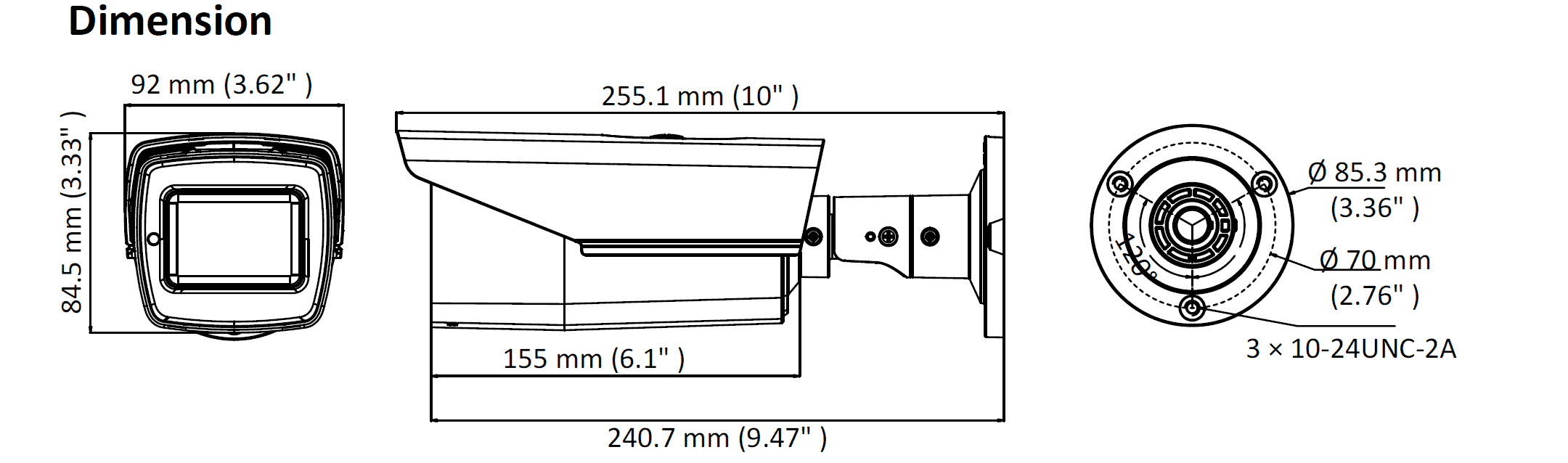

Dimensions 84.5 x 92 mm x 255.1 mm
Weight Approx. 685g
