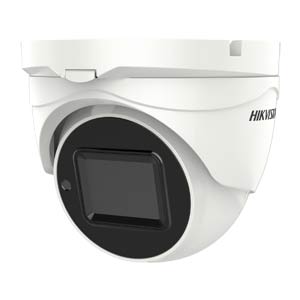

DS-2CE56H0T-IT3ZE Hikvision HD TVI 5MP Motorised Zoom Turret Camera with 40M EXIR Night Vision (PoC)

Product ID DS-2CE56H0T-IT3ZE

0 reviews | Write a review

Trade Only Item

DS-2CE56H0T-IT3ZE Hikvision HD TVI 5MP Motorised Zoom Turret Camera with 40M EXIR Night Vision (PoC)

Add Plug n Play Cable

Add Power Supply

Trade Only Item

Quantity

Free Shipping

Summary
Full Spec
Diagram

CCTV Camera Description

The DS-2CE56H0T-IT3ZE is a Hikvision 5MP motorised zoom turret camera for HD-TVI (coax) CCTV systems. It can be powered over the coax from a compatible PoC DVR.

The 2.7 to 13.5mm lens can be zoomed from the recorder, so you can set a wide or close view without going up a ladder. EXIR infrared night vision reaches up to 40m.

On a Hikvision PoC DVR there's no power supply needed at the camera. It's weatherproof (IP67).

Key features of DS-2CE56H0T-IT3ZE

5 Megapixel high-performance CMOS
Analog HD output, up to 5MP resolution
2.7-13.5mm motorized vari-focal lens
True Day/Night, OSD Menu, 2D DNR, DWDR
EXIR technology, up to 40m IR distance
IP67 weatherproof
Up the Coax(HIKVISION-C)
PoC.af (Power over Coax)

Download Hikvision Specification Sheet

Manufacturers Spec Sheet (PDF)

Compatibility

Compatible with Hikvision HD-TVI DVRs capable of 5MP or above recording.

Camera
Image Sensor	5MP CMOS Image Sensor
Effective Pixels	2560(H) x 1944(V)
Min. Illumination	0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time	1/25 s to 1/50,000 s
Lens	Motorized VF lens 2.7 to 13.5 mm - Angle of View: 29.1° to 95.7°
Lens Mount	Ø14
Adjustment Range	Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day & Night	IR cut filter with auto switch
Video Frame Rate	PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
Synchronization	Internal synchronization
Menu
AGC	Support
D/N Mode	Auto / Color / B/W
Auto White Balance	Auto/MWB
BLC	Support
DWDR (Digital Wide Dynamic Range)	Support
Functions	Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output	1 HD analog output
General
Operating Conditions	-40 °C - 60 °C Humidity 90% or less (non-condensing)
Power Supply	12V DC / PoC.af
Power Consumption	Max. 7.8W
Weather Proof Ratings	IP67
Material	Metal
IR Range	up to 40m
Communication	Up the coax Protocol: HIKVISION-C (TVI output)

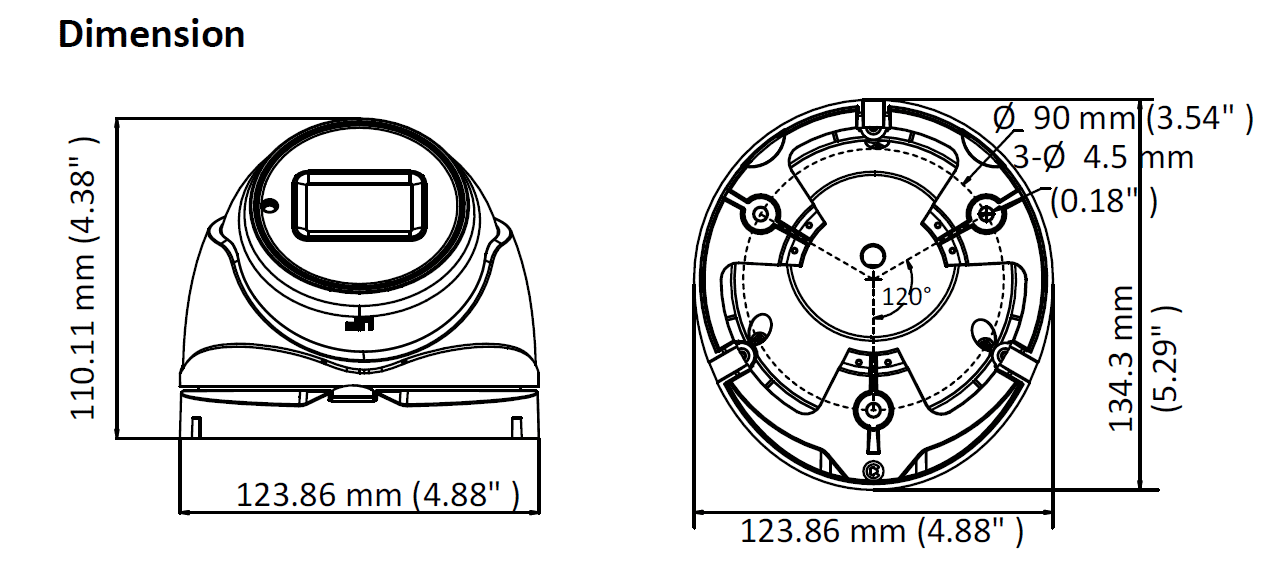

Dimensions	123.86 x 134.3 x 110.11 mm
Weight	Approx. 620g
