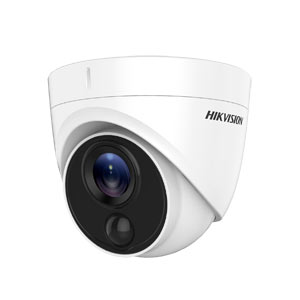

DS-2CE71H0T-PIRL Hikvision HD-TVI 5MP Turret Camera with 20M EXIR, PIR with White Light Alarm
Product ID DS-2CE71H0T-PIRL

DS-2CE71H0T-PIRL Hikvision HD-TVI 5MP Turret Camera with 20M EXIR, PIR with White Light Alarm

Trade Only Item
0 reviews | Write a review
3 Year Warranty
HD-TVI CCTV

  • Summary
  • Full Spec
  • Diagram

DS-2CE71H0T-PIRL Description

A great little camera which not only offers 5MP super high resolution with 20m IR night vision, but the DS-2CE71H0T-PIRL also has a built in PIR sensor and white light LED.

This has two great benefits, the PIR sensor will cut down on the false alerts that all CCTV suffers from (especially at night) and then the White Light will notify the intruder that they have triggered an alarm and of course light them up for anyone in the area to easily notice (of course if the white light was not wanted there is the option to disable it).

Please note, to use the PIR sensor as a recording trigger you will need to use one of the hikvision "HQHI-K" or "HUHI-K" model DVRs.

Key Features of the DS-2CE71H0T-PIRL

  • 5 Megapixel high-performance CMOS
  • 2560 × 1944 resolution
  • 2.8mm fixed lens - FOV 85°
  • PIR detection, visual alarm
  • EXIR 2.0, smart IR, up to 20 m IR distance
  • IP67 weatherproof
  • Up the Coax(HIKVISION-C Protocol)

Download

Manufacturers Spec Sheet (PDF)

Compatibility

Compatible with Hikvision HD-TVI DVRs capable of 5MP or above recording.

Camera
Image Sensor 5MP CMOS Image Sensor
Video Frame Rate PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
Effective Pixels 2560(H) x 1944(V)
Min. Illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 2.8mm - Angle of View: 85.5°
Lens Mount M12
Adjustment Range Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Visual Alarm Yes
Day & Night IR cut filter with auto switch
Synchronization Internal synchronization
Menu
White Light Alarm / Off
AGC Support
D/N Mode Auto / Color / B/W
Auto White Balance Auto/MWB
BLC Support
Language English
Functions Brightness, Contrast, Sharpness, Saturation, DNR, Mirror
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C - 60 °C
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4.5W
Weather Proof Ratings IP67
Material Enclosure: Plastic
Main body: Metal
IR Range up to 20m
Communication Up the coax
Protocol: HIKVISION-C (TVI output)

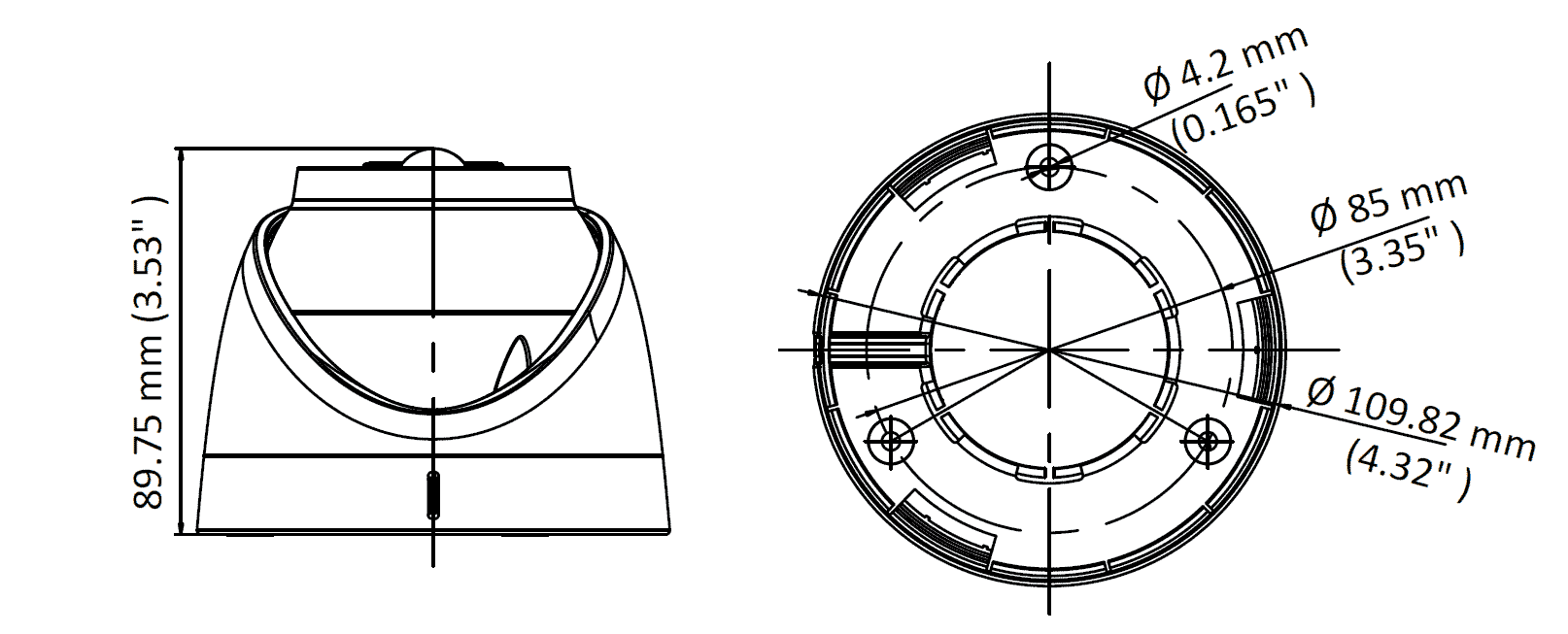

Dimensions Φ109.8mm x 89.75 mm
Weight Approx. 310g
