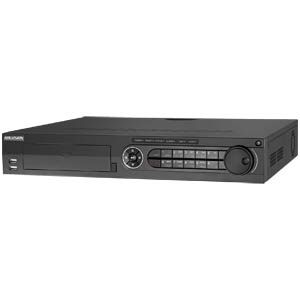

DS-7332HUHI-K4 Hikvision 32 Channel 8MP HD-TVI Hybrid DVR
Product ID DS-7332HUHI-K4

DS-7332HUHI-K4 Hikvision 32 Channel 8MP HD-TVI Hybrid DVR

Trade Only Item
Rating: 4/5 based on 1 review
3 Year Warranty
HD-TVI CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • H.265+/H.265/H.264+/H.264 encoding for the main stream
  • Up to 40ch 8MP ONVIF conformant IP cameras input (substituting 32ch of TVI)
  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
  • Full channel recording at up to 8MP resolutiong
  • 25fps recording on 1080P
  • HDMI output at up to 4K (3840 × 2160) resolution
  • Also includes 1 x BNC (CVBS) Video Output
  • Long transmission distance over coax cable
  • Support up to 16-ch synchronous playback
  • Supports POS triggered recording and POS information overlay
  • Internet & Smart Phone compatible

Download

Manufacturers Spec Sheet (PDF)

Compatibility

  • HD-TVI: Any Hikvision HD-TVI Camera (below 8MP)
  • AHD: Any AHD CCTV Camera (below 5MP)
  • Analogue: Any Analogue CCTV Camera
Video / Audio Input
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI Video Input 32CH; BNC interface (1.0Vp-p, 75 Ω)
Supported Camera Types Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVBS input
IP video input 8-ch (up to 40-ch) - up to 8MP - Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compression G.711u
Audio input / Two-way audio in 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio Output
CVBS output 1-ch, BNC(1.0Vp-p,75Ω), resolution:PAL:704x576
HDMI / VGA output VGA / HDMI-1: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI-2: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIFF
Frame rate Main stream:
8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps - 10 Mbps
Audio output 1-ch, RCA (Linear, 1KΩ)
Audio bit rate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Synchronous playback 16CH
Network Management
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk
SATA 4 SATA interface
Capacity Up to 10 TB capacity for each disk
eSATA Support

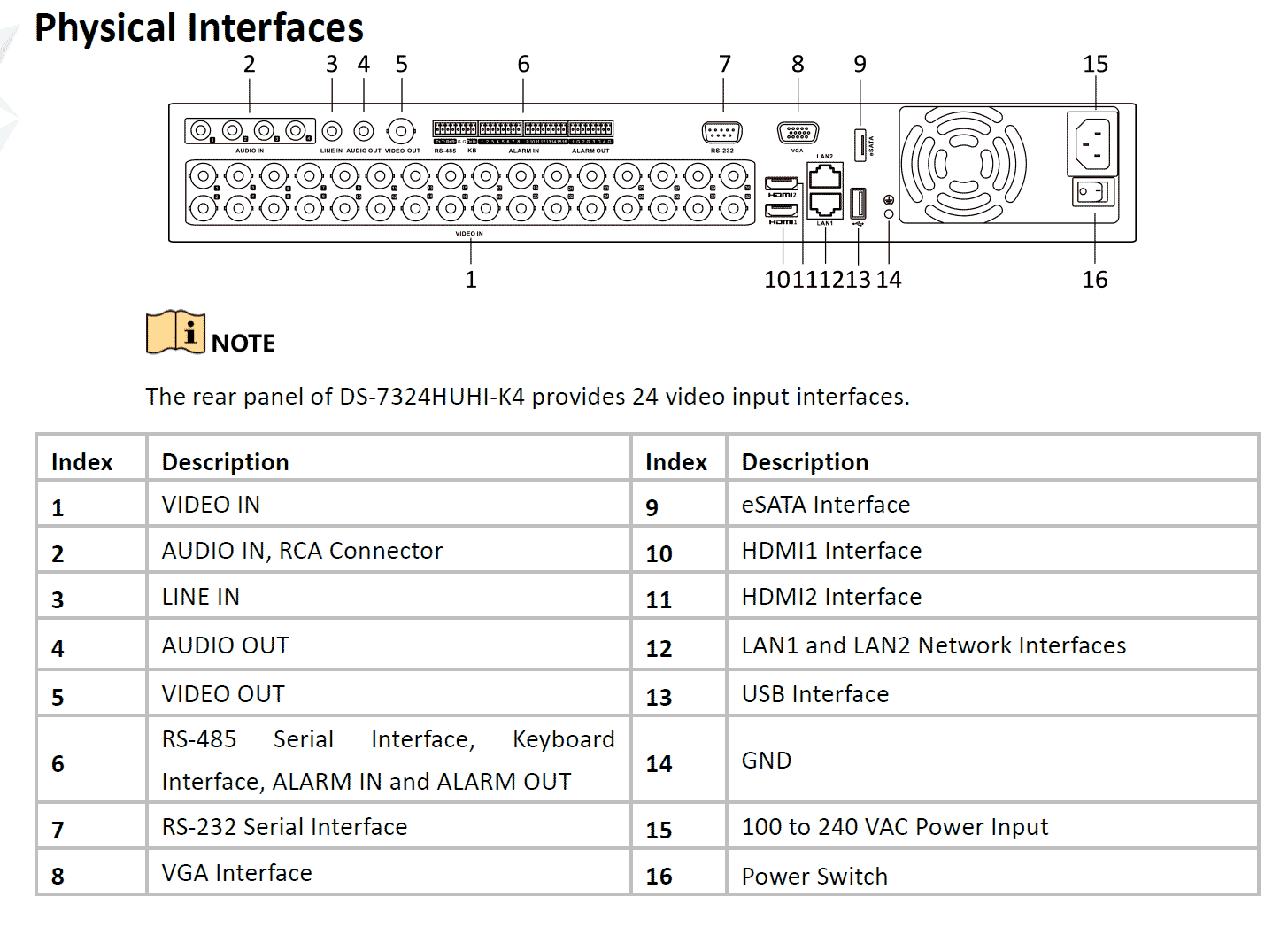

External Interface
Network interface 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Serial interface RS-232, RS-485 (full-duplex), Keyboard
USB interface Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm In/Out 16/4
General
Power supply 100 to 240 VAC
Consumption (without HDD) Max 74W
Working temperature -10 °C ~ +55 °C
Working humidity 10% ~ 90%
Dimensions (W x H x D) 440 x 390 x 70 mm
Weight Approx. 7Kg


1 Product Reviews - Average rating 4 / 5 (Show All)

Review product

32ch DVR

- 15/10/2018

Replace 2 x 16ch Avtech with one of these conveniently.
Highly recommended for high frame rate recording of cameras at 1080P or less.
4MP snd 3MP recording is ok but not great -
NVRs do a better job.
