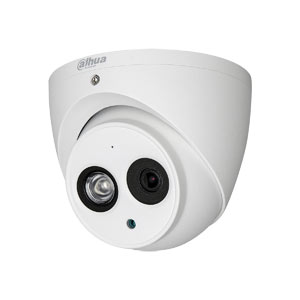

HAC-HDW1200EM-A Dahua Lite HD-CVI 1080P Eyeball Dome Camera with 50M Night Vision and Audio
Product ID HAC-HDW1200EM-A

HAC-HDW1200EM-A Dahua Lite HD-CVI 1080P Eyeball Dome Camera with 50M Night Vision and Audio

Login for Price
0 reviews | Write a review
3 Year Warranty
HD-CVI CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • Max 30fps@1080P
  • 3.6mm fixed lens (87.5°)
  • Max. IR LEDs length 50m, Smart IR
  • Built in Mic
  • IP67, DC12V

Download

Manufacturers Spec Sheet (PDF)

Compatibility

For use with HD-CVI recorders ONLY.

Sample Footage

Please make sure you select the highest resolution when viewing this footage.

Use the above video footage to get an idea of the quality of the image you can expect from this video - full 1080P, you can also listen to the audio - you will notice in once clip its not easy to make out what people are saying even thou they are only 4-5 metres away from the camera - if they were looking directly at the camera it would improve so the audio is mostly to get an idea of surrounding noises not so much picking up voices.

Camera
Image Sensor 1/2.7" 2Megapixel CMOS
Effective Pixels 1920(H) × 1088(V), 2MP
Scanning System Progressive
Electronic Shutter PAL: 1/25~1/100000s
Min. Illumination 0.02Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 50m (164feet)
IR On/Off Control Auto / Manual
IR LEDs 1
Lens
Focal Length 3.6mm
Angle of View H: 87.5º
Max Aperture F2.0
Focus Control N/A
Pan / Tilt / Rotation
Pan / Tilt / Rotation Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
Video
Resolution 1080P (1920 × 1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Interface
Audio Interface Built-in Mic
Eelectrical
Power Supply DC12V ±25%
Power Consumption Max 3.2W
Environmental
Operating Conditions -40°C~+60°C / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C~+60°C / Less than 90% RH
Ingress Protection & Vandal Resistance IP67
Environmental
Casing Aluminium

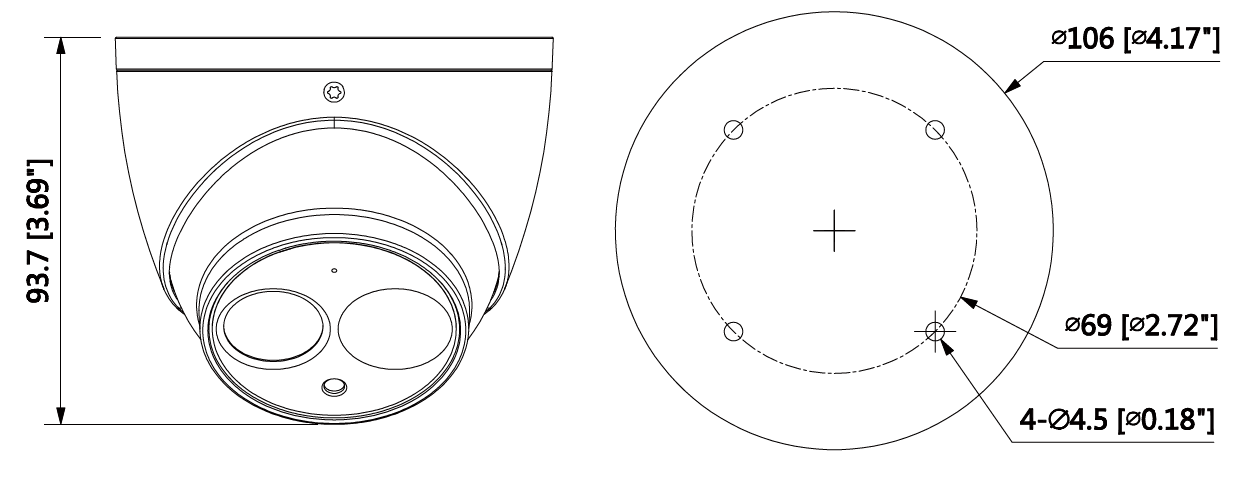

Dimensions Φ106mm × 93.7mm
Weight 0.44kg
