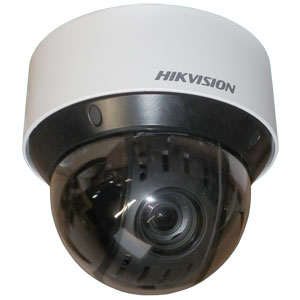

Hikvision 4MP IR Mini PTZ Camera with 25X Zoom
Product ID DS-2DE4A425IW-DE

Hikvision 4MP IR Mini PTZ Camera with 25X Zoom

Trade Only Item
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 1/2.5" progressive scan CMOS
  • Up to 2560 x 1440 resolution
  • Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON); B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
  • 25x optical zoom, 16x digital zoom
  • 120 dB WDR, 3D DNR, HLC, BLC
  • Up to 50 m IR distance
  • 12 VDC & PoE+ (802.3 at, class4)
  • Support H.265+/H.265 video compression

Download

Manufacturers Spec Sheet (PDF)

Specification
Camera Module
Image Sensor 1/2.5" progressive scan CMOS
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON); B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC Auto/Manual
Shutter Time 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16×
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
Lens
Focal Length 4.8 mm to 120 mm, 25× optical
Zoom Speed Approx. 3.2 s (optical lens, wide-tele)
FOV Horizontal field of view: 57.6° to 2.5° (wide-tele); Vertical field of view: 34.4° to 1.4° (wide-tele); Diagonal field of view: 64.5° to 2.9° (wide-tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F3.5
IR
IR Distance 50 m
Smart IR Support
PTZ
Movement Range (Pan) 360° endless
Pan Speed Configurable, from 0.1°/s to 300°/s; Preset Speed: 350°/s
Movement Range (Tilt) From -5° to 90° (auto-flip)
Tilt Speed Configurable, from 0.1°/s to 160°/s; Preset Speed: 200°/s
Proportional Zoom Support
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display Support
Preset Freezing Support
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Compression Standard
Video Compression Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264/MJPEG; Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile
H.265+ Support
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Audio Bitrate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
SVC Support
Smart Feature
Basic Event Detection Motion Detection, Video Tampering Detection, Alarm Input, Alarm Output, Exception
Smart Detection Audio Exception Detection, Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
Smart Tracking Manual Tracking, Auto Tracking, Event Tracking
ROI encoding Main stream, sub-stream, and third stream respectively support four fixed areas.
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
Max. Resolution 2560 × 1440
Main Stream 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720); 50fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720); 60fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Network
Network Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
Alarm Linkage Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users; 3 levels: Administrator, Operator and User
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Interface
Audio Interface 1-ch audio input and 1-ch audio output
Alarm Interface 2-ch alarm input and 2-ch alarm input
Network Interface 1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3 at, class4)
General
Power 12 VDC & PoE+ (802.3 at, class4), Max.:18 W (IR Max.5 W)
Working Temperature -30°C to 65°C (-22°F to 149°F)
Working Humidity ≤ 90%
Protection Level IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material ADC12, PC, PC+ABS, SUS304, POM

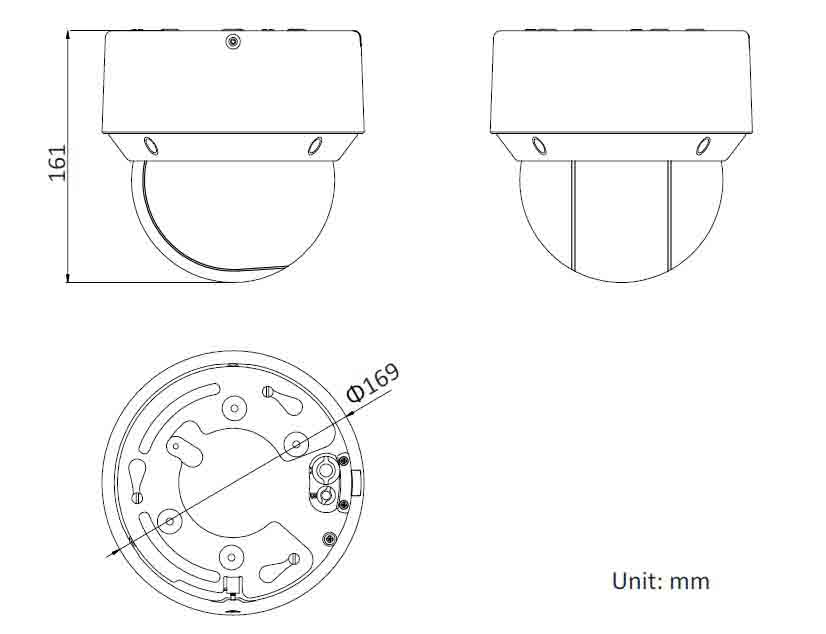

Dimensions Φ 169 mm × 161 mm (Φ 6.65" × 6.34")
Weight Approx. 2.45 kg (5.40 lb)
