Hikvision AX Pro 868MHz Light Level Wireless Control Panel Intruder Alarm #1Hikvision AX Pro 868MHz Light Level Wireless Control Panel Intruder Alarm #2Hikvision AX Pro 868MHz Light Level Wireless Control Panel Intruder Alarm #3Hikvision AX Pro 868MHz Light Level Wireless Control Panel Intruder Alarm #4
Product ID DS-PWA64-L-WE

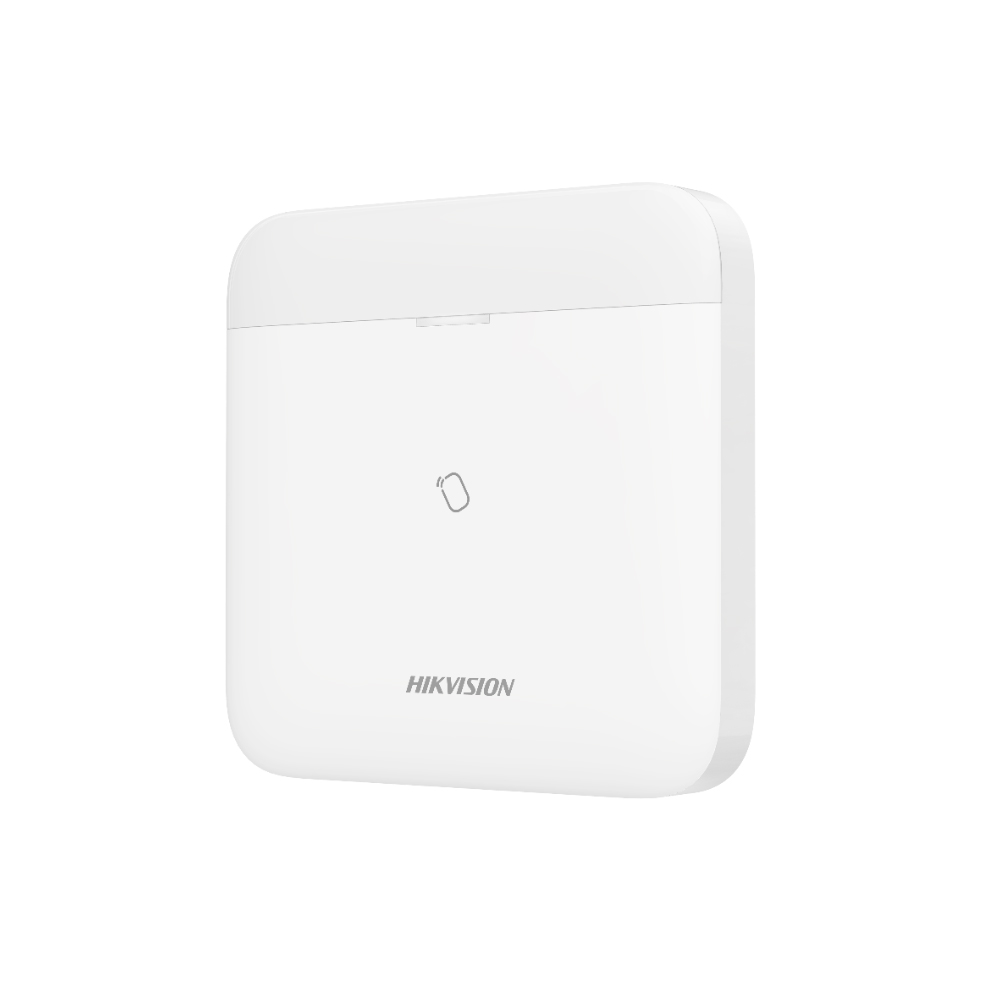

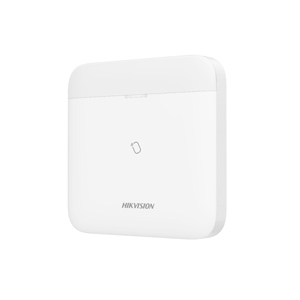

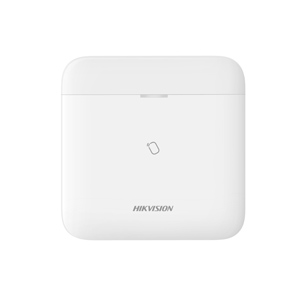

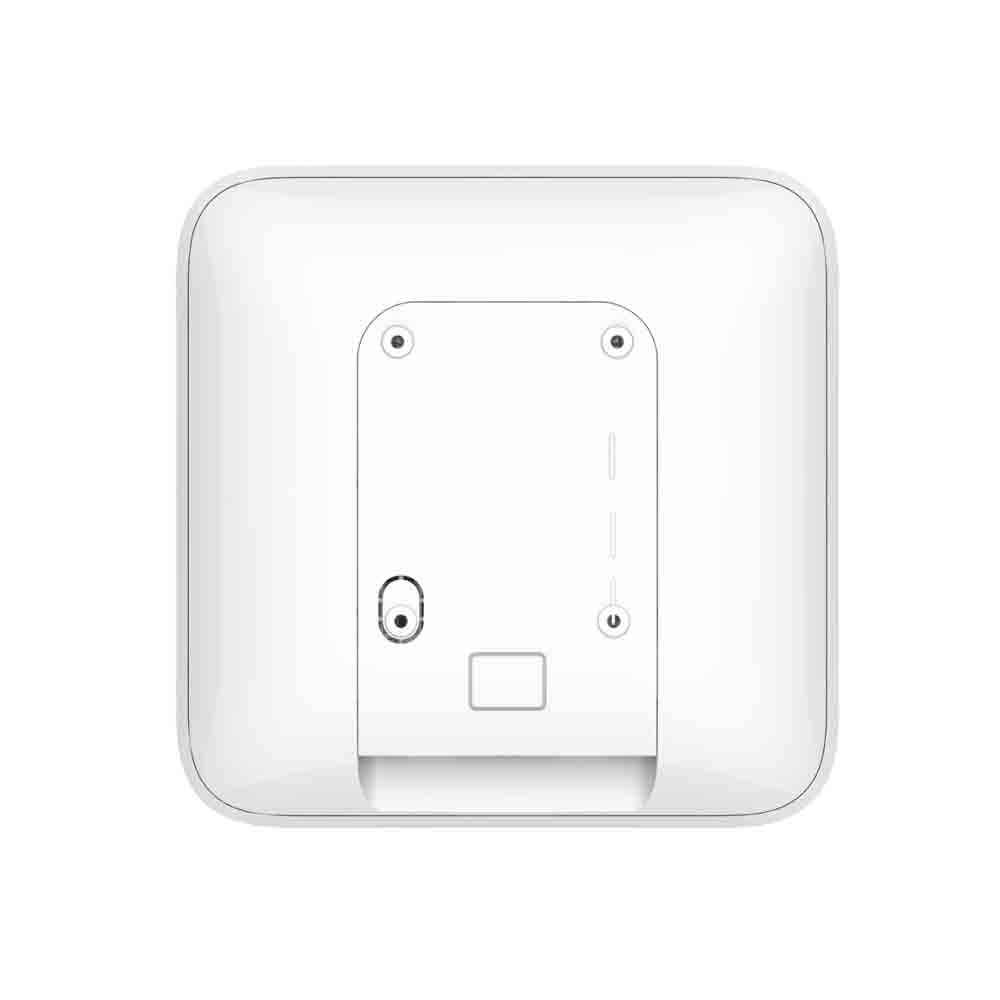

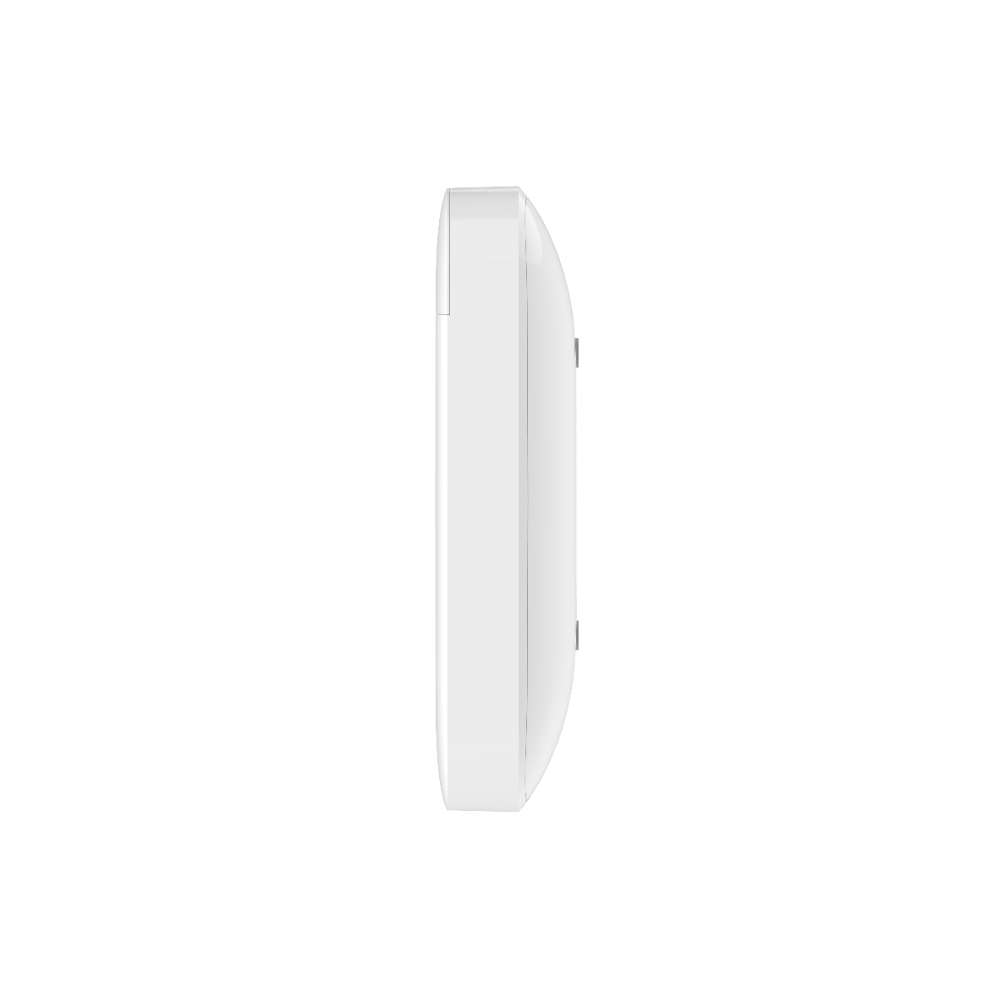

Hikvision AX Pro 868MHz Light Level Wireless Control Panel Intruder Alarm

Login For Prices
In Stock 0
0 reviews | Write a review

Free Shipping

  • Summary
  • Full Spec

Summary

AX PRO supports Wi-Fi, TCP/IP, and GPRS/3G/4G communication methods. It also supports ISAPI, Hik-Connect, and DC-09, which is applicable to the scenarios of market, store, house, factory, warehouse, office, etc.

Key Features

  • TCP/IP, Wi-Fi, and GPRS/3G/4G network
  • New generation wireless protocol: Tri-X
  • Long RF transmission distance
  • Two-way communication with AES-128 encryption
  • Connects up to 96 wireless zones/outputs, 48 wireless keyfobs, 4 repeaters, 6 sounders, 8 tag readers & keypads, and PIRCAM.
  • Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
  • Voice prompt
  • Configuration via Web client, mobile client, and Convergence Cloud
  • Hik-Connect and Hik-ProConnect configuration depends on the user access level
  • Pushes alarm notification via messages or phone calls
  • Views life videos from Hik-Connect
  • Alarm video clips via emails and APP
  • Uploads alarm reports to ARC
  • Supports LED indicator to indicates system status
  • 4520 mAh lithium backup battery
  • SIA-DC09 protocol, and supports both Contact ID and SIA data format

Download

Manufacturers Spec Sheet (PDF)

Basic
Frequency868Mhz
Wireless type2-way wireless
Wireless SecurityFrequency Hoping 128 AES Encryption
Wireless ZonesUp to 64
Wireless OutputsUp to 64
Wireless Tag Readers & KeypadsUp to 8
Wireless Sounders4
Wireless Keyfobs32
Wireless Repeaters2
Tags32
PIRCAMSupported
Onboard IP CAMERA Integration0
User
Installer1
Admin1
Users30
Key Software Features
Areas16
Voice promptSupported
Loudspeaker built inSupported
Tag reader built inN/A
LEDs StatusArm/Disarm, Alarm, Tamper, Fault, Cloud, Power
Memory Log stored5000
RS-232 outputSupported
Programming toolsHik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
Firmware upgradeAPP Auto/Manual
Arm ModesAway/Stay
Automatic Arm/Disarm TimersSupported
Forced Arming with Open ZonesSupported
Diagnostics of via the APP or WebSupported
Communication
LAN portSupported
Wi-Fi on boardSupported(2.4G)
GPRS on boardSupported
3/4G on boardN/A
SIM slotSingle
SMS notificationSupported
Alarm voice callSupported
ARC protocolSIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
User APP for operatingSupported
Installer APP for programmingSupported
Web server for maintenance (offline configuration)Supported
Hardware
Battery Stand by12 hours
Power SupplyBuilt in power supply
Battery packBuilt in on board Battery Li
HousingPlastic
Automation
SchedulesWall switch & Relay & Plug (Has time schedule)
Approvals
ENEN50131 Grade 2
CESupported
Rohs/Reach/WEEESupported
Others
Operation temperature-10 °C to +55 °C
Dimension(W x H x D)170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")
Weight557.5 g(19.7 oz)
