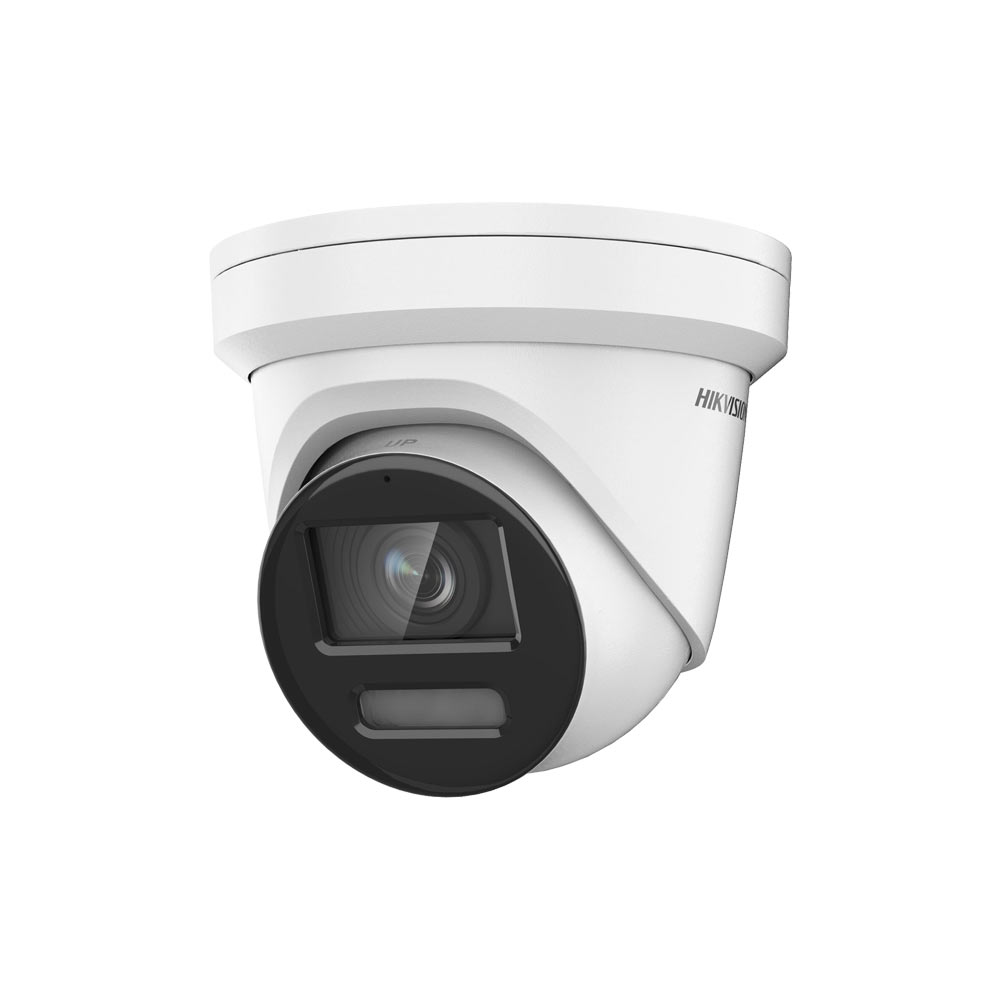

Hikvision DS-2CD2387G2-LU ColorVu 8MP Fixed Lens Full Time Colour Turret Audio Camera (2.8mm)
Product ID DS-2CD2387G2-LU

Hikvision DS-2CD2387G2-LU ColorVu 8MP Fixed Lens Full Time Colour Turret Audio Camera (2.8mm)

Trade Only Item
0 reviews | Write a review
3 Year Warranty
IP CCTV

  • Summary
  • Full Spec
  • Diagram

Key Features

  • 8MP Resolution, Max. 3840 × 2160 @25fps
  • 2.8mm fixed lens, FOV: 1092
  • H.265+, H.264+
  • 130dB WDR
  • Built-in mic
  • 12 VDC & PoE (802.3af, class 3)
  • Support microSD/SDHC/SDXC/TF card, up to 256 GB
  • Color:0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
  • Full time color

Download

Manufacturers Spec Sheet (PDF)

Specification
Camera
Image Sensor 1/1.2″ Progressive Scan CMOS
Min. Illumination Color:0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Speed 1/3 s to 1/100,000 s
Day & Night 24/7 Color imaging
Wide Dynamic Range 130dB
Angle Adjustment Pan: 0° to 360°, tlt: 0° to 75°, rotate: 0° to 360°
Lens
Focal length 2.8 mm
Aperture F1.0
Focus Fixed
FOV 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
Lens Mount M16
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection, object removal detection, unattended baggage detection
Exception Detection Scene change detection
Face Detection Yes
Max. Resolution 2688 × 1520
Main Stream 50Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50Hz: 25 fps (640 × 480, 640 × 360)
Third stream 50Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
ROI (Region of Interest) Support 1 fixed region for main stream and sub-stream
Audio (-U)
Environment Noise Filtering Yes
Sampling Rate 8kHz/16kHz/32kHz/44.1kHz/48kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users; 3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
Built-in Microphone Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power 12 VDC, 0.46 A, max. 5.5 W; PoE (802.3af)
Visible Light Range (White Light) Up to 30m
Protection Level IP67
Material Cover: metal, main body: metal

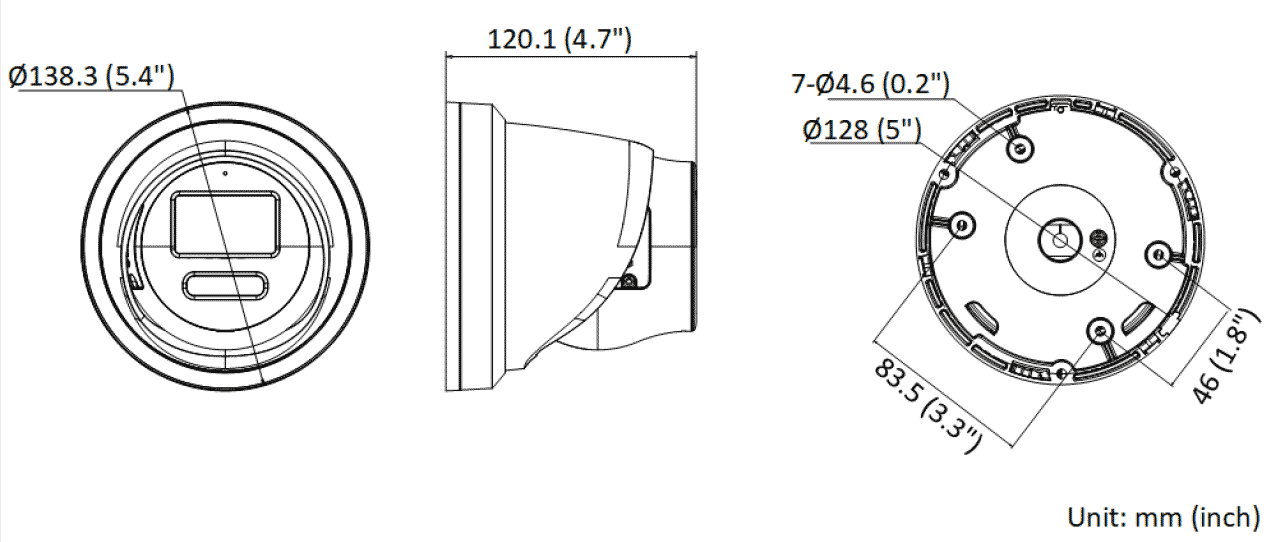

Dimension Ø138.3 mm × 120.1 mm (Ø5.4" × 4.7")
Weight Camera: 870g
