| Camera |
|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 x 2160 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day and Night | IR cut filter |
| Angle Adjustment | Pan: 0 to 360 degrees, Tilt: 0 to 75 degrees, Rotate: 0 to 360 degrees |
| Lens |
|---|
| Lens Type | Fixed focal, 2.8mm |
| Focal Length / FOV | 2.8mm, Horizontal: 108.8 degrees, Vertical: 56.4 degrees, Diagonal: 134.3 degrees |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 3.3m to infinity |
| DORI |
|---|
| Detect | 89m |
| Observe | 35m |
| Recognise | 17m |
| Identify | 8m |
| Illuminator |
|---|
| Supplement Light Type | White Light, IR |
| Supplement Light Range | Up to 30m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850nm |
| Video |
|---|
| Main Stream | 50Hz: 25fps (3840 x 2160, 3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720) |
| Sub-Stream | 50Hz: 25fps (1280 x 720, 640 x 480, 640 x 360) |
| Third Stream | 50Hz: 10fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360) |
| Video Compression | Main stream: H.265, H.264, H.264+, H.265+ / Sub-stream: H.265, H.264, MJPEG / Third stream: H.265, H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio |
|---|
| Audio Type | Mono sound, built-in arrayed dual-microphone |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Sampling Rate | 8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Environment Noise Filtering | Yes |
| Network |
|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF Profile S, Profile G, Profile T, ISAPI, SDK, ISUP |
| User/Host | Up to 32 users, 3 levels: administrator, operator, user |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client Software | iVMS-4200, Hik-Connect, Hik-Central |
| Image |
|---|
| Wide Dynamic Range (WDR) | 130 dB (scene-adaptive) |
| SNR | 52 dB or above |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Image Stabilisation | EIS |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface |
|---|
| Ethernet Interface | 1x RJ45 10M/100M self-adaptive |
| On-Board Storage | MicroSD/SDHC/SDXC card slot, up to 512 GB |
| Built-in Microphone | Arrayed dual-microphone |
| Event |
|---|
| Basic Event | Motion detection (human and vehicle target filtering), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance centre, trigger recording, trigger capture, send email |
| Deep Learning |
|---|
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting (human and vehicle target filtering) |
| Face Capture | Yes |
| General |
|---|
| Power Supply | 12 VDC (+-25%), max. 8.5W / PoE IEEE 802.3af Class 3, max. 11W |
| Material | Cover: Metal, main body: Metal |

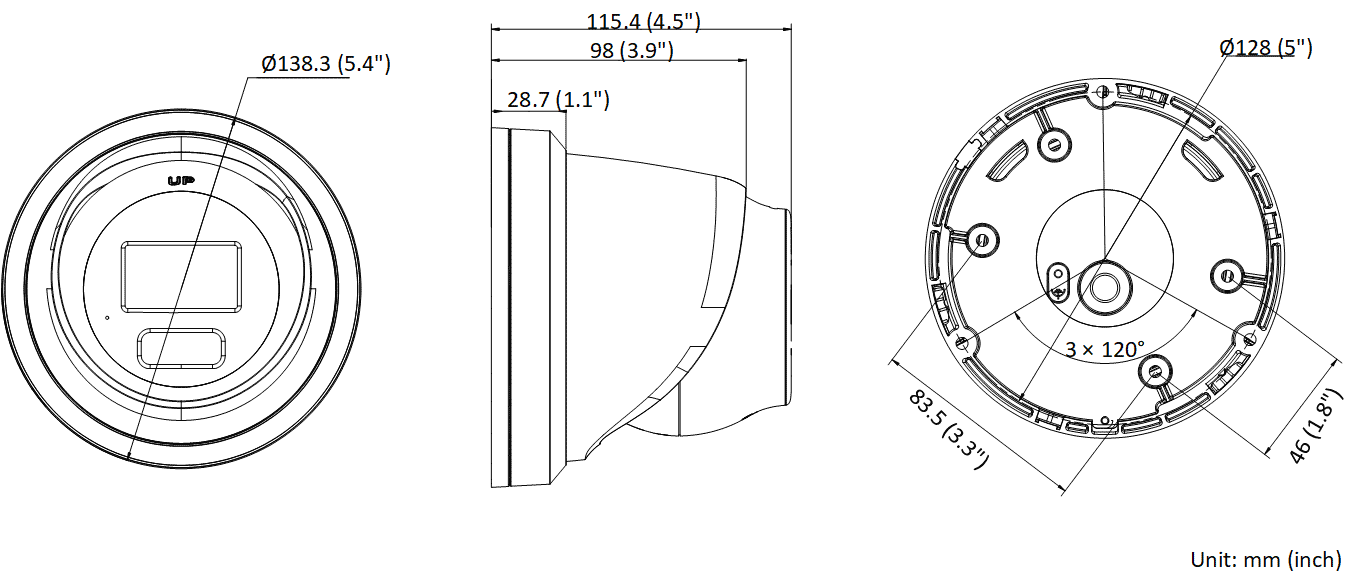

| Dimensions | 138.3mm x 115.4mm (diameter x height) |
| Weight | Approx. 750g |
| Operating Temperature | -30 degrees C to 60 degrees C, humidity 95-percent or less (non-condensing) |
| Protection | IP67 (IEC 60529-2013) |
| Anti-Corrosion | NEMA 4X (NEMA 250-2018) |
