Product ID DS-2CE72KF3T-E-B

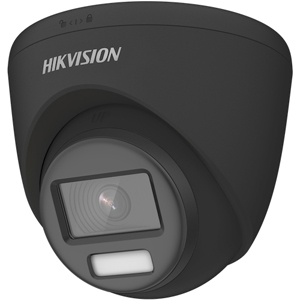

Hikvision DS-2CE72KF3T-E-B 5MP 3K Fixed Lens ColorVu PoC Black Turret Camera (2.8mm Lens)

Trade Only Item
0 reviews | Write a review
3 Year Warranty

Free Shipping

  • Summary
  • Full Spec
  • Diagram

Key Features

  • High quality imaging with 3K, 2960 × 1665 resolution
  • 2.8 mm, horizontal FOV 112°
  • Excellent low-light performance
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm, 3.6 mm fixed focal lens
  • Up to 40 m white light distance for bright night imaging
  • Water and dust resistant (IP67)
  • 24/7 color imaging with F1.0 aperture


Manufacturers Spec Sheet (PDF)

Image Sensor1/1.8" 3K CMOS
Signal SystemPAL/NTSC
Max. Resolution2960 (H) × 1665 (V)
Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Light AlarmSolid Light Alarm (White Light)
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Lens Type2.8 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 133°
Lens MountM16
Frame Rate3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps
Wide Dynamic Range (WDR)≥130 dB
White LightAuto/Off
Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Day/Night ModeColor
White BalanceAuto/Outdoor/Global/Manual
Image EnhancementWDR,BLC,HLC,Global,HLS
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR/2D DNR
Image SettingsBrightness,Contrast,Mirror,Smart Light,Anti-Banding
Video Output1 HD analog output
Motion Detection4 programmable motion areas
Operating Condition-40°C to 50°C (-40°F to 122°F), Humidity: 90% or less (non-condensing)
Power Supply12 VDC ± 25%/
*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
ConsumptionMax. 4 W
MaterialMain body: Metal, Enclosure: Plastic
White Light RangeUp to 40 m
DimensionΦ 109.98 mm × 98.27 mm (Φ 4.33" × 3.87")
WeightApprox. 380 g (0.84 lb.)
