About the DS-2CE72KF3T-LSYE-B

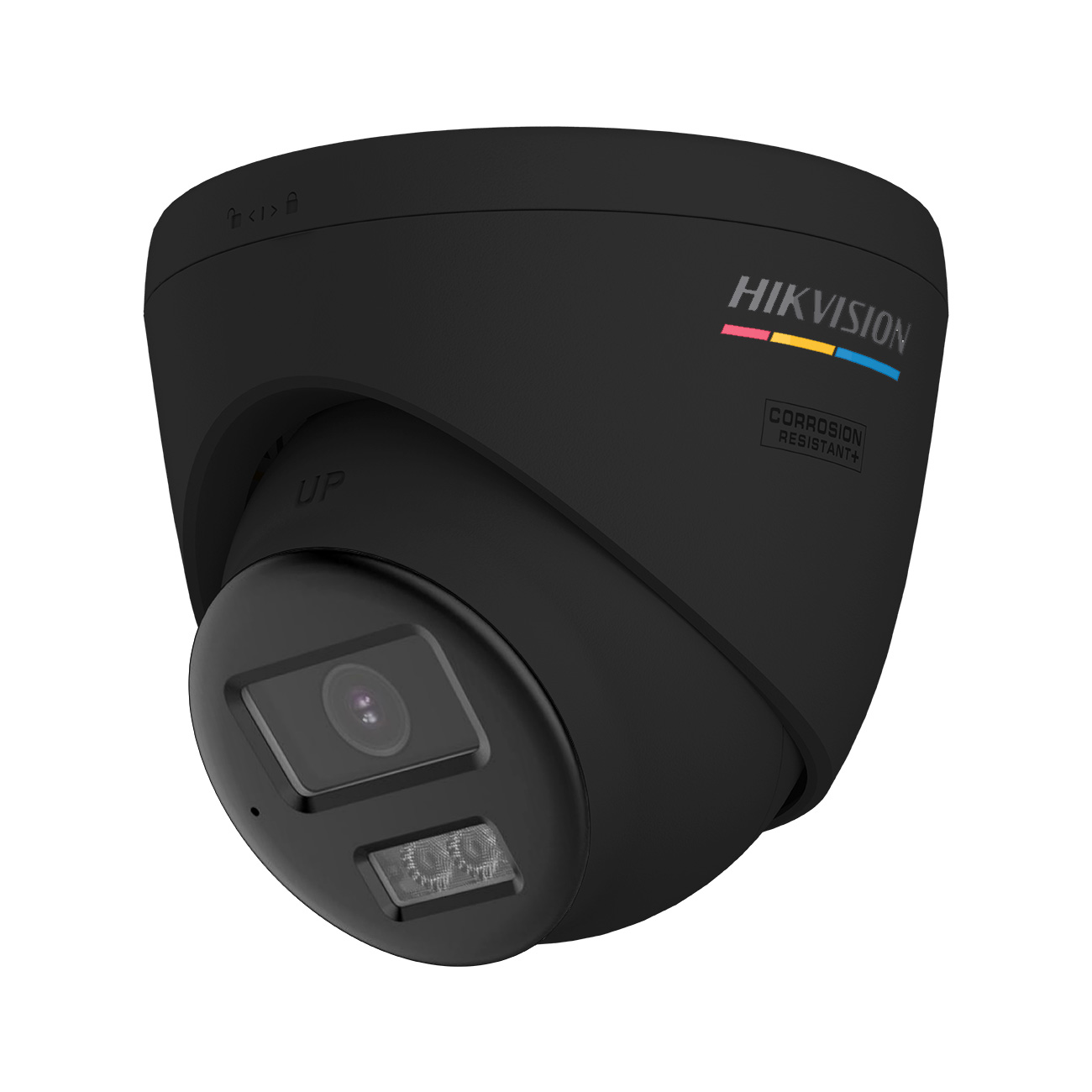

The Hikvision DS-2CE72KF3T-LSYE-B is the black housing variant of the DS-2CE72KF3T-LSYE, a 3K Smart Hybrid Light ColorVu fixed turret camera for Turbo HD analogue systems. Functionally identical to the white version in every respect, the black housing is the natural choice wherever a dark camera finish is needed - against dark soffits, grey or anthracite cladding, painted concrete structures, dark timber, or any installation where a white camera would be visually out of place or too conspicuous. Hikvision offer the LSYE specifically in black and grey housing options alongside white, reflecting the professional demand for housing colour matching in architectural and commercial environments.
The camera packs an impressive set of capabilities into a compact turret form. Smart Hybrid Light provides both IR and white light illumination to 40 metres each, switchable between IR-only, white light-only and auto modes - giving the installer and end user full control over whether night footage is captured in colour or monochrome. The 3K CMOS sensor delivers 2960 x 1665 resolution with 130dB true Wide Dynamic Range and 3D DNR for high-contrast scene handling, well above what Digital WDR models can achieve. The F1.0 aperture and 0.0005 Lux minimum illumination ensure strong colour performance in very low light conditions when white light mode is active.
The built-in microphone with audio over coaxial (AOC) simplifies audio installation by carrying sound back to the DVR over the existing video coax - no separate audio cable needed. The anti-corrosion housing construction provides enhanced durability in coastal, industrial and chemically aggressive environments, extending the service life of the camera beyond that of a standard outdoor unit. The 2.8mm lens provides a wide 105° horizontal field of view, and the 4-in-1 TVI/AHD/CVI/CVBS switchable output ensures compatibility with any analogue HD DVR.

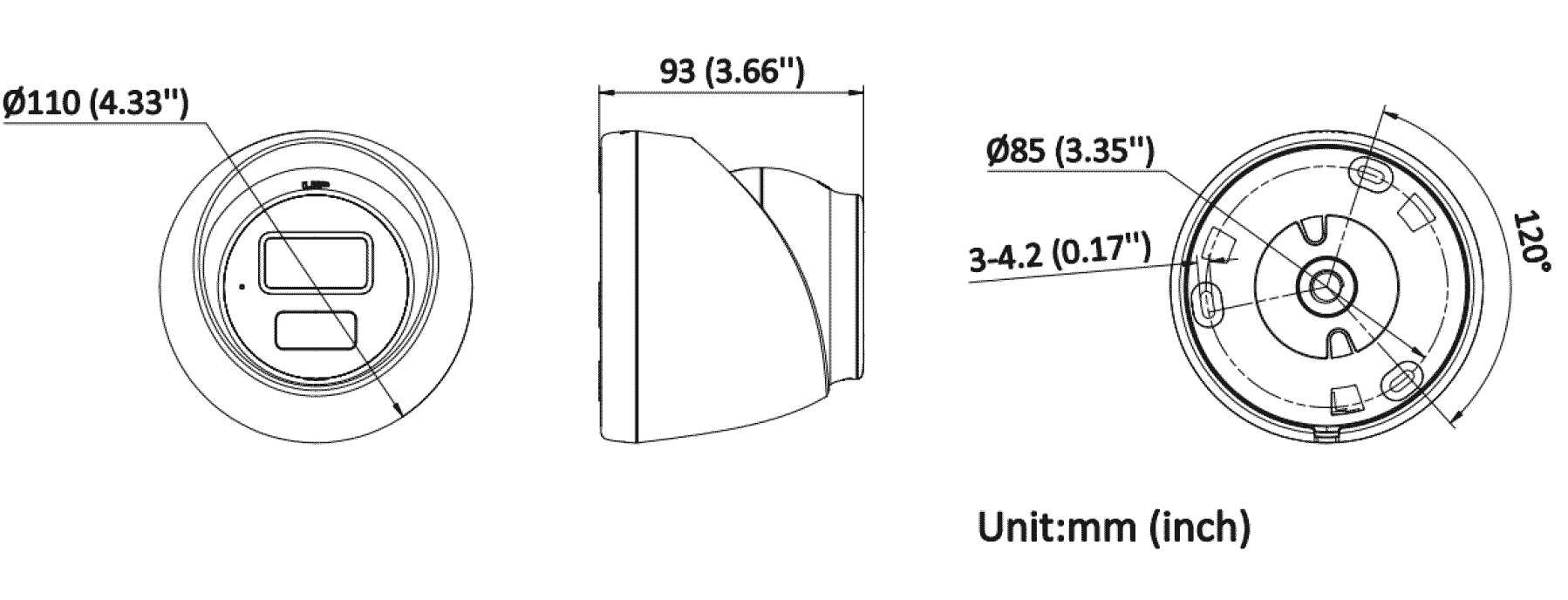

IP67 rated, -40°C to 60°C operating temperature, 12VDC powered with Hikvision-C coaxial control. Housing dimensions Ø109.98 x 98.27mm with full pan, tilt and rotation adjustment.
DS-2CE72KF3T-LSYE-B Key Features
- 3K Smart Hybrid Light ColorVu turret camera - black housing variant, anti-corrosion housing, switchable IR and white light illumination, each up to 40m
- 2.8mm fixed focal lens, 105° horizontal field of view
- Smart Hybrid Light - IR/white light/auto modes, full illumination flexibility
- ICR day/night filter - colour in daylight and white light mode, monochrome in IR mode
- 0.0005 Lux minimum illumination (F1.0, white light), 24/7 colour capability
- 3K 2960x1665 resolution, TVI: 3K@20fps, 4MP@25/30fps, 1080p@25/30fps, slow shutter up to 16x
- 4-in-1 signal output, switchable TVI/AHD/CVI/CVBS
- 130dB true WDR, 3D/2D DNR, BLC, HLC
- Built-in microphone, audio over coaxial (AOC), pick-up radius up to 5m
- Anti-corrosion housing (NEMA4X equivalent), IP67 weatherproof
- 12VDC power supply, Hikvision-C coaxial control, -40°C to 60°C operating temperature
- Compact black turret housing, Ø109.98 x 98.27mm
Download
Manufacturers Spec Sheet (PDF)
