Hikvision DS-2CE76H0T-ITMFS 5MP 30m IR Turret Audio Camera (AoC)

Product ID DS-2CE76H0T-ITMFS

0 reviews | Write a review

Trade Only Item

Hikvision DS-2CE76H0T-ITMFS 5MP 30m IR Turret Audio Camera (AoC)

Add Plug n Play Cable

20m

Add Power Supply

Yes

Trade Only Item

Quantity

Free Shipping

Summary
Full Spec

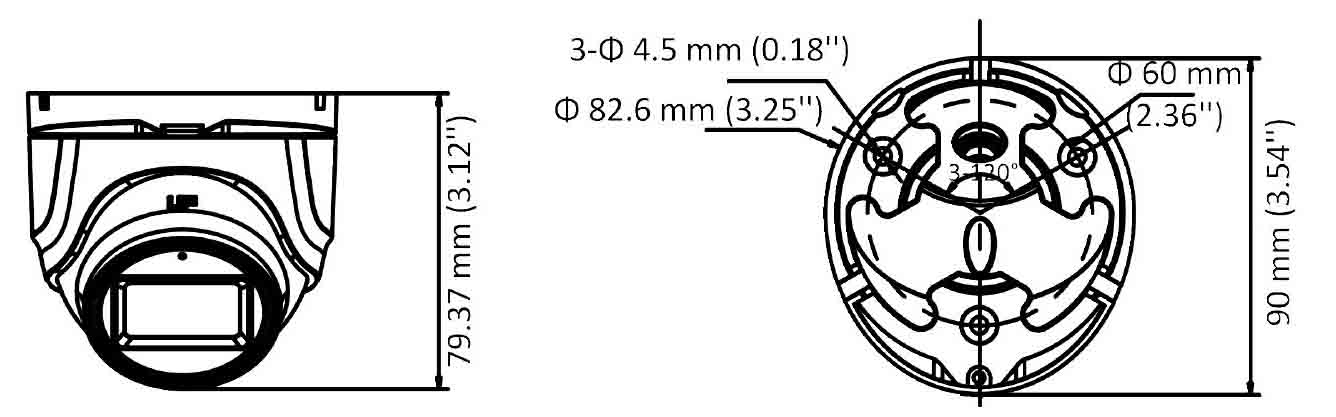

Diagram

About the DS-2CE76H0T-ITMFS

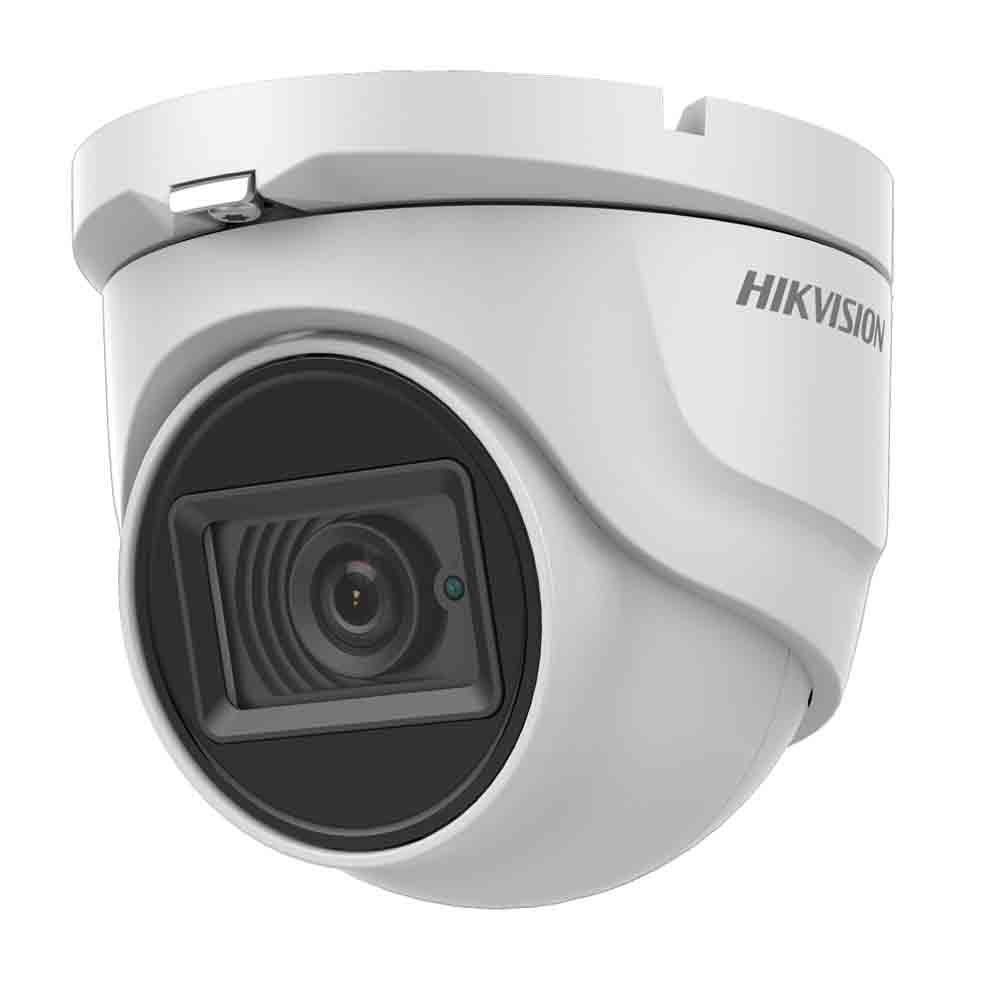

The DS-2CE76H0T-ITMFS is a Hikvision 5MP infrared turret camera with a built in microphone, for HD-TVI (coax) CCTV systems.

The 2.8mm lens gives an 85.5 degree view and infrared reaches up to 30m. The microphone sends sound down the coax with the video. Audio requires a DVR that supports Audio over Coax (AoC). The camera can also be switched to work with AHD, CVI or analogue recorders (video only). It's weatherproof (IP67).

Key Features

5 MP, 2560 × 1944 resolution
Digital WDR
2.8 mm lens, FOV: 85.5°
Smart IR, up to 30 m IR distance
Audio over coaxial cable, built-in mic
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP67

Download

Manufacturers Spec Sheet (PDF)

Specification
Camera
Image Sensor	5 MP CMOS
Signal System	PAL/NTSC
Resolution	2560 (H) × 1944 (V)
Frame Rate	TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps; CVI: 4MP@30fps, 4MP@25fps; AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps; CVBS: PAL/NTSC
Min. illumination	0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Lens	2.8 mm, 3.6 mm, 6 mm fixed lens
Field of View	2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.7°, diagonal FOV: 110.7°
Lens Mount	M12
Day & Night	ICR
WDR (Wide Dynamic Range)	Digital WDR
Audio	Built-in mic
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Menu
Image Mode	STD/HIGH-SAT
AGC	Yes
Day/Night Mode	Auto/Color/BW (Black and White)
White Balance	Auto/Manual
AE (Auto Exposure) Mode	DWDR/BLC/HLC/Global
Noise Reduction	2D DNR
Language	English
Function	Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output	Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply	12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption	Max. 3.7 W
Protection Level	IP67
Material	Metal
IR Range	Up to 30 m
Communication	HIKVISION-C
Dimensions	82.6 mm × 90 mm × 79.37 mm (3.25" × 3.54" × 3.12")
Weight	Approx. 289.5 g (0.64 lb.)
