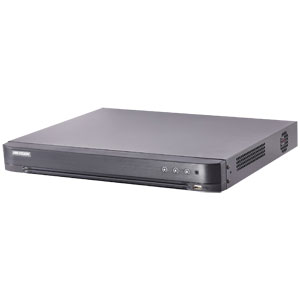

Hikvision 16 Channel TVI Turbo 4.0 8MP DVR (AoC)
Product ID DS-7216HUHI-K2-S

Hikvision 16 Channel TVI Turbo 4.0 8MP DVR (AoC)

Trade Only Item
0 reviews | Write a review
3 Year Warranty
HD-TVI CCTV

  • Summary
  • Full Spec

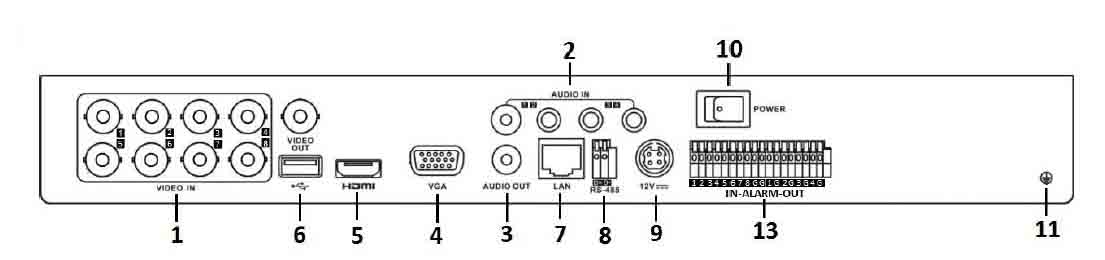

  • Diagram

Key Features

  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 8/16/32-ch IP camera inputs (up to 8 MP)
  • Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
  • Up to 10 TB capacity per HDD

Download

Manufacturers Spec Sheet (PDF)

Specification
Model DS-7216HUHI-K2
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution When 8 MP Lite mode is not enabled: 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

When 8 MP Lite mode is enabled: 8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF

Frame rate Main stream:

When 8 MP Lite mode is not enabled:

8 MP@8 fps/5MP@12 fps/4 MP@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

*: 8 MP@8 fps is only available for channel 1 of DS-7204HUHI-K2.

When 8 MP Lite mode enabled:

8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps

*: 8 MP Lite is only available for DS-7204HUHI-K2.

Sub-stream:

WD1/4CIF/CIF@25fps (P)/30fps (N)

Video bit rate 32 Kbps to 10 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input 16-ch (up to 32-ch), Up to 8 MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 16-ch
Network
Remote connection 128
Network protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface 1, RJ45 10M/100M/1000M, self-adaptive Ethernet interface
Auxiliary interface
SATA 2 SATA interfaces
Capacity Up to 10 TB capacity for each disk
Serial interface RS-485 (half-duplex)
USB interface Front panel: 1 × USB 2.0, Rear panel: 1 × USB 3.0
Alarm in/out 16/4
General
Power supply 12 VDC
Consumption (without HDD) ≤ 25 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimension (W × D × H) 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight (without HDD) ≤ 2 kg (4.4 lb)
