2MP HiLook 16ch HD CCTV Kit with 16x Bullet Camera with 20M IR, PIR Sensor and White Light Alarm

About the HLT1631B-2MP-PIR

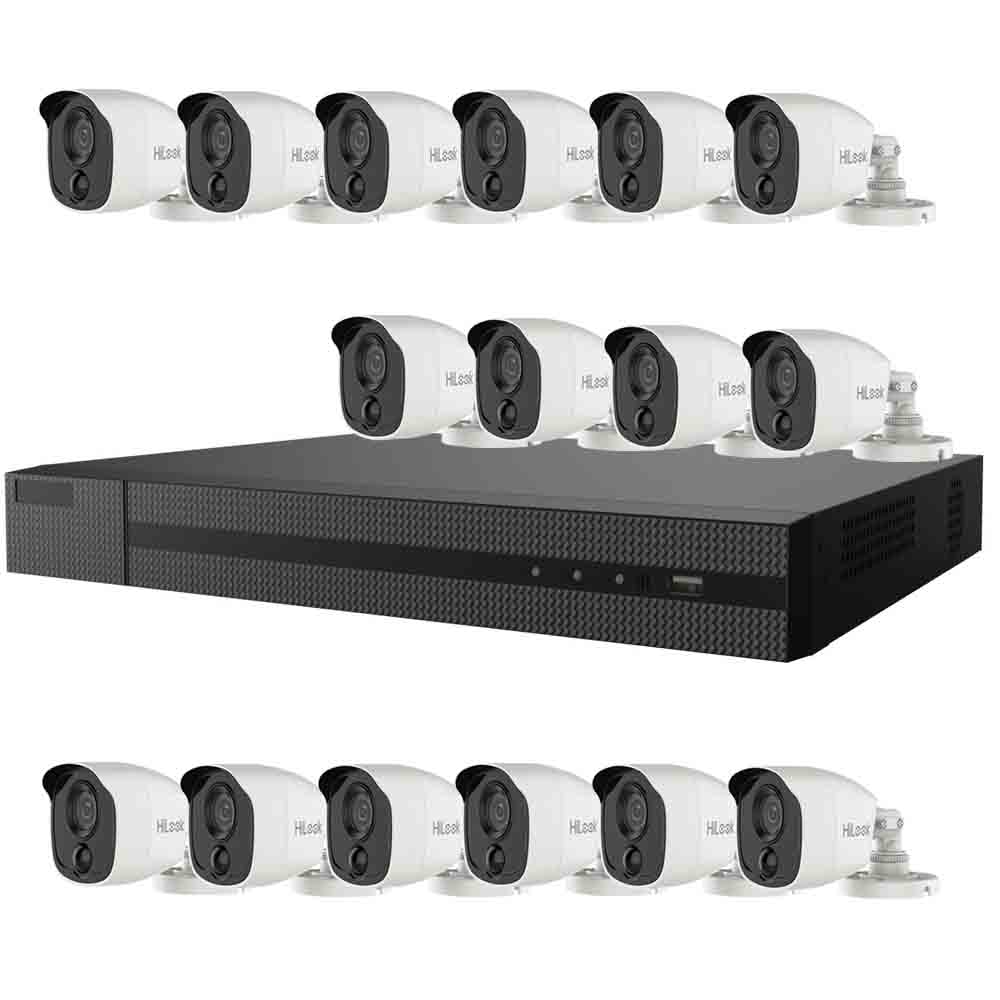

The HLT1631B-2MP-PIR is a HiLook by Hikvision 16 camera HD-TVI (HDoC) CCTV kit. It comes with a 16 channel DVR and sixteen 1080p bullet cameras with PIR sensors. As with all our kits, you can add cables, hard drives and a monitor as you need them.

The cameras capture 1080p Full HD video with a wide 106 degree view. A PIR sensor in each camera detects body heat, and a white light comes on as a warning when it's triggered. Infrared night vision reaches up to 20m and they're weatherproof (IP66).

The DVR records the cameras over standard coax cable and has HDMI and VGA outputs for a monitor or TV. View the cameras on your phone with the free HiLookVision app.

Camera Features

• 2 Megapixel High Performance CMOS
• 1920 × 1080 resolution
• 2.8mm fixed lens - FOV 106.4°
• PIR detection, visual alarm
• Day/Night switch
• up to 20m EXIR distance
• Switchable TVI / AHD / CVI / CVBS
• IP66 weatherproof

Camera Spec

Manufacturers Spec Sheet (PDF)

DVR Features

• 16 Channel DVR
• Support HD-TVI, AHD, HD-CVI and analog cameras
• Supports 2 x IP Camera
• 1080P resolution real-time recording
• 15fps recording on 4MP Lite
• 3MP Recording on channel 1/2/3/4
• VGA output at up to 1920 x 1080P resolution
• HDMI output at up to 4K (3840 × 2160) resolution
• Supports h.265+
• Support up to 16-ch synchronous playback
• Internet & Smart Phone compatible

DVR Spec

Manufacturers Spec Sheet (PDF)
